Home  > String wound filter cartridge  >  20 30 inch 100% polypropylene PP yarn wire wound water filter for water treatment 5 micron cartridge filter replaced
20 30 inch 100% polypropylene PP yarn wire wound water filter for water treatment 5 micron cartridge filter replaced

20 30 inch 100% polypropylene PP yarn wire wound water filter for water treatment 5 micron cartridge filter replaced

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Restaurant, Home Use, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Place of Origin:
Guangdong, China
Brand Name:
LVYUAN/OEM
Material:
Polypropylene/Fiberglass/Cotton, polypropylene fiber , absorbent cotton , glass fiber
Weight:
Reference
Size:
10"/20"/30"/40"/50"
Power:
0
Warranty:
Unavailable
Item:
10 20 30 inch 100% polypropylene PP yarn wire wound water filter
Core:
PP/SS
Micron:
1/5/10/20/30/50/75/100
Inner Diameter:
28mm / 30mm / OEM
Length:
5" / 10" / 20" / 30" / 40" / 50" / 60"
PP wound filter+PP core:
65℃
PP wound filter+SS:
120℃
Cotton filter+SS:
180℃
Glass fiber+SS:
180 - 300℃
After-sales Service Provided:
Online support
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Product Description

100% polypropylene PP yarn wire wound water filter for water treatment 5 micron cartridge filter replaced

Our string wound water filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.

Product name
100% polypropylene PP yarn wire wound water filter for water treatment 5 micron cartridge filter replaced
Material
Polypropylene fiber , Absorbent cotton , Glass fiber
Precision
1-100 micron
Outer diameter
28mm-30mm/OEM
Inner diameter
60mm-63mm /115mm /OEM
Length
9.75" 9.87" 10'' 20'' 30'' 40'' 50" 60" / OEM
Connector
DOE/215/222/226/Fin/OEM


Max operating temperature
PP with PP core : 60 °C
PP with SS core : 100 °C
Cotton with SS core : 120 °C
Glass fiber with SS core : 180 °C -- 300 °C
Detailed Images

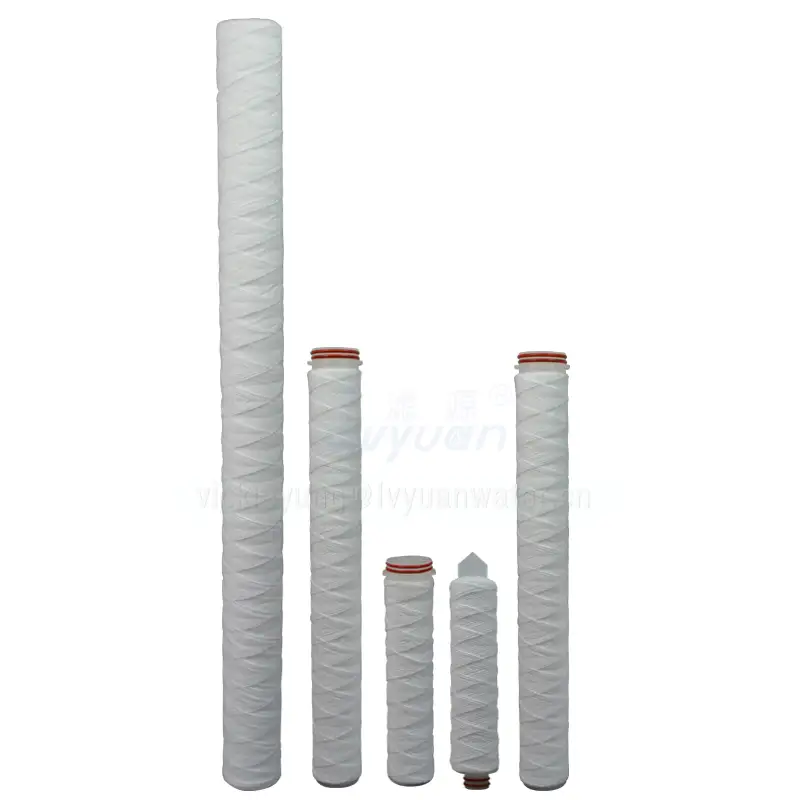

String wound PP sediment Filter with OEM size

This filter cartridge is made of textile fiber (polypropylene string, Absorbent cotton string, acrylic fiber yarn, fiberglass). According to the specified precess, it is winded tightly with the string in the polyporous core, structured by loose outer layers and tight inner layers, the filter cartridge porous outside it is big, inside it is small, it has the true deep filtration effect, it can remove the suspension, rust, particles, etc.

Jumbo PP yarn string wound water filter

Big jumbo string wound water filter is designed for the removal of sediment, sands, dirt and rust from raw water. 10 20 30 40 inch length size is available, outer diameter is 110mm, inner diameter 28mm/30mm.


The rated temperature is up to 165℉, polypropylene yarn construction for excellent chemical resistance.

Fiberglass wire wound filter cartridge

The fiberglass wire wound filter cartridge is a kind of deep filtration. It is made of glass fiber according to a specific winding process by different winding methods. The glass fiber wire wound filter adopts the structure of inner tight outer pine.
Applications:
Organic solvent filtration, food & beverage & wine, pharmaceutical industry, high & low temperature gas steam filtration.

Absorbent cotton string wound filter

Absorbent cotton water filter for organic solvents, water, oil, alkaline solution, beverages, medicine, etc.
The working temperature is ≤120℃
Non-toxic, odorless, no secondary pollution, and long service life.
Length: 10", 20", 30", 40"
Core: Stainless steel/SUS304 316L

Polypropylene string wound PP yarn filter

Filter media: Polypropylene
Micron: 1um, 5um, 10um, 20um, 25um, 50um, 75um, 100um
Polypropylene with PP core: ≤80℃
High dirt holding capacity, longer service life.
Fits to all the standard filter housings.
Wide chemical compatibility and high filtration micron.
Various filter media fit with various applications.
All kinds of adaptors are available.

Application

RO SEA WATER TREATMENT

POWER PLANT

BIOLOGY TECHNOLOGY

PETROCHMICAL INDUSTRY

BOTTLED MINERAL WATER

BEER & BEVERAGE FILTRATION
Packing & Delivery
Our Company
Certifications
Contact Us
The use of this product benefits both workers and manufacturers. It helps workers reduce working fatigue, and cuts down unnecessary labor costs for manufacturers. It can also filter particulates, microbial organisms, ferric oxide, and other impurities. Despite the richness of its functionalities, the product is very easy to use for people. They can easily understand how to operate once they have a look at the instructions. It can also filter particulates, microbial organisms, ferric oxide, and other impurities.
