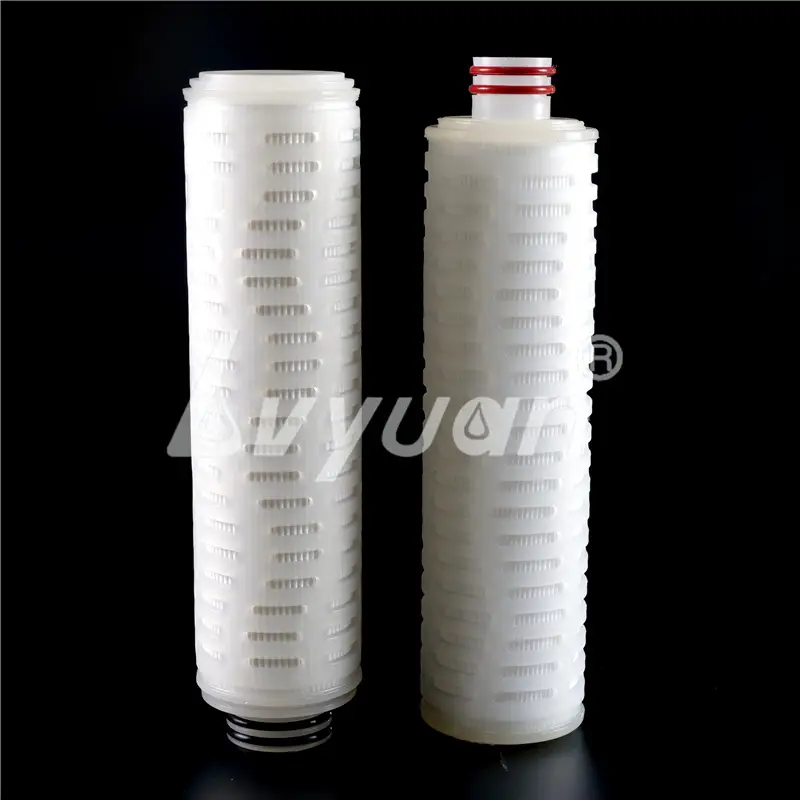

222/226/Flat/Fin/DOE PP PTFE PVDF Pleated Cartridge Nitrogen Gas Filter

Lvyuan Filter flat fin pleated cartridge nitrogen gas filter is designed for critical gas purification applications. Constructed from materials like polypropylene (PP), polytetrafluoroethylene (PTFE), and polyvinylidene fluoride (PVDF), these nitrogen filter elements offer exceptional chemical resistance and durability. These pleated nitrogen filter cartridges are available in various configurations—222 filter cartridge, 226 filter cartridge, flat, fin and DOE—to accommodate different installation requirements and ensure optimal performance.

Inquiry

Write a Review

222/226/Flat/Fin/Doe Ptfe Pvdf Pleated Cartridge Nitrogen Gas Filter

The filtration media of nitrogen gas filters are hydrophobic PP PTFE PVDF membrane. Our nitrogen filter cartridge bears excellent operation features, and its safety and thermal control specifications conform to the requirements of USP of the USA. Each nitrogen filter element has passed 100% integrity testing of bubble point and expanison flow so as to ensure to reach the bacterial retention requirements of USA HIME.

The pleated design of nitrogen gas filters maximizes filter surface area, enhancing filtration efficiency and extending service life. These filters can remove particles as small as 0.3 microns with high efficiency, making them ideal for ultra-fine filtration needs, such as 222 filter cartridge and 226 filter cartridge etc,. Specifically designed for nitrogen gas purification, these filters excel in removing particulates, aerosols, and moisture, ensuring the delivery of clean, dry gas essential for industries such as electronics manufacturing, pharmaceuticals and laboratory environments.

222/226/Flat/Fin/DOE PP PTFE PVDF Pleated Cartridge Nitrogen Gas Filter 8

Detail of Pleated filter cartridge

Application

222/226/Flat/Fin/DOE PP PTFE PVDF Pleated Cartridge Nitrogen Gas Filter 9

222/226/Flat/Fin/DOE PP PTFE PVDF Pleated Cartridge Nitrogen Gas Filter 10

1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media

Specification

Filter Media Option	PP filter cartridge	PTFE filter cartridge	Nylon 6 filter cartridge	PES filter cartridge	PVDF filter cartridge
Length	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40"
Micron Rate	0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron	0.2, 0.45 micron	0.2, 0.45, 0.65, 1 micron	0.1, 0.2, 0.45, 0.65 micron	0.2, 0.45 micron
End Cap	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Inner Diameter	28mm	28mm	28mm	28mm	28mm
Outer Diameter	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)
Jumbo Size	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm
Gasket/O ring material	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon
Effective filtration area	0.4-0.7m²	≥0.72m²	≥0.6m²	≥5m²	≥0.72m²
Max.working pressure difference	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃
Max.back pressure	0.28Mpa at 60℃	0.35Mpa at 60℃	0.35Mpa at 25℃	0.21Mpa at 25℃	0.21Mpa at 25℃
Max. working temperature	88℃ at 0.28Mpa, 60℃ at 0.42Mpa	142℃ at 0.276Mpa	49℃ at 0.21Mpa	140℃ at 0.28Mpa	80℃ at 0.173Mpa
Sterilizing temperature	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins

222/226/Flat/Fin/DOE PP PTFE PVDF Pleated Cartridge Nitrogen Gas Filter 11

222/226/Flat/Fin/DOE PP PTFE PVDF Pleated Cartridge Nitrogen Gas Filter 12

222/226/Flat/Fin/DOE PP PTFE PVDF Pleated Cartridge Nitrogen Gas Filter 13
