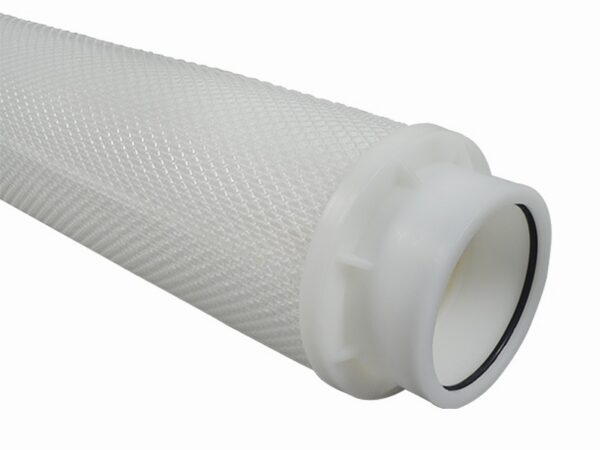

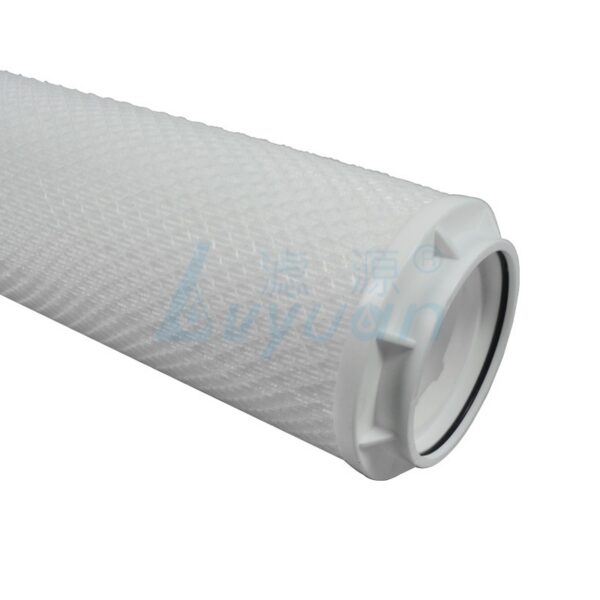

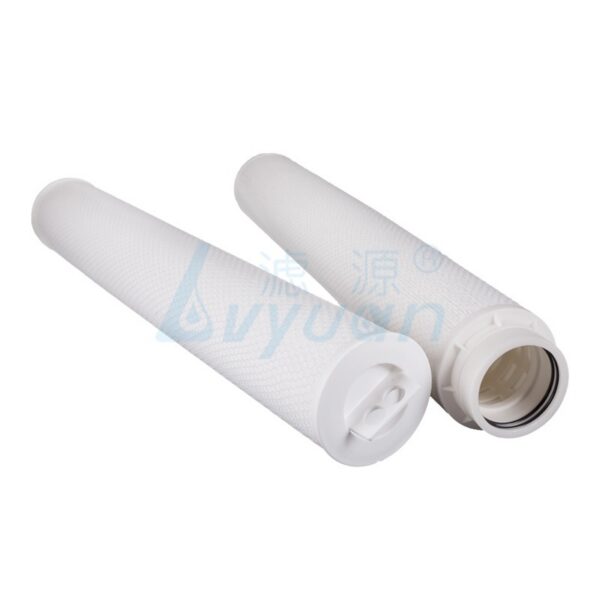

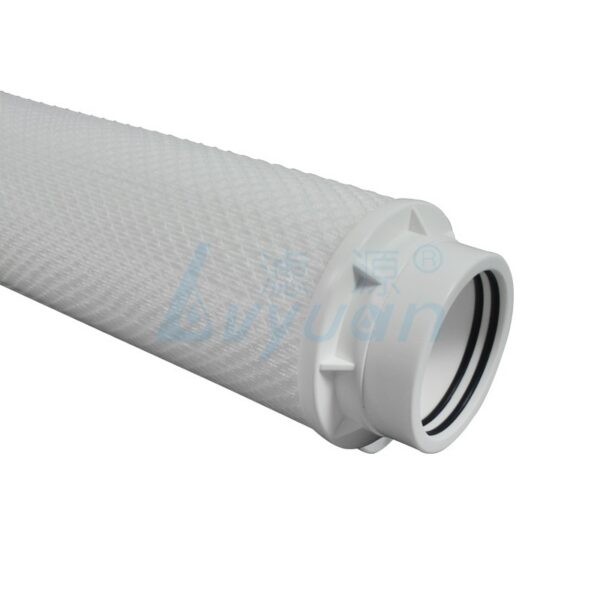

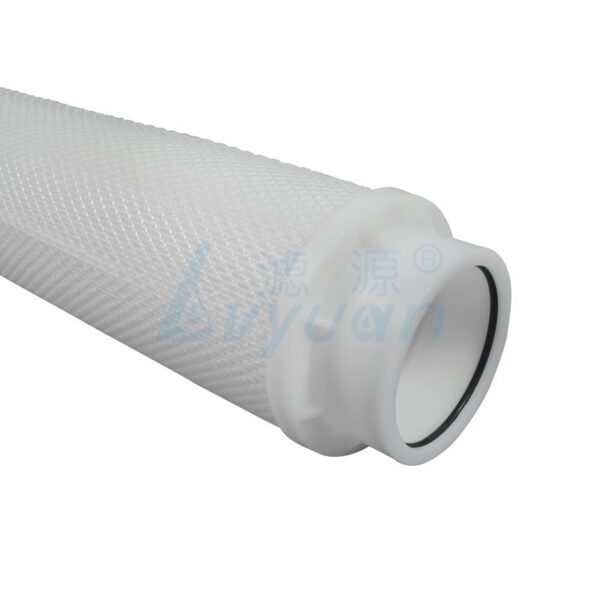

40 inch High flow pleated cartridge filter for industrial liquid filtration

40 inch High flow pleated cartridge filter for industrial liquid filtration

Model
LY-HFPK
MOQ
4 pcs
Payment
D/P, T/T, Alibaba Trade Assurance, paypal
Place of Origin
Guangdong, China
Brand
OEM/Lvyuan
Certification
ISO 9001
Delivery Time
Within 7 working days
Start Port
Guangzhou
Production Capacity
500 units/Month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

The LY-HFPK filter cartridge series is a replacement cartridge for the depth filtration and 2-1/2'' diameter cartridges for the high flow applications. Pre-filtration for RO system is an example. The Lvyuan filter pleated design with high flow area and contamination removal capacity.


This design helps end user to reduce capital investment, save space, and easy to change-out and etc. Up to 1300LPM flow rate per filter cartridge reduced the number of filter cartridges and the dimension of the filter housing required. Water treatment volume per super-high flow filter cartridge equals to 10x40'' long, 2-1/2'' diameter filter cartridges. Inner O-ring insures no by passing and handle design makes the installation easier.


  Product Feature

  • ◪    High dirt-holding capacity and long service life.

  • ◪   All contaminants can be removed within the cartridges because of the flow direction

  • ◪   Up to 110m³/h flow rate per one filter cartridge for water filtration

  • ◪   Max. 50% reduction of filter system

  • ◪   Multi membrane layers for large dirt holding

  • ◪   The sealing of o-ring assures the filtration integrity

  • ◪   Handle design quick installation, safe and reduce the cost


Product Parameter



Product NameHFPK Series high flow pleated cartridge filter replacement filter elelment(LY-HFPK)
Filter mediaPP/Polypropylene membrane
SupportPP/Polypropylene
Core/End capPP/Polypropylene
Seal materialSilicone/EPDM/VITON/PTFE/NBR
Outer diameter6”(152mm)
Length20”, 40”, 60”, Customized
Max.operating temperature82℃(Pleated PP)
Micron rating(μm)1, 4, 5, 10, 15, 20, 40, 70, 100



Product Details




part.1

★ 100% pure polypropylene PP materials for wide chemical compatibility, reduce the filter elements quantities to large water flow rate.


part.2
★ Thermally bonded polypropylene and support media prevent particle leaking out, the large water flow rate is in one high flow filter element, super cost efficiency in the pre-treatment process of RO water plant.



Product Applications



Municipal tap water, Prefiltration of RO, Pre treatment of sea water desalination


Condensate water filtration, hot water recovery in power generation
API, solvents, and water filtration in BioPharm market
The filtration of bottled water, high fructose, edible oil, soft drinks and milk
Paints and coatings, Petrochemical, refineries, CD/DVD, magnetic media, Petrochemical, Refineries
Microelectronics, film, fiber and resin
