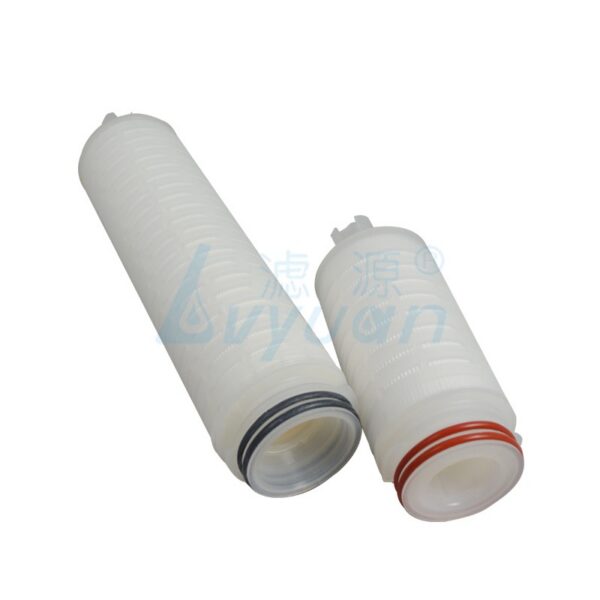

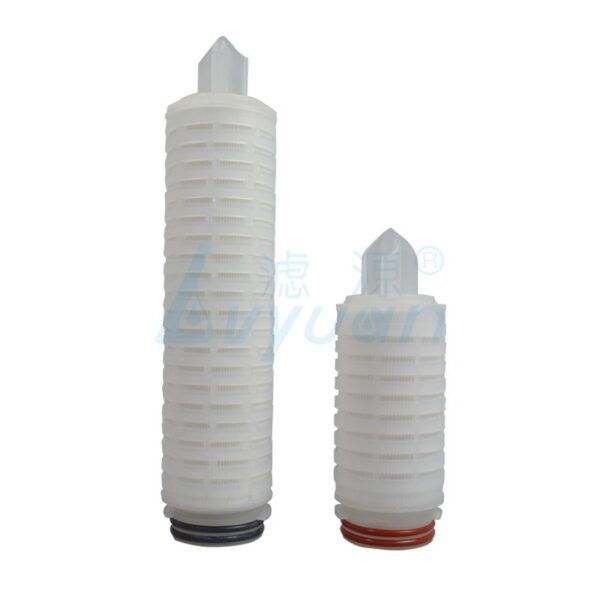

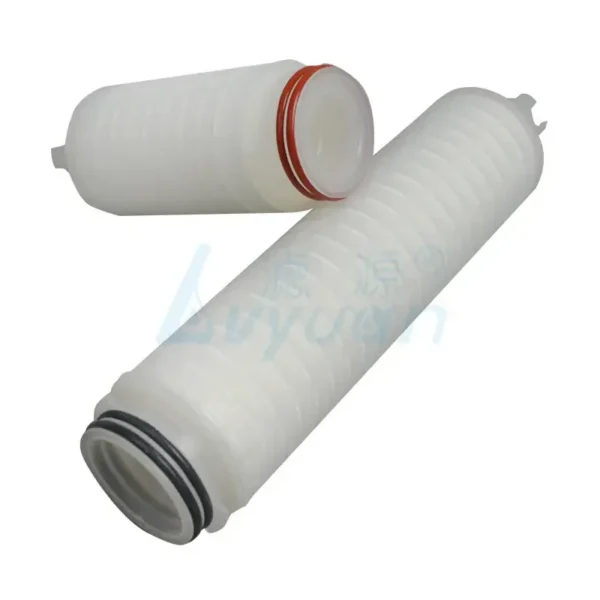

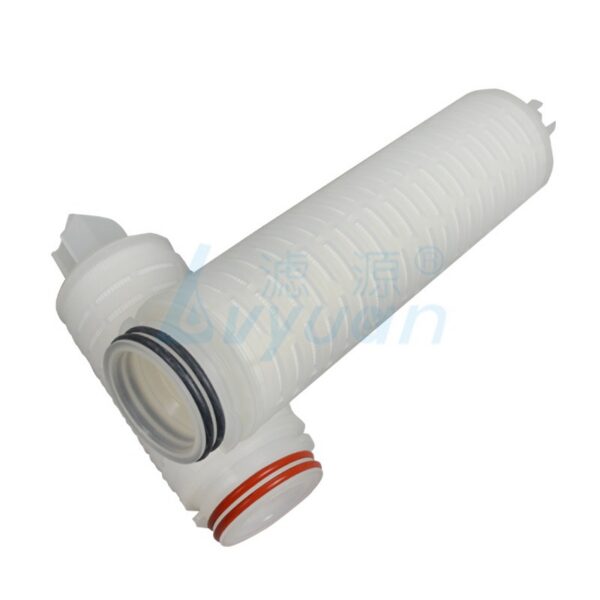

5 inch 10 inch Replacement  PP pleated water filter cartridge

5 inch 10 inch Replacement PP pleated water filter cartridge

Model
LY-PL-PP
MOQ
10pcs
Payment
T/T, Alibaba Trade Assurance, paypal
Place of Origin
Guangdong ,China
Brand
OEM/Lvyuan
Certification
SGS, ISO 9001
Delivery Time
Within 7 working days
Start Port
Guangzhou
Production Capacity
500 units/Month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications.

They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns.

The high surface area ensures long service life and low initial pressure drops. All cartridges hardware components are made from high purity polypropylene materials for use in critical process application. All the Cartridges are manufactured and assembled in a clean room environment to minimized the possibility of contamination.

This type of cartridges are available in a wide range of configurations to fit most commercially available filter housings.


  Product Feature

  • ◪    Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.

  • ◪   The multi layers PP membrane structure enables a graded filtration pore sizes and increases the dirt-holding capacity of the PP pleated water cartridge filters.

  • ◪   Large flow volume, low differential pressure and long service life.

  • ◪   Hydrophilic membrane with high flow.

  • ◪   Pleated design increased the filtration area for deep filtration.

  • ◪   Application of thermal-bonding technique, strong and no any pollution.

  • ◪   Full rage of removal microns ratings.

  • ◪   Graded pore density for high dirt holding capacity.

  • ◪   Common use in clean and sterilize with cabinet & steam with high pressure.


Product Parameter



Filter mediaPP/Polypropylene
SupportPP/Polypropylene
Core/End capPP/Polypropylene
Seal materialSilicone/EPDM/NBR/Viton/Teflon
Outer diameter2.7'' , customized
Length9.75'', 10'',  20'', 30'', 40'' customized
End capDOE, 215, 222, 226, FIN, FLAT, Stainless steel, or customized.
Filtration area0.4-0.7m² (10'')
Max.operating temperature88℃, 0.28Mpa. 60℃, 0.42Mpa.
Micron rating(μm)0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60



Product Details




part.1
Polypropylene end caps are thermally bonded to the media packs eliminating any need for adhesives which might react with or contaminate critical process fluids. Strong and no any pollution.

part.2
High efficiency 100% all polypropylene cartridges with hard polypropylene support inner core and outer core. We provide customized sizes to meet different customers’ required.

part.3
Different end caps to fits any filter housing and filtration industry, 100% all pure polypropylene pleated material without any organic binder.

part.4
DOE 20 inch PP material pleated filter cartridge with EPDM gasket, graded-porosity multi-layer.



Product Applications



Reverse osmosis water system prefiltration


Filtration of beverage
Filtration of mineral water
Filtration of organic solvent & ink
Filtration of pharmaceuticals
Filtration of biological
