Home  > Stainless steel filter housing  >  50 microns SS304 316L industrial glue liquid filter stainless steel cartridge filter machine with SS pneumatic diaphragm pump

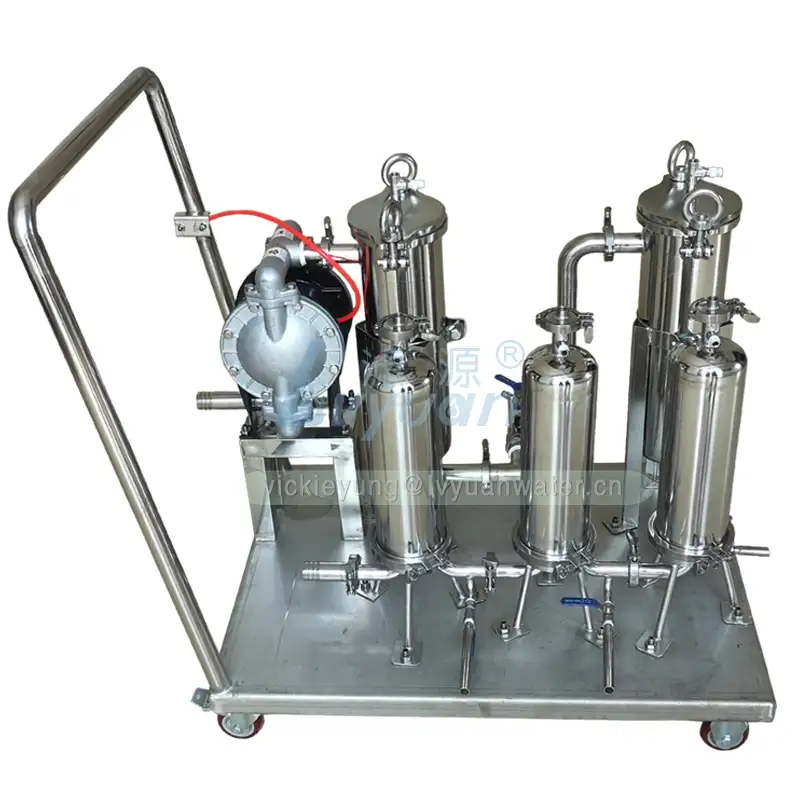

50 microns SS304 316L industrial glue liquid filter stainless steel cartridge filter machine with SS pneumatic diaphragm pump

50 microns SS304 316L industrial glue liquid filter stainless steel cartridge filter machine with SS pneumatic diaphragm pump

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Place of Origin:
Guangdong, China
Brand Name:
LVYUAN/OEM
Warranty:
1 Year
After-sales Service Provided:
Online support
Item Name:
Industrial 1 2 3 4 5 stage filter cartridge housing treatment
Material:
SS304 / SS316L
Filter bag material:
PE BAG/PP BAG
Bag filter quantity:
Single bag filter housing
Surface treatment:
Polished & Sandblast
Seal o-ring:
Silastic/NBR/EPDM/Viton
Top cap installed type:
Clamp type/Bolt type
Inlet & Outlet type:
Internal thread/Flange
Connector type:
222/226/DOE
Packaging method:
Export standard box

Packaging & Delivery

Selling Units:
Single item
Single package size:
75X50X75 cm
Single gross weight:
30.000 kg
Package Type:
50 microns SS304 316L industrial glue liquid filter stainless steel cartridge filter machine with SS pneumatic diaphragm pump: Packaging: Export standard box/As required
Lead Time :
Quantity(Units) 1 - 10 11 - 100 >100
Est. Time(days) 5 10 To be negotiated
Product Description

50 microns SS304 316L industrial glue liquid filter stainless steel cartridge filter machine with SS pneumatic diaphragm pump:

Completely oil filter system machine 1/2/3/4/5/6/7 stage stainless steel cartridge water filter housing with filter cartridge. Movable filter is composed of prefilter, oil pump and filtration unit, prefilter for a metal netting,  to prevent the large solid into the pump, oil pump is usually gear pump, to convey the unpurified  oil into the filtration device.The filter device is a small manual compression plate and frame filter press,  using special filter paper as a filter medium. Under the oil pump pressure help, the unpurified oil into the  plate & frame filter press, it will be a pure filter oil after it throughs the filter paper. The solid impurities trapped in the filter paper surface, a small amount of water is absorbed by the wool stoma of filter paper.The filtration  pressure is normal not over 0.3MPa, when there is too much deposition impurity on the filter paper surface,  the filter pressure is increased to 0.35 MPa, or when the moisture of filter paper absorption is close to saturation state, residual moisture in the oil filter no longer falls, it should be replaced the filter paper. When the oil has a  high viscosity,it can be preheating again, in order to reduce the viscosity for reusing.This kind of oil filter machine  can remove the solid impurities and a small amount of water, it is suitable for the general electric oil and  lubricating oil refining.


Product name
50 microns SS304 316L industrial glue liquid filter stainless steel cartridge filter machine with SS pneumatic diaphragm pump
Raw material
SUS304, SUS316L
Filter stage
1/2/3/4/5/6/7/8 stage, or customized.
Filter elements type
Filter cartridges, Filter bags.
Inlet & Outlet
Flange/Thread/Customized
Filtration microns
1 microns to 100 microns available.
Liquid flow type
Side Entry; Top Entry.
Seal material
EPDM/Silicone/Viton/PTFE
Surface treatment
Polished/Sandblast
Working temperature
0.5℉ to 380℉
Min./Max.
working pressure
100psi to 235psi
Housing design pressure
0.1-2.0Mpa
Pump
Air/liquid pump, booster pump, wheel pump, air pump, pneumatic pump, etc.
Production time
7 ~ 15 working days
Movable cart type
filter machine spec.
The configurations only for reference, it is depended on different customers' requirement.
1.SS filter housing
2.Discharge valve
3.Combination valve
4.Pressure gauge
5.Pump
6.Motor
7.Rough filter
8.Magnetic filter
9.In-line filter
10.Flow gauge
11.Electrical apparatus & elements
Bag Item
Flow rate
Filtration area (m²)
Length (mm)
Bag diameter (mm)
#1
20
0.25
410
180
#2
40
0.5
810
180
#3
6
1
210
102
#4
12
0.15
356
102
#5
25
0.3
870
175
FEATURE
1
Inlet & outlet size is 1/2", 3/4", 1 inch, easy installation.
2
Working pressure 8kg/0.8Mpa is supported.
3
Use the tap water pressure to provide power, no power consumption.
4
This is suitable for using in the water master switch, for the pre filtration system and RO system protection.
5
Resistance to strong acid and alkali.
6
Low cost, it fits different kind of filter elements.

2 stage bag filter system.

High flow double stage bag filter housing system with 7x18 inch bag liquid filter.

Single stage stainless steel filter.

High temperature water/liquid/gas bag filter housing with high quality stainless steel 304/316L.

Customized bag filter machine.

Top flange inlet design for high pressure operation. The machine inclusive of air or high pressure booster pump for options.

Double stage cartridge filter housing.

Covinient and simple operating,
the entire parts installed on the four-wheel go- cart.

Stainless steel dual filtration system.

Movable filter is composed of prefilter,
oil pump and filtration unit. High pressure
resistant and high precision.

Customized filter stage available.

Movable type 1/2/3/4/5 stage cart model stainless steel oil filter machinery.
Light and portable, low noise, safe and energy-saving.
Related Products

Model No.

Code

Bag size

In & Out
LY-BFH-01-B1
#1
180x450mm
1" & 2"
LY-BFH-01-B2
#2
180x810mm
1" & 2"
LY-BFH-01-B3
#3
105x210mm
1" & 2"
LY-BFH-01-B4
#4
105x345mm
1" & 2"

Model No.

Code

Bag size

In & Out
LY-BFH02-B1
#1
180x450mm
2" flange
LY-BFH02-B2
#2
180x810mm
2" flange
LY-BFH02-B3
#3
105x210mm
2" flange
LY-BFH02-B4
#4
105x345mm
2" flange

Model No.

Code

Bag size

In & Out


LY-BFH03-B1


#1


180x450mm


2" Flange


LY-BFH03-B1


#2


180x810mm


2" Flange
Application

1.It can be widely used in UF, RO, EDI security filtration and end- filtration, medicine injection, large infusion, eye drops,.
2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.
3. Electronics, semiconductor industry with high purity water preliminary filter, terminal filter.
4. Oil field back to water injection, boiler makeup water, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.
5. Drinking pure water, mineral water, fruit juice, tea beverages, health drinks filtering.
6. Liquor, wine, beer, yellow wine and other fruit wine filtration, pure draft beer aseptic filtration (alternative pasteurized)
7. The life and production waste water treatment and water recycling process of pre-treatment filtering or security filtering.
8. Biological engineering, oil refining, printing and dyeing, textile industry water supply and waste water treatment, research and test filter, etc.

RO WATER TREATMENT

BOTTLED MINERAL WATER

BIOLOGY TECHNOLOGY

SEA WATER DESALINATION

CHEMICAL INDUSTRY

FOOD & BEVERAGE

Our Company
Certifications
Contact


The pictures & configurations for the filter system is only for reference, it will be designed by different customers' requirements.   :-)


Pls kindly to send the inquiry below

or feel free to contact us by:


Ms. Vickie Yung

Mob./Whatsapp/Wechat: +86 15975359293

Skype: vickie9293


We can provide customized services to meet different customers' filter systems demand, pls kindly to send us your inquiry and tell us your requirement. Thanks~

Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is perceived as more vibrant and engaged generators of water filter cartridges with commercial value than their counterparts. Its unique density gradient construction maximizes efficiency and minimizes pressure drop. water filter cartridges has a cartridge filter manufacturer competitive advantage. Its unique density gradient construction maximizes efficiency and minimizes pressure drop.
