Lvyuan Filter stainless steel filter elements series for purify

Inquiry
Company Advantages
1. The manufacture of Lvyuan Filter includes several important stages. They mainly include mechanical drawing design, metal materials preparation, parts fabrication&welding, assembly, and commissioning. There is different porosity across the depth of its filter medium
2. The product has low heat conductivity and it is a good insulator. People can use it to serve in a dish or use it to hold hot water without worry of too hot to touch. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates
3. The product is not susceptible to corrosion. Its surface has been treated with a layer of mechanical paint which has a protective function. It can effectively control filtration precision
4. The product is robust in construction. It has a mechanically robust design that can withstand the operating conditions and environments to which it is exposed. It is available in a wide selection of micron ratings from 1 to 100 μm
5. The product features good heat dissipation. Its vents promote front-to-back airflow and keep it stay cool, which contributes to its smooth operation. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency
Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Pressure vessel
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan/OEM
Warranty:
1 Year
After-sales Service Provided:
Online support
Product name:
Micron Rate:
0.1 to 300 micron
OEM dimension:
Available
Length:
5", 10", 20", 30", 40", 50'', 60'' inch
Stainless steel Material:
304, 316, 316L
Interface form:
222,226,215, M36, M24, M22, M20 thread interface
Layer:
pleated/mesh cartridge filter
Usage:
gas, liquid filtration
Heat resistence:
- 200 -- 500 degree
Working pressure:
0.1 to 30Mpa
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day code 7 filter cartridge
Product Description
Lvyuan Filter stainless steel filter elements series for purify 11

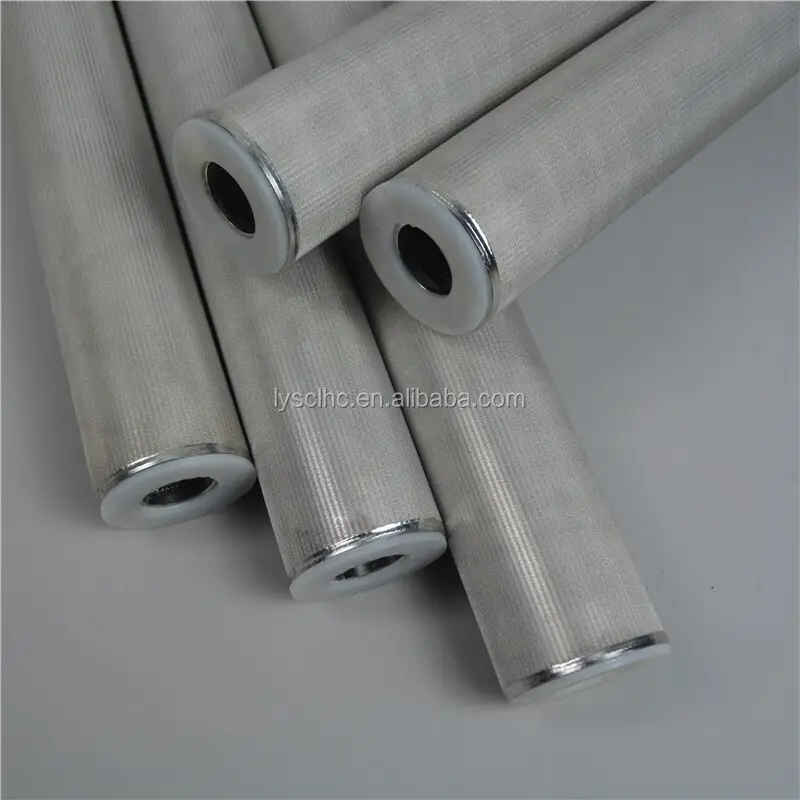

Plain cylindrical design Stainless Steel Wire Mesh filter cartridge

Lvyuan Filter stainless steel filter elements series for purify 13

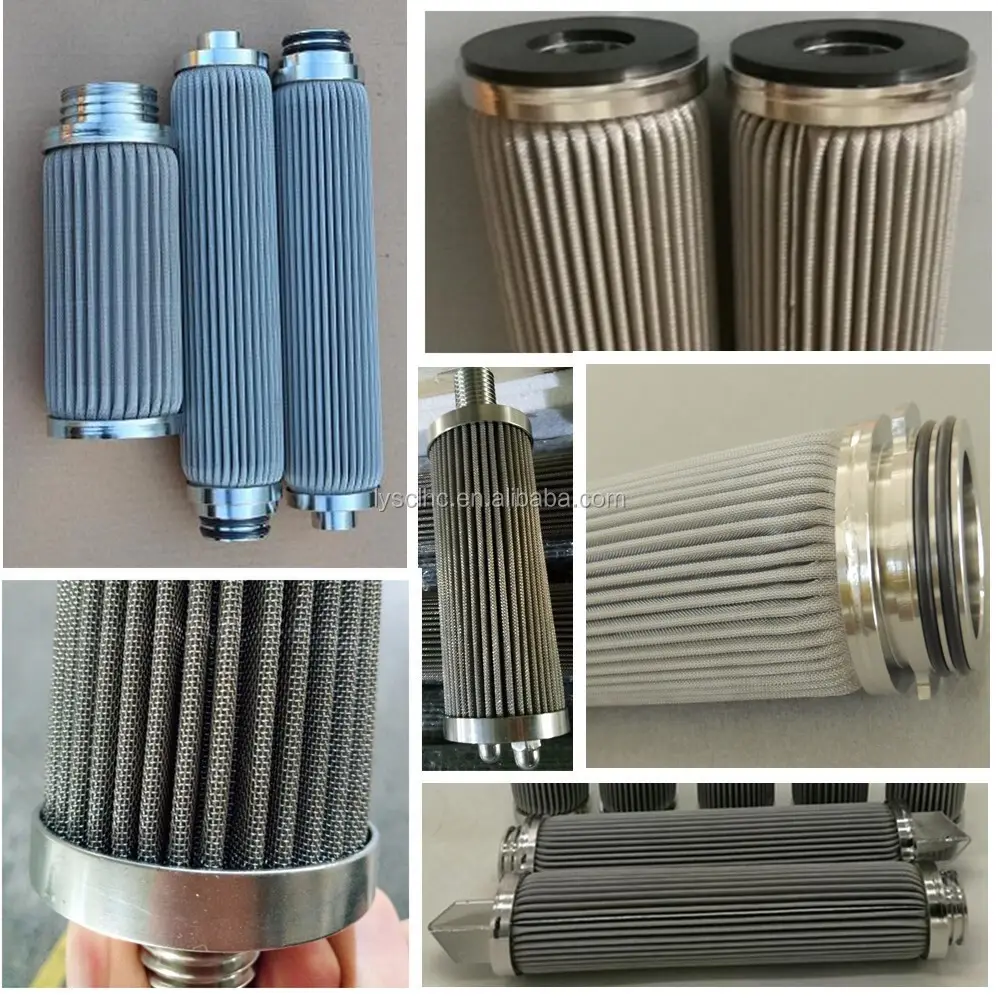

Pleated configuration design Stainless Steel folded mesh filter cartridge

Lvyuan Filter stainless steel filter elements series for purify 15

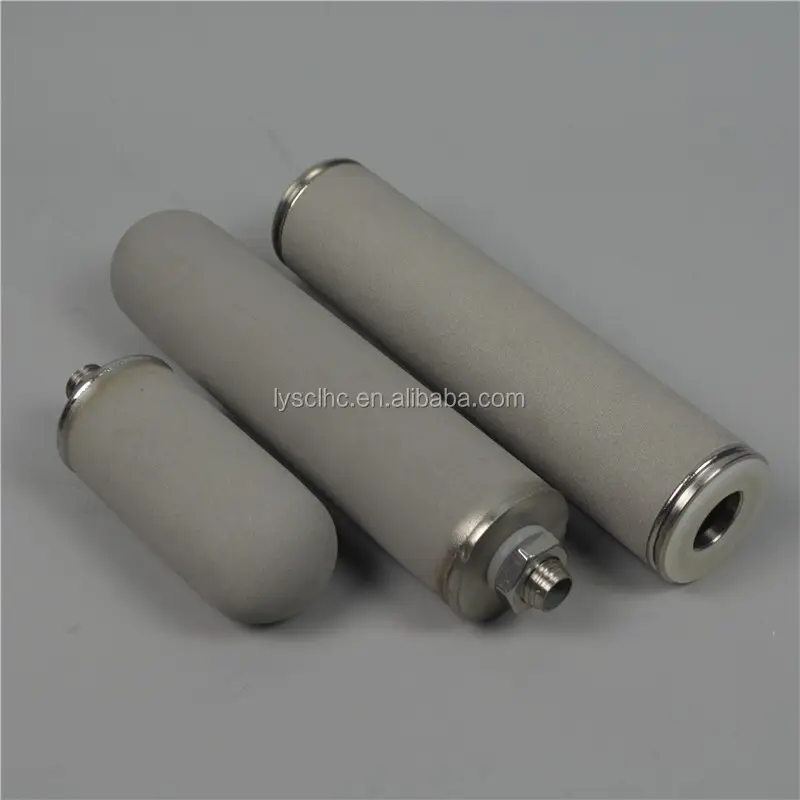

Sintered Porous Stainless Steel SUS316 Powder Filter Cartridge

Lvyuan Filter stainless steel filter elements series for purify 17

Customized Porous Stainless Steel Filter cartridge with SS support Frame

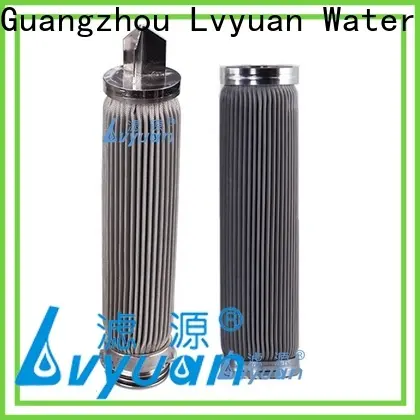

SS pleated filter cartridge with end cap-p code 0 3 6 7 8 9 for oil water treatment filtration stainless steel housing system

Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.

Fiter Cartridge dimensions
Length
5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm)
Diameter
Ø25, 30, 50, 60, 65, 70mm
Other dimensions
Customized by customer's request.
Material of constructions
Filter media
SUS304, 316, 316L stainless steel
Connector type
Flat, Insert type, Thread type, Fin
End caps
DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request.
Outside protection net
Optional
Sealing material
Silicone, NBR, EPDM, Buna, Te-flon, etc
Performance
Removal rate
1, 3, 5, 10,20, 30, 40, 50, 100um, etc
Effective Surface area
0.65sqm per 10" cartridge element
Operation Temperature
≦480℃
Cleaning method
back flushing, ultrasonic or other non-abrasive cleaning
Maximum Operating Pressure differential
4.0bar

Features:

1.Excellent mechanical strength.
2. High dirt holding capacity.
3. High pressure resistance, withstand capacity and low pressure drop.
4. Temperature ratings from -73°C to 480°C.
5. Various micron ratings available from 2um to 1000um nominal.
6. Back flushing and cleanable for long service life.
7. Strong corrosion resistant for wide chemical compatibility.
8.High permeability, no media migration.
9.Customized dimension are welcome.

Application

Stainless steeel Filter Cartridge Applications:
1. Water filtrations
2. Hydraulics
3. Automotive
4. Pneumatics
5. Chemical
6. Petrochemical
7. Medical
8. Oil & gas
9. Aeronautical
10. Mining
11. Food & beverage
12. Pharmaceutical

Products Show
Lvyuan Filter stainless steel filter elements series for purify 19
Lvyuan Filter stainless steel filter elements series for purify 21
Lvyuan Filter stainless steel filter elements series for purify 23
Lvyuan Filter stainless steel filter elements series for purify 25
Our Company
Lvyuan Filter stainless steel filter elements series for purify 27

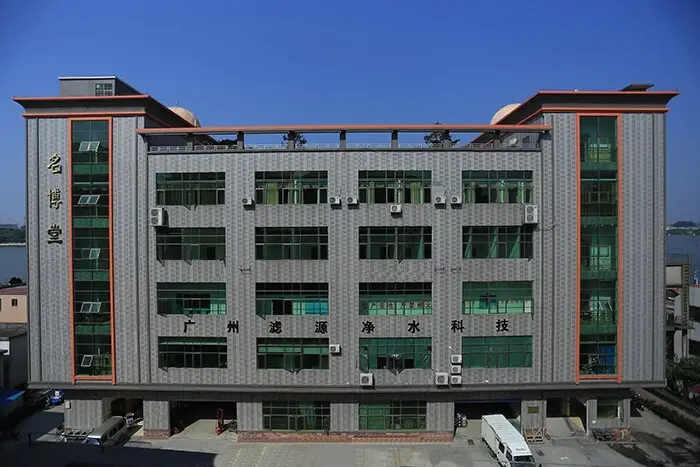

Factory

Our Factory
Lvyuan Filter stainless steel filter elements series for purify 29

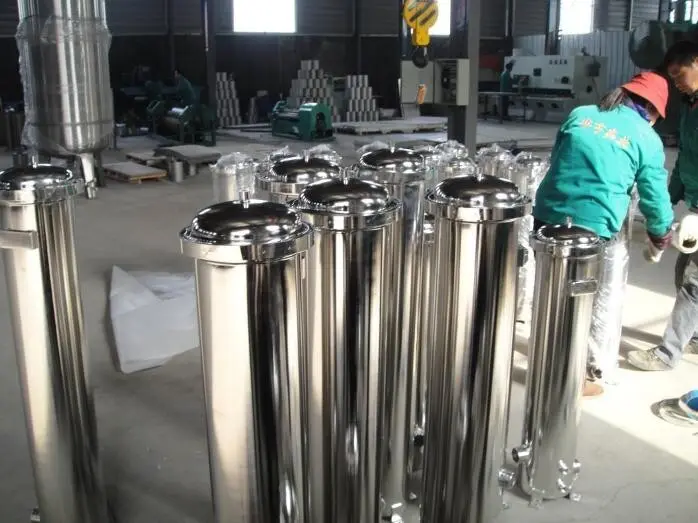

Workshop

Our Workshop

Lvyuan Filter stainless steel filter elements series for purify 31

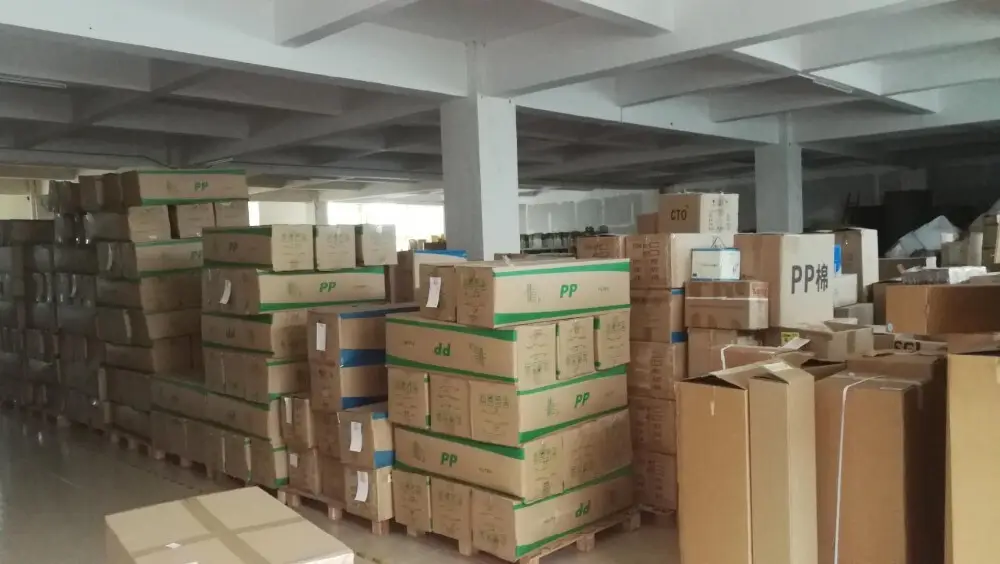

Warehouse

Our Warehouse

Lvyuan Filter stainless steel filter elements series for purify 33

Team

Our Team

Our Certifications
Lvyuan Filter stainless steel filter elements series for purify 35
Customer Photo
Lvyuan Filter stainless steel filter elements series for purify 37
Contact
Lvyuan Filter stainless steel filter elements series for purify 39
The ultimate benefit of using this product is self-evident. It will bring profit to manufacturers by increasing labor productivity, optimizing division of responsibilities and lowering human capital costs. The inner support layer is closely connected to the filter material, making it of strong impact resistance. The use of this product has contributed to prosperity in many industries. It enables high-performance mass production and productivity to become a reality. The inner support layer is closely connected to the filter material, making it of strong impact resistance.
