Cylinder tube design 10 microns fined coconut shell carbon sinter carbon block filter for pure drinking water filter

Product Description

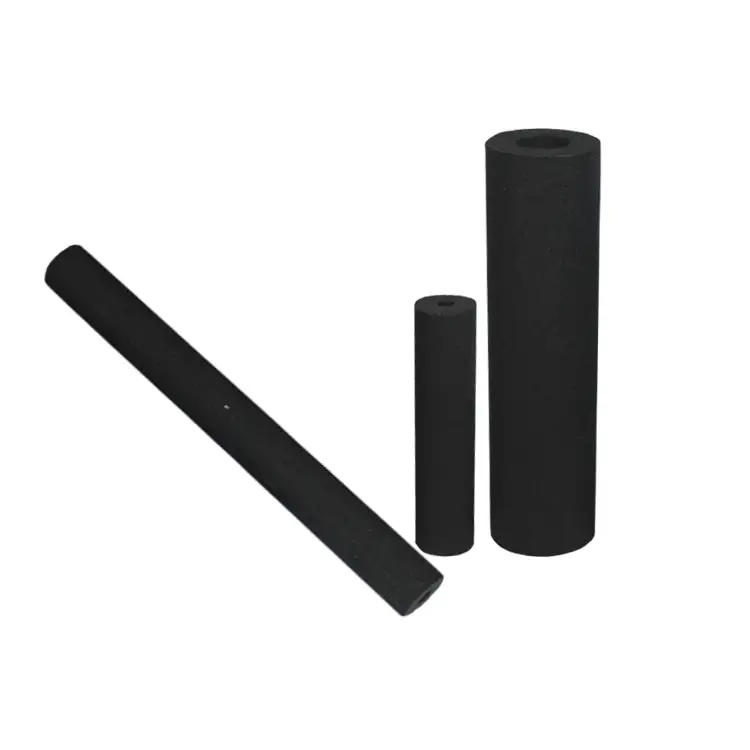

Cylinder tube design 10 microns fined coconut shell carbon sinter carbon block filter for pure drinking water filter:

Guangzhou Lvyuan Water Purification is the professional manufacturer for sintered activated carbon filter cartridge, the carbon cartridge filter is shaped by extruding activated carbon fines and food grade additives continuously, guaranteeing excellent absorbency of grained activated carbon, no release of carbon fines of bulk activated carbon, and remove chlorine, organic matter, decolorization and odor removal, to increase an efficient quality and integrated filtration.

Product name	Cylinder tube design 10 microns fined coconut shell carbon sinter carbon block filter for pure drinking water filter
Size	Regular size, Jumbo size, Customized size.
OD(mm)	14,16,19,25,28,30,35,38,40,45,46,50,53,55,60,63,64,67, 70,76,90,96.5,103,105,121
ID(mm)	6,8,10,12,14,16,18,20,22,25,28,30,32,35,38,40,45,50
Micron rate	0.5 ~20um
Material	Nut shell carbon, Coconut carbon
Iodine value	Up to 1000
Operation temperature	4.4 - 60 ℃
Flow rate	≤300L/h (250mm)
Inlet pressure	0.4Mpa
Max. pressure	7 kgf/cm²
Application	1. Food industry: Food, dinking water, beverage, wine, etc. 2. Electrical industry: Pure water, gas, electroplate liquid, Printed circuit board. 3. Chemical industry: Petrochemical technology, solvent, coating material, slurry, detergent, etc. 4. Medical industry: Hospital water, water for Pharmaceutical use., etc.

Detailed Images

Feature

High quality material caron raw materai:

Coconut activated carbon raw materials, high temperature sintering. Fits to all standard filter housings or sport bottles.
High content of the activated carbon in the same volume, long service life.

OEM customized end cap:

OEM customized length & diameter accepted.
Different adaptors are available.High iodine value activated carbon materials.

High dirt holding capacity, low drop out, high filtration efficiency.

Clear surface, compact of the carbon structure, small pore size. The options microns: 1, 5, 10.
High density carbon molecule,high filtration effeciency, strong adsorption.
