Home  > PP filter cartridge  >  Factory Polypropylene Blown Water Purification 5 micron filters PP Sediment Cartridge Filter
Factory Polypropylene Blown Water Purification 5 micron filters PP Sediment Cartridge Filter

Factory Polypropylene Blown Water Purification 5 micron filters PP Sediment Cartridge Filter

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan / OEM
Material:
polypropylene
Weight:
depends
Size:
standard or customization
Power:
0
Warranty:
Unavailable
Product name:
Micron Rate:
1/3/5/10/25/50/75/100 micron filters cartridge
Certification:
CE SGS
application:
water filter parts, Reverse Osmosis
Length:
5", 10", 20", 30", 40", 50'' inch
Filter Media:
Polypropylene PP spun
End Cap:
DOE/222Fin/226Fin/222Flat/226Flat
Gasket/O ring material:
Silicon/EPDM/Viton
Usage:
Liquid Cartridge filter
Inner core:
PP, stainless steel, none
After-sales Service Provided:
Online support
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day 5 Micron PP Filter
Product Description

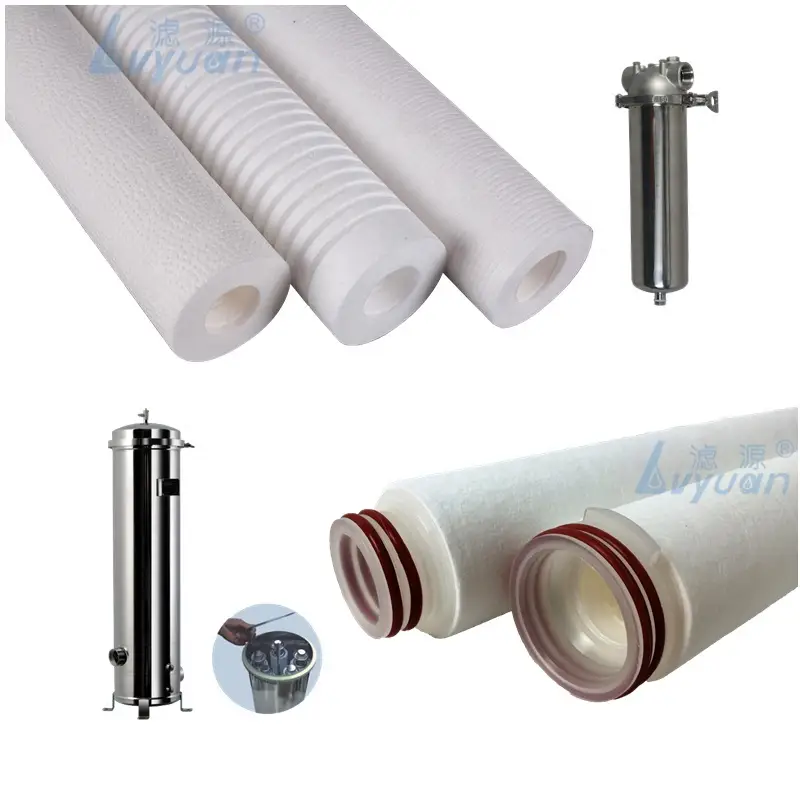

Factory Polypropylene Blown Water Purification 5 micron filters PP Sediment Cartridge Filter

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems. PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.

Melt Blown sediment filter cartridge has strong pollutants holding capacity. It can remove suspended substances, particulate and rust effectively, providing efficient filtration and long service life. It works an important role in the pre-filtration water treatment process.

We can customs-made PP or Nylon melt blown filter cartridges in all dimension (Length, Outer diameter, inner diameter) with 1 layer to more than 3 layers and multi-layers. Special PP/Nylon melt blown cartridge filters with varied specifications like groove, orange peel, pressure point, flat and embossing surface finish or equipped with different DOE or SOE end caps are also available.

All dimension can be custom-made. In order to work out the prices for you, please kindly advise your specification requirement and quantity.

Groove surface PP sediment filter cartridge

Flat surface PP sediment filter cartridge

Orange peel surface PP filter cartridge

Embossing surface PP sediment cartridge

Pressure point surface PP sediment cartridge

215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.

10x4.5'' 20x4.5'' Full-Flow BB Jumbo Melt Blown Cartridge

PP melt blown filter cartridge with 1 2 3 layers for option

Customize PP core or stainless steel shell/core pp filter cartridge

PP shell Polypropylene melt blown filter cartridge

OEM Various size PP/Nylon melt blown filter cartridge for water/air filtration

Big High Flow PP melt blown filter cartridge with OEM length and OEM diameters

Specification
Product Name
PP Melt Blown sediment filter cartridge
Length
5, 10, 20, 30, 40", 50'', 60'' inch or customized
Micron Rate
1, 3 ,5 ,10 ,20 ,25 ,30 ,50 ,75, 100 micron
End Cap
DOE/SOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat, 215+Flat/Fin
Inner Diameter
28~30mm, or OEM
Outer Diameter
60~65mm, Jumbo 110~115mm, or OEM
Gasket/O ring material
Silicon/EPDM/NBR/Viton
Material
100% pure Polypropylene or Nylon
Surface
Groove, Pressure points, Flat, Embrossing, Orange peel
Inner core
None, PP or stainless steel
Interface
Flat or insert
Max. Operating Pressure Difference:
• 80°C: 1.2kg/cm2
• 60°C: 2.1kg/cm2
• 20°C: 4.2kg/cm2
Max. Operating Temperature
80°C
Recommended Change-out Pressure Difference
2.1 bar (kg/cm2)
Common weight
100- 120g/10" (It can be customized)
Application

1. Drinking Water Treatment
2. Industrial water treatment, like electronic, power, plating and oil industry.
3. Pre-filtration of RO/DI system
4. Food and Beverage
5. Sea Water Desalination
6. Chemical, solvent, wine, etc.
