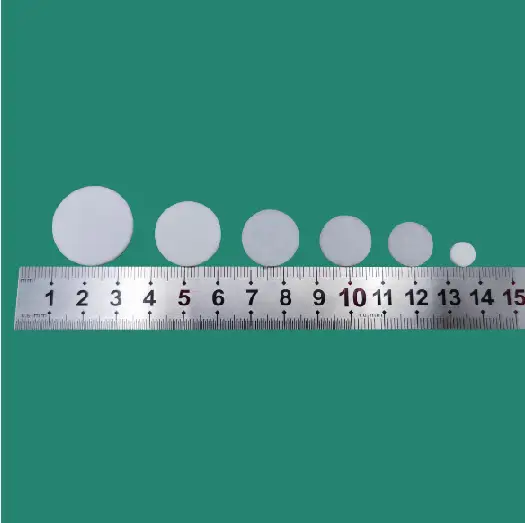

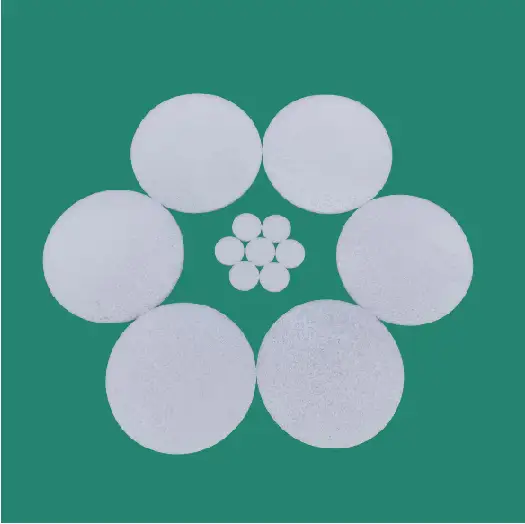

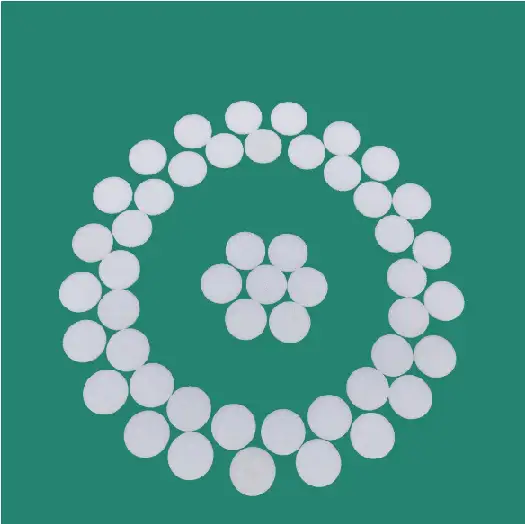

Factory Price Sintered Porous PE PP Filter Discs
The battery filter, explosion-proof plate, acid filter, air vent, air filter, exhaust plate, dust filter, dust filter plug and other products produced by our factory strictly comply with the standard of valve regulated lead acid storage safety valve microporous acid filter JB/T11340.5-2012. The product is made of PE/PP powder through scientific proportion sintering, which has the characteristics of high strength, uniform pore diameter, good permeability, etc. The PP filter will not deform or turn yellow after 400 hours at 150 ℃. The product specifications are 5-30mm in diameter and 2-7mm in thickness. Special specifications can be customized.
| Diameter | 10mm,20mm,30mm,40mm,50mm,60mm,70mm,80mm,90mm,100mm,110mm, 120mm, 200mm,etc. |
| Thickness | 2-7mm |
| Micron rate | 1um,5um,10um,20um,30um,etc. |
| Working temperature | PE≤80℃; PTFE≥200℃;PA≤120℃ |
| Filter connector | FLAT,INSERT-TYPE,THREAD TYPE,226,222,215, CUSTOMIZED |
| Remark | Filter size and microns can be customized. Smaller size or bigger size ! |
| The existing Filter Disc Mold specifications | |||||||
| Diameter (mm) | Thickness (mm) | Diameter (mm) | Thickness (mm) | Diameter (mm) | Thickness (mm) | ||
| 10 | 3 | 18 | 3.1 | 15 | 3 | ||
| 4 | 3 | 9.8 | 3 | 12 | 3 | ||
| 13 | 3 | 8 | 2.5 | 8.8 | 2.2 | ||
| 5 | 3.5 | 14.45 | 4 | 17 | 3.2 | ||
| 12.6 | 3.2 | 25 | 3 | 20 | 3.2 | ||
| 16.2 | 3.5 | 16 | 2.5 | 16 | 5.5 | ||
| 23 | 1.6 | 13 | 3.4 | 6.1 | 3 | ||
| 8.5 | 3 | 16.1 | 2.65 | 8.5 | 2 | ||
