Home  > stainless steel cartridge filter housing  >  Factory supply 7 cartridge filter element stainless steel 10 inch sediment filter housing with pleated membrane filter 5 micron

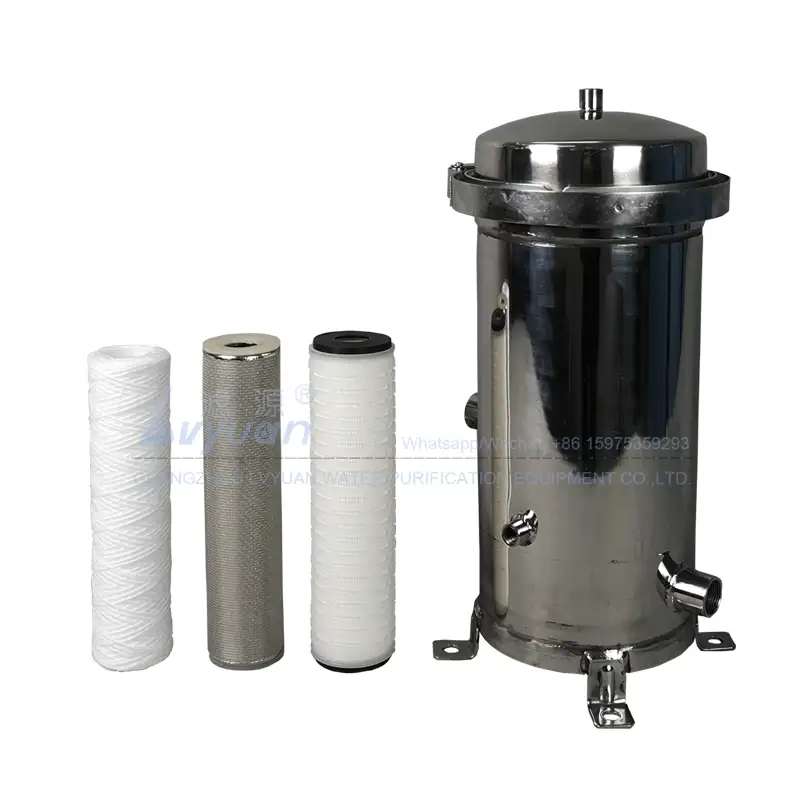

Factory supply 7 cartridge filter element stainless steel 10 inch sediment filter housing with pleated membrane filter 5 micron

Factory supply 7 cartridge filter element stainless steel 10 inch sediment filter housing with pleated membrane filter 5 micron

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Food & Beverage Factory, Farms, Restaurant, Home Use, Food Shop, Energy & Mining, Food & Beverage Shops
Place of Origin:
Guangdong, China
Brand Name:
LVYUAN/OEM
Warranty:
1 Year
After-sales Service Provided:
Online support
Item Name:
Stainless steel 10 inch sediment filter housing
Housing Material:
SS304/SS316L
Filter cartridge length:
10" 20" 30" 40"
Cartridge filters quantity:
Single core
Surface treatment:
Polished & Sandblast
Seal o-ring:
Silastic/NBR/EPDM/Viton
Top cap installed type:
Clamp type
Connector type:
222/226/DOE
Inlet & Outlet type:
Internal thread
Packaging method:
Export standard box

Packaging & Delivery

Selling Units:
Single item
Single package size:
35X18X25 cm
Single gross weight:
3.000 kg
Package Type:
Micro industry 10 20 30 40 inch security filter bottle 04 316L SS liquid water housing for liquid/wine/beer filter filtration: Packaging: Export standard box/As required
Lead Time :
Quantity(Pieces) 1 - 10 11 - 100 >100
Est. Time(days) 5 10 To be negotiated
Product Description

Factory supply 7 cartridge filter element stainless steel 10 inch sediment filter housing with pleated membrane filter 5 micron

LVYUAN  stainless steel cartridge filter housing offers wide range of flow capacities & contaminant holding capacities.

Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter

housing, filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge& choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

Model No.
Drain
Vent
In & Out
Body diameter
Thickness
LY-FL-SC-L1
1/4"
1/4"
1/2"  3/4"  1"
89mm
1mm-2mm
LY-FL-SC-L2
1/4"
1/4"
1/2" 3/4" 1"
89mm
1mm-2mm
LY-FL-SC-L3
1/4"
1/4"
1/2" 3/4" 1"
89mm
1mm-2mm
LY-FL-SC-L4
1/4"
1/4"
1/2" 3/4" 1"
89mm
1mm-2mm

Features:

1.Inlet & outlet size is 1/2", 3/4". 1" for easy installation.

2. Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.

3. Use the tap water pressure to provide power, no power consumption.

4. Wall-mounted, counter-top, very simple installation.

5. It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.

6. Resistance to strong acid and alkali.

7. Low cost, it fits different kind of filter elements.

Structure:

Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.

Inside with the silicone gasket, it can be applied to cold & hot water temperature.

High pressure resistance, corrosion resistance.

Detailed Images
Application

1. Widely used in UF, RO, EDI security filtration and the end-filtration.

2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.

3. Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.

4. Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.

5. Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.

6. Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.

7. The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.

8. Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.

BOTTLED WATER

BEVERAGE & DRINKS

BIOLOGY TECHNOLOGY

RO WATER TREATMENT

CHEMICAL INDUSTRY

POWER PLANT
