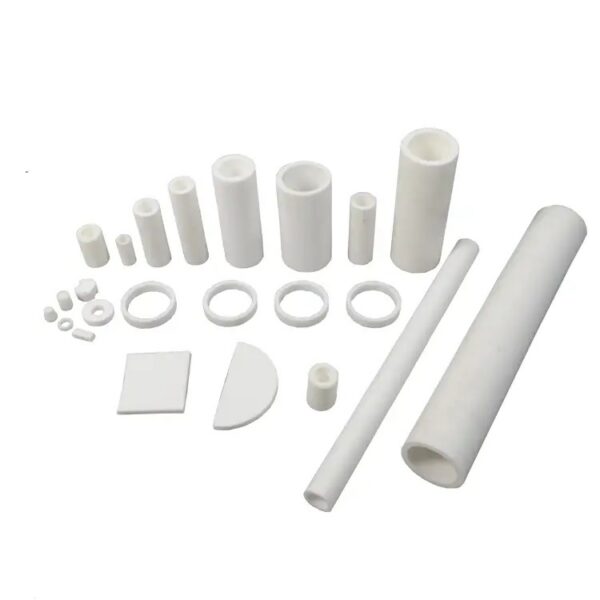

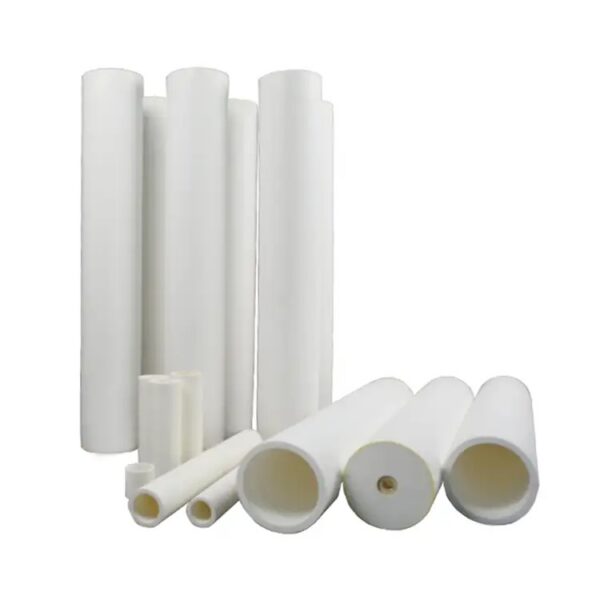

High Polymer HDPE PE 60'' 100um Sintered Plastic Filter Element

High Polymer HDPE PE 60'' 100um Sintered Plastic Filter Element

Model
LY-HFPL
MOQ
1 pcs
Payment
T/T, Alibaba Trade Assurance, paypal
Place of Origin
Guangdong, China
Brand
OEM/Lvyuan
Certification
ISO 9001
Delivery Time
Within 7 working days
Start Port
Guangzhou
Production Capacity
10000 units/Month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Material: pe
Availability: OEM

High Polymer HDPE Waste Water Treatment PE Sintered Plastic Filter Element


Product Description

The PE filter element has uniform pore size distribution, strong acid and alkali resistance, high temperature resistance, good mechanical properties, and strong resistance to organic solvents. The production of large-scale water treatment equipment can adopt automatic or manual recoil deslagging method, solid particles can be recovered by dry slagging, without frequent replacement of filter elements, automatic operation, low filtration cost and other advantages, which are well received by users.

Filter Media
PE, HDPE, PTFE, PVDF, PA/Nylon etc
Micron rate
0.2um, 0.5um, 1um, 3um, 5um, 10um, 25um, 30um, 50um, 75um, 100um, etc
Reference dimension
(mm)
31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180,
  38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc.
Connector type
DOE, SOE, Flat, insert, thread, 226, 222, 215, M36, M30, M27, M25, M22, M14, M12, or as request.
Max. operating temperature
PE≤82℃; PTFE≥200℃; PA≤120℃

Product Feature

High porosity to ensure a greater flow per unit area; 2. Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough; 3. Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body; 4. Resistance to strong acid, alkali corrosion, resistance to organic solvents; 5. Excellent mechanical properties; 6. No particle release. 7. Wide Product range and wide scope of application
