Manufacturer Industrial Micropore Titanium microporous filters with DOE M20 M30 M42 222 226 code

Manufacturer Industrial Micropore Titanium microporous filters with DOE M20 M30 M42 222 226 code

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan / OEM
Material:
as request
Weight:
depends on actual product
Size:
customization
Power:
0
Warranty:
Unavailable
Name:
titanium microporous filters
Micron Rate:
0.1, 0.22, 0.45 1 to 60 micron
Length:
5", 10", 20", 30", 40", OEM
Diameter:
50, 60, 70, 80mm
Connection type:
DOE,SOE, Screw type, 222, 226
Usage:
Liquid Filtration
Raw Material:
Pure titanium 99.6%
Way of wash:
Back washing
Certification:
SGS, ISO9001
Filter housing:
available for option
After-sales Service Provided:
Online support
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week micropore titanium filter
Product Description

Manufacturer Industrial Micropore Titanium microporous filters with DOE M20 M30 M42 222 226 code

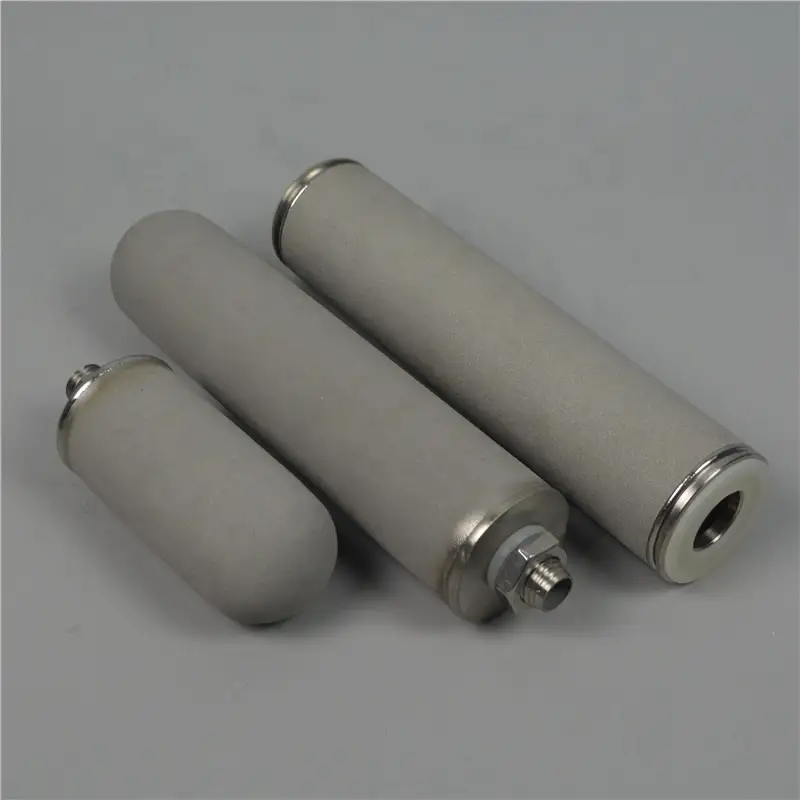

Porous Titanium metal powder filter cartridge is made by titanium metal powder which purity is above 99.6%. Titanium powder is sintered to form a rugged, fixed pore structure, Titanium filter cartridges are made to withstand temperature extremes, high pressures and repeated cleaning/backwash cycles. There are no longitudinal seams, for improved mechanical strength and corrosion resistance.

Sintered titanium filter cartridges are produced in a range of configurations (DOE, screw type) and micron ratings to perform in a variety of liquid and gas applications. It supply broad chemical compatibility and is widely used in food & beverage, pharmaceutical and chemical industry, especially for decarbonizing filtration.

Specification
Name
Sintered titanium filter cartridge
Filter Media
Titanium metal powder
Seal Material
Silicone
Construction method
Welded (no adhesives)
Filtration rate
0.45um, 1um, 3um, 5um, 10um, 20um, 30um, 50um, 80um, 100um, 120um.
Length
5, 10, 20, 30, 40 inch, OEM
Outer diameter
50, 60, 70, 80mm
End cap
DOE, M20, M30,M36, M42, 215, 222, 226, OEM
Operating temperature
≤300ºC
Maximum operating pressure
0.6Mpa

Pure water flow rate reference table: the initial value of 10''cartridge(P=0.2 MPa, 1cP, 25℃)

Micron rating
(um)
0.2
0.45
1
2
3
5
10
20
30
Flow rate
(L/H)
180
200
250
280
300
350
500
800
1000
End Caps
Features

1. High purity of sintered titanium powder – Offers high corrosion resistance.
2. Cleanable and Backwashable – Allows for re-use – Maximum economy.
3. High Temperature Sintering – No media migration.
4. Various gasket, O-Ring materials and configurations – Suitable for most systems.

Applications

1. Corrosive liquids and gases
2. Cryogenic fluids
3. High viscosity solutions
4. Process steam
5. High temperature liquids and gases
6. Catalyst recovery
7. Decarbonizing filtration
8. solvent filtration
