Plastic Sintered Liquid Cartridge Filter Industrial Waste Water Gas Air Treatment

Plastic Sintered Liquid Cartridge Filter Industrial Waste Water Gas Air Treatment

Model
LY-HFPL
MOQ
1 pcs
Payment
T/T, Alibaba Trade Assurance, paypal
Place of Origin
Guangdong, China
Brand
OEM/Lvyuan
Certification
ISO 9001
Delivery Time
Within 7 working days
Start Port
Guangzhou
Production Capacity
10000 units/Month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Material: pe
Availability: OEM

Plastic Sintered Liquid Cartridge Filter Industrial Waste Water Gas Air Treatment

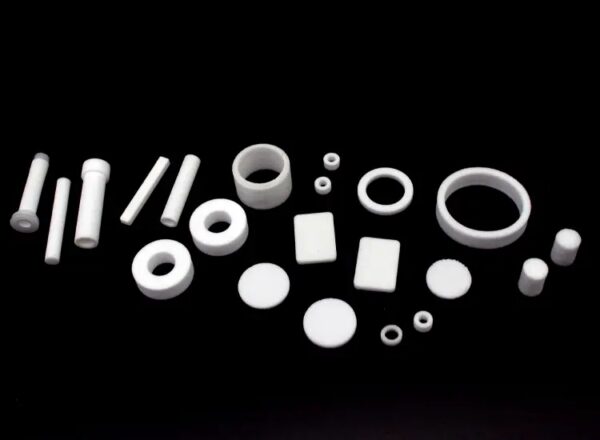

Lvyuan produces wide ranges of sintered porous plastic filter products, including porous PE, HDPE, PTFE, PVDF, PA, Nylon 6, fiber-glass with shapes of tube, rod, candle, sheet, plate, disc, stick etc. With various filtration rate, shapes and features, sintered porous plastic filter cartridges are widely used in water treatment, chemical engineering, medical treatment, automobile, environmental protection and other industries, such as oil water separator and silencer, drunk driving tester, blind plug for medial treatment, syrup and grease filter device, anti-explosion slices for industrial battery, acid-proof slices for automobile battery, waste water treatment, water purification filter system and more. Lvyuan sintered porous platics filters can meet requirements of different customers. Custom molded Shapes are available.

Product Feature
1. High porosity to ensure a greater flow per unit area; 2. Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough; 3. Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body; 4. Resistance to strong acid, alkali corrosion, resistance to organic solvents; 5. Excellent mechanical properties; 6. No particle release. 7. Wide Product range and wide scope of application
Filter Media
PE, HDPE, PTFE, PVDF, PA/Nylon etc
Micron rate
0.2um, 0.5um, 1um, 3um, 5um, 10um, 25um, 30um, 50um, 75um, 100um, etc
Reference dimension
(mm)
31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180,
38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc.
Connector type
DOE, SOE, Flat, insert, thread, 226, 222, 215, M36, M30, M27, M25, M22, M14, M12, or as request.
Max. operating temperature
PE≤82℃; PTFE≥200℃; PA≤120℃



Medical & Pharmaceutical

1. Impurity removal, decarbonization and fine filtration. 2. Acid Gas Dry deducting 3. Decarbonization Filtration 4. Self sealing filters in suction liner bag

Food & Beverage

1. Remaining yeast and diatomaceous earth filtration 2. Clarification filtration in beverage 3. Water filtration in beverage, brewery 4. Sterile air filtration in beer and brewery

Oil & Gas

1. Organic Solvents recycling filtration 2. Injection water filtration 3. Steam, Compresses air and catalyst filtration 4. Final product end filtration

Chemical

1. Catalyst recovery 2. Medicine intermediate decarbonization and fine filtration 3. H2O2 process filtration

Water Treatment

1. Protection of reverse osmosis in desalting of sea water 2. Sterile Ozone filtration and ozone aeration 3. Protection of ultra filter, RO, EDI systems

Industry

1. Filters in flue gas analysis and CEMS systems 2. Air aeration 3. Muffler and Silencer 4. Compress air filtration 5. CMI Porous Metal Instrument filters
