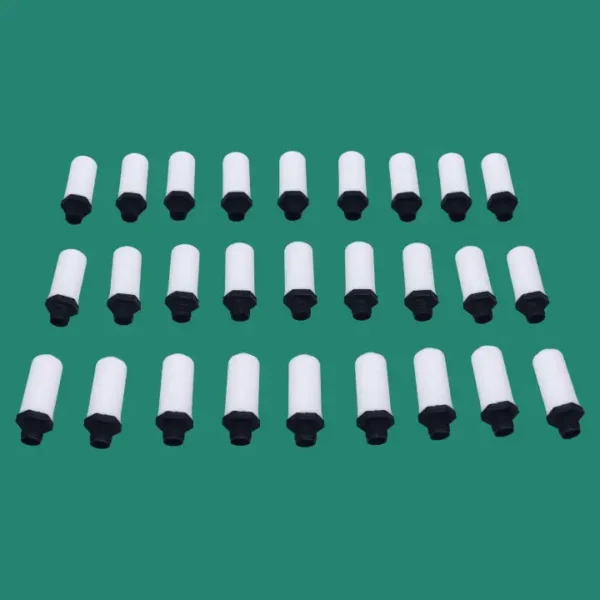

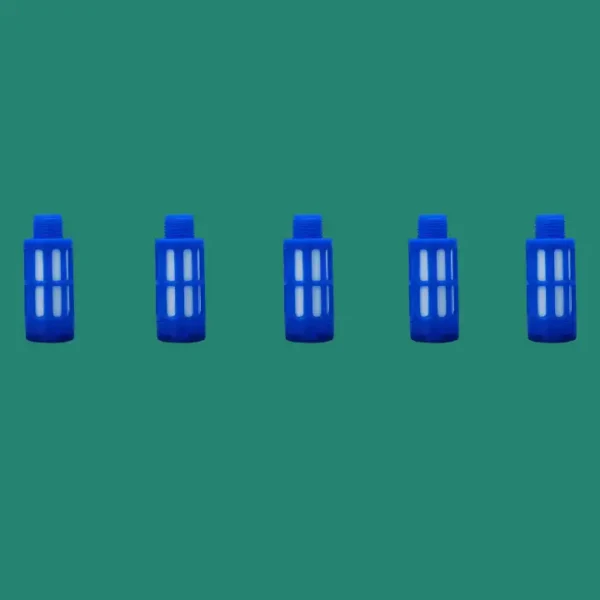

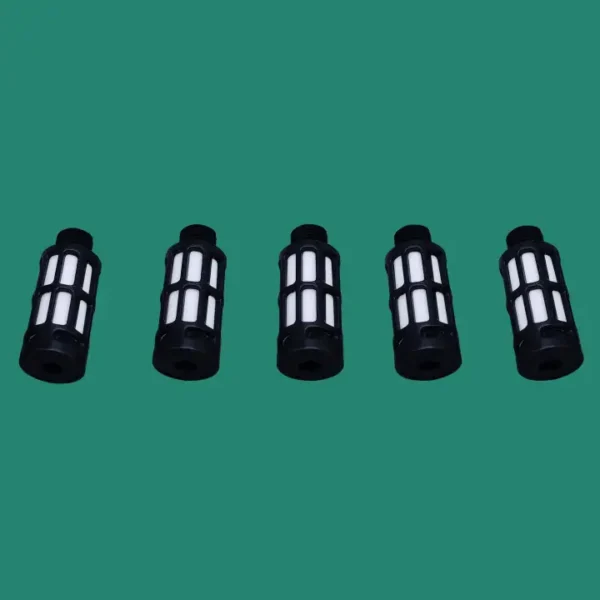

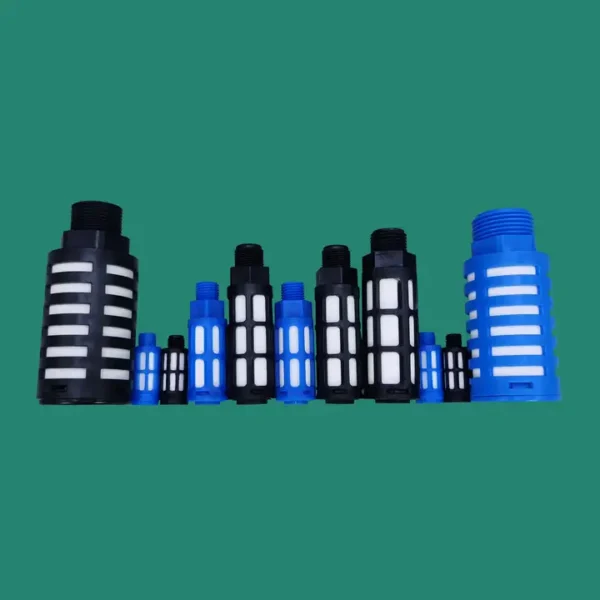

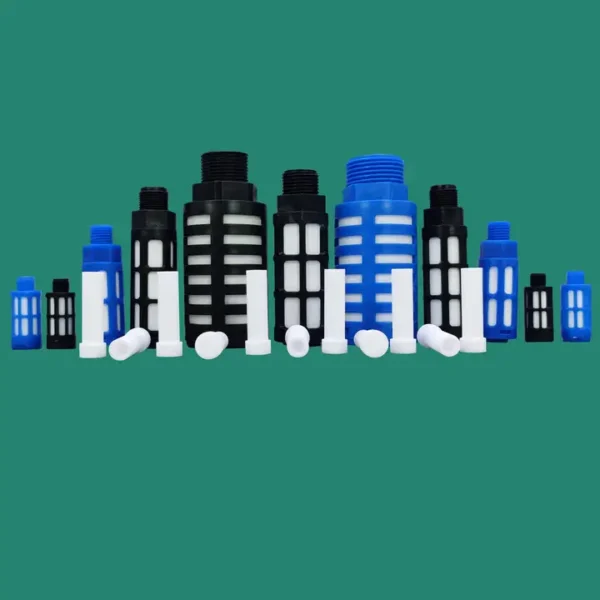

Pneumatic Components1/8 1/4 3/8 1/2 3/4 BSP Male Thread Plastic silencer Pneumatic Black blue Air Quick Exhaust Muffler
1. Purpose of muffler The muffler, also known as the muffler, is a sound-absorbing and noise-reducing product that is widely used. The muffler is also a product that can not only pass the airflow but also reduce the noise. The muffler is widely used in various boiler steam emission mufflers in the electric power, petrochemical, metallurgical and other industrial sectors.
2. Application background In the process of modern industrial production and equipment use, the muffler can effectively reduce the noise of pneumatic equipment, and can provide the best balance between noise reduction and acceptable back pressure in the pneumatic system. In general, mufflers are available in a wide range of sizes to fit most standard valves, and have robust integrated threads to ensure easy assembly to pneumatic equipment.
High porosity to ensure a greater flow per unit area;
Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough;
Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body;
Resistance to strong acid, alkali corrosion, resistance to organic solvents; 5. Excellent mechanical properties; 6. No particle release. 7. Wide Product range and wide scope of application
1/8 length is about 37mm, thread directly: 9.5-10mm, inner hole diameter 6mm.
1/4 small body length is about 41mm, thread diameter: 12-12.5mm, inner hole diameter 8mm.
1/4 The general length is about 63mm, thread diameter: 12-12.5mm, inner hole diameter 8mm.
3/8 length is about 82mm, thread diameter: 16-16.2mm, inner hole diameter: 10mm.
1/2 length is about 91mm, thread diameter: 20-20.3mm, inner hole diameter 12mm.
