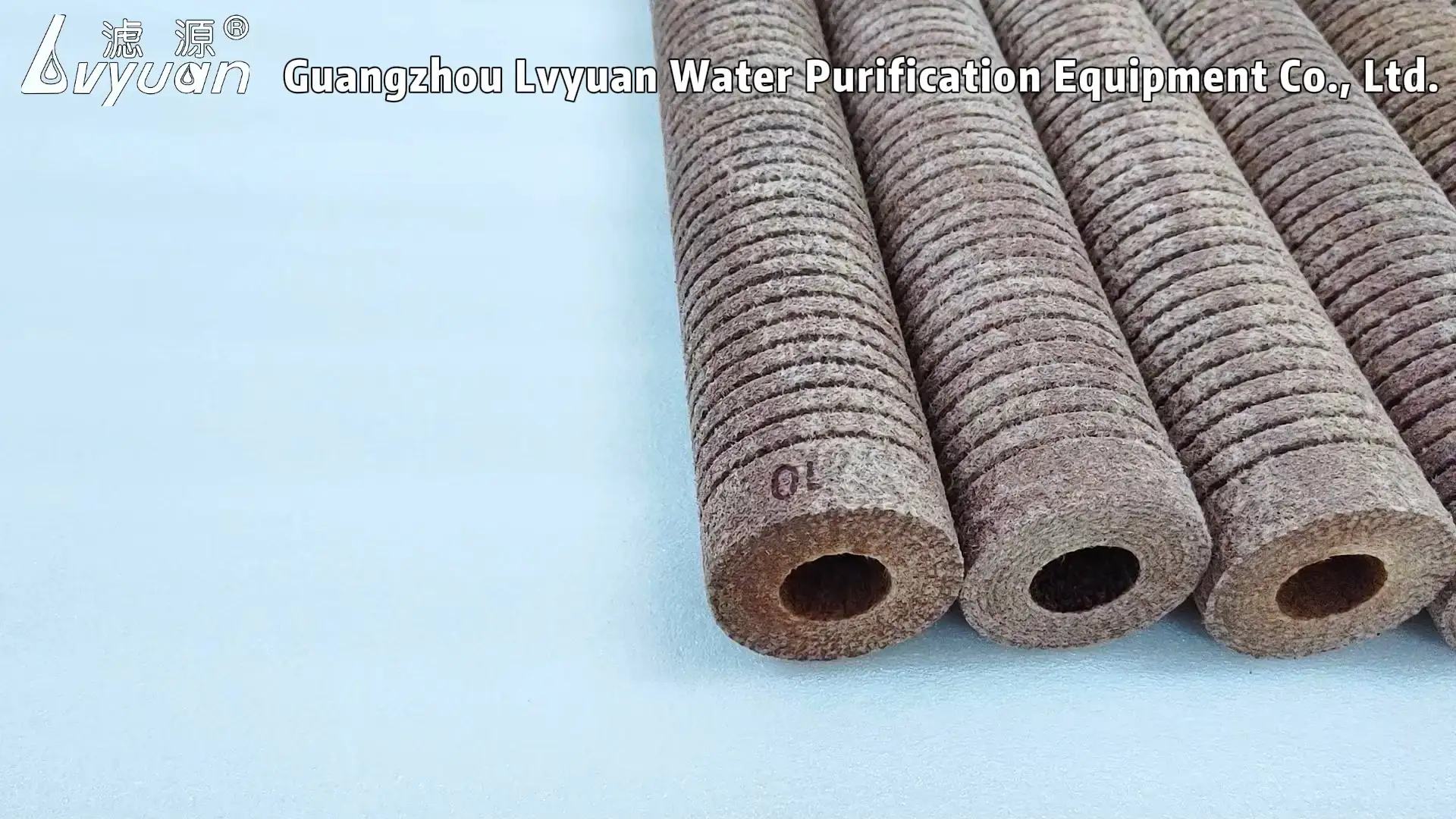

Resin Bonded Filter Cartridges 10 20 30 40 inch
Resin bonded filter cartridge is a porous and insoluble ion exchange material that effectively reduces the hardness of water through ion exchange reactions. The interior of the filter is filled with millions of tiny plastic balls, which have negatively charged exchange sites on their surfaces initially occupied by sodium ions. When hard water containing calcium and magnesium ions flows through the filter element, the resin preferentially adsorbs the more charged calcium and magnesium ions, while releasing an equal amount of sodium ions, thereby achieving water softening. This process does not require the addition of chemical agents and belongs to the synergistic effect of physics and chemistry. Resin filter cartridges can also restore their activity through regeneration operations (such as soaking in saturated salt water), significantly extending their service life.
| Parameter Category | Specific Indicators |
|---|---|
| Common sizes | Length: 5 ", 10", 20 ", 30", 40 "(note: 1 inch=25.4 mm) Outer diameter: about 65 ± 1 mm, inner diameter: about 28 ± 1 mm |
| Filtering accuracy | 1-100 μ m (depending on specific model) |
| Processing flow rate | 0.15-1.2 t/h (proportional to the length of the filter element) |
| Working temperature | -20 ℃ to 90 ℃ (some models can withstand high temperatures up to 100 ℃) |
| Work pressure | Maximum 0.2-0.6 MPa (commonly used in water treatment); Industrial oil treatment filter can reach 21 MPa |
| Porosity | 30% -35% (sintered type) |
| Residual chlorine removal rate | >96% |
| Regeneration method | Soak in saturated sodium chloride solution to restore activity |
| Applicable pH range | Wide adaptability (depending on resin type) |
Production Process of Resin bonded filter cartridge
The manufacturing process of resin bonded filter cartridges varies depending on the type (such as particle filling type, sintering type), but the main steps include:
- Raw material preparation and mixing: Mix macroporous ion exchange resin or chelating resin (usually with a crosslinking degree exceeding 6% to ensure heat resistance) with binders (such as polyethylene, polypropylene), pore forming agents (such as ammonium bicarbonate), etc. in proportion.
- Molding and Sintering: Particle filling type: Fill the mixed resin particles directly into a filter tube with an end cap and supporting skeleton, and seal it into shape. Sintering type: The mixture is loaded into a mold and sintered in a constant temperature box at 200-240 ℃ for a certain period of time (such as 180 minutes) to fuse the material and form a block filter with uniform internal pores. The pore forming agent evaporates at high temperatures, forming a microporous structure.
- Post processing and assembly: After cooling and demolding, components such as PP cotton outer layer, activated carbon layer, heating layer or microwave oscillator may be added to make a composite filter element to improve the filtration effect. Finally, conduct quality inspection and packaging.
Advantages Of Resin bonded filter cartridge
Resin filter cartridges are widely used in water treatment and specific industrial fields due to their significant advantages, including:
- Efficient Softening of Water Quality: It can effectively remove calcium and magnesium ions from water, significantly reduce water hardness, and prevent scale formation.
- Excellent adsorption performance: It can adsorb organic matter, residual chlorine, and some heavy metal ions in water, improving the taste, clarity, and odor of water.
- Renewable and reusable: When the softening effect weakens, inexpensive sodium chloride (salt) solution can be used for regeneration to restore exchange capacity, extend service life, and be cost-effective. Strong chemical stability: corrosion-resistant, capable of stable operation over a wide range of pH values and temperatures.
- High mechanical strength: Especially for sintered filter cartridges, they can withstand certain pressure and are not easily damaged.
Application Of Resin bonded filter cartridge
With its characteristics, resin filter cartridges play an important role in the following fields:
- Household and Civilian: Used for household water softeners and water purifiers, providing softened domestic and drinking water to alleviate the problems of scale and dry skin caused by hard water.
- Catering and Beauty: In hotels, beauty salons, and other places, softened water can help improve cleaning effectiveness and protect hair and skin.
- Industrial water treatment: Used for boiler feedwater softening, cooling water treatment, pre-treatment of ultrapure water preparation in the electronics industry, etc., to prevent equipment scaling, improve thermal efficiency, and protect precision instruments.
- Food and pharmaceuticals: Play a role in processes such as sugar decolorization, antibiotic extraction, and separation of biological products.
- Specific industrial fluid treatment: For example, in the acid removal and resistivity improvement of fire-resistant oil systems in power plants, specialized ion exchange resin filters are used.
