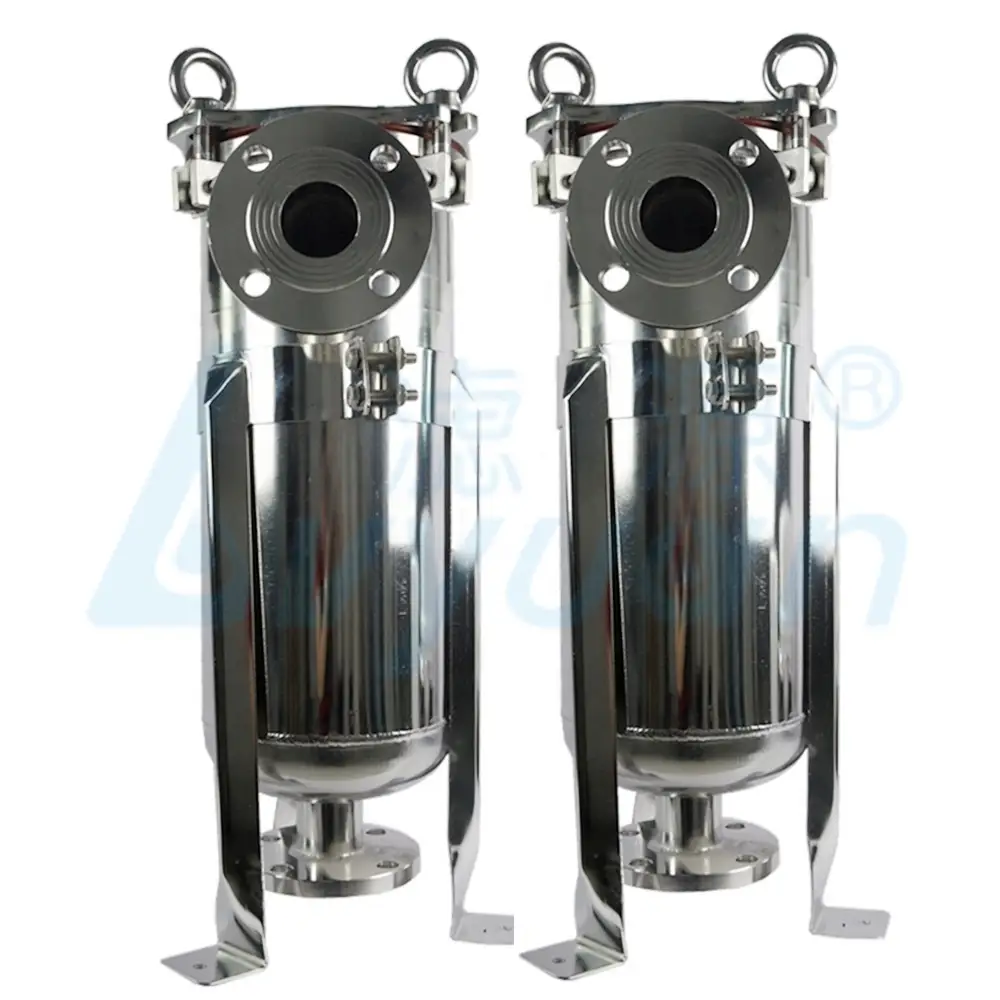

Reusable and washable filter bag stainless steel 304 ss316 bag filters housing to filter tea and milk

Reusable and washable filter bag stainless steel 304 ss316 bag filters housing to filter tea and milk

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Stainless steel Bag filter housing
  •
+86 13316223340
info@lyfilter.com
+86 020-34460508
+86 020-34425655

Our company always insists on product quality is life, our aim is to provide more professional and attentive services for our global customers.

Overview
Quick Details
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, water treatment
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan,OEM,ODM
Material:
staniless steel 304/ss304
Weight:
25kg
Size:
370*370*900mm
Power:
0
Warranty:
1 Year
After-sales Service Provided:
Online support
Certification:
ISO9001
Model:
BFH-1
material:
sus304
filter bag size:
180*450mm
outer/inner:
polished
Working pressure:
100Psi
closure:
Flange
sealing:
EPDM O-ring
inlet/outlet:
Flange
Design temperature:
100℃

Packaging & Delivery

Selling Units:
Single item
Single package size:
45X45X120 cm
Single gross weight:
30.000 kg
Package Type:
paper box and if quantity up to 10 pcs would have wooden case.
Lead Time :
Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
Est. Time(days) 15 25 35 To be negotiated
Product Description

Features:

1. The bag filter has large flow rate capacity, small volume and dirt holding capacity.

2. It is convenient and quick to replace the filter bag, and the filter is no-clean, saving labor and time.

3. The side leakage rate of the filter bag is small, which greatly improves the filtration quality.

4. The bag filter can withstand greater working pressure, low pressure loss, low operating cost and obvious energy saving effect.

5. Filter bag filtration accuracy has been continuously improved and has reached 0.5um.

6. The bag filter has a wide range of applications, flexible use and various installation methods. Widely used in environmental protection, chemical, metallurgical, pharmaceutical, food and other industries.

Products Show

LY-BFH Stainless Steel BAG Filter Housing standard Specification:

Material
SS304
Bag material
 PP/PE/nylon/PTFE
Finishing
outer-polished or sand blast surface
inner-polished
Closure
Flange
Inlet/Outlet
DN50 Flange or customied
Pressure
 Maximum 1 Mpa/150psi
Continuous operating 0.5 Mpa/72.5psi
Sealing
EPDM O-ring
Filter bag
180*450mm

Users can choose filter bags of different shapes, different apertures, different structures and different materials according to different filtering needs to obtain the most economical and effective filtering effect.

Product list
NO.
Name
Quantiy/
Material
1
Leg 500x38x38x3.0
3pcs/ss304
2
water outlet DN50 flange
1pcs/ss304
3
Bottom head φ219x1.5
1pcs/ss304
4
Basket φ170x380
1pcs/ss304
5
Housing body φ219x1.5
1pcs/ss304
6
Clamp for leg
1pcs/ss304
7
Internal flange φ214xφ173x16
1set/ss304
8
Plate
1set/ss304
9
Flange Quick-bolt φ219x250x25
1pcs/ss304
10
Quick-bolt M12
6pcs/ss304
11
Vent 1/4" thread
1pcs/ss304
12
Handle
1pcs/ss304
13
Top cover plate φ312x12.0
1pcs/ss304
14
O-ring
1pcs/EPDM
15
Quick-bolt under flame
12pcs/s304
16
Water inlet DN50 Flange
1pcs/ss304
Related Products

                     Water filter bag                                    clamp type bag filter                                     Top into bag filter

sanitary filter housing                clamp type filter housing       single cartridge filter housing             cartridge filter housing

Certifications
FAQ

1. How I choose the bag filter housing size?

  We can recommand one for you.As you tell us what kind of fluid you want to filter, including flow rate, operating pressure, temperature, acid value etc.

2. How about the lead time?

Usually within 10 working days.if you have request ,could you pl tell us your delivery day ,we will check the production schedule, and give you exact answer.If we can reduce the lead time, we will try our best.

3. Can we order small quantity?

Yes, we can accept samples purchase and we hope built long term relationship with you.
