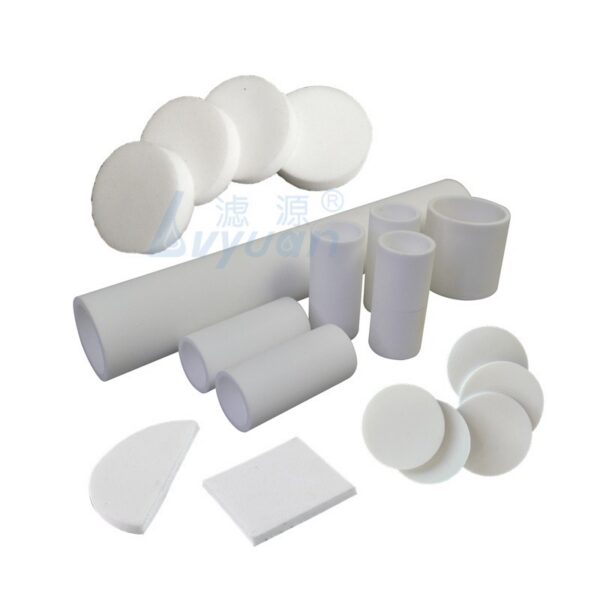

Sintered Porous PE Polyethylene Fritted Filter Disc

Sintered Porous PE Polyethylene Fritted Filter Disc

Model
LY-HFPL-7
Payment
L/C, Western Union, Alibaba Trade Assurance, paypal, OA
Delivery Time
Within 7 working days
Start Port
Guangzhou
Production Capacity
10000 units/Month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Material: pe
Availability: OEM/ODM
Lvyuan produces wide ranges of sintered porous plastic filter products, including porous PE, HDPE, PTFE, PVDF, PA, Nylon 6, with shapes of tube, rod, candle, sheet etc. With various filtration rate, shapes and features, sintered porous plastic filter cartridges are widely used in water treatment, chemical engineering, medical treatment, automobile, environmental protection and other industries, such as oil water separator and silencer, drunk driving tester, blind plug for medial treatment, syrup and grease filter device, anti-explosion slices for industrial battery, acid-proof slices for automobile battery, waste water treatment, water purification filter system and more.


◆◆ Lvyuan sintered porous platics filters can meet requirements of different customers. Custom molded Shapes are available.


PE and HDPE Sintered filter cartridge
Sintered Porous Polyethylene (PE) products are the most commonly used plastic filter element in the world. Porous PE plastics is strong, lightweight thermoplastic with strong chemical (acids and alkali) resistance and wide micron rates from 1 to 200um. There’re Ultra-high molecular weight Polyethylene (UHMWPE) and High-density Polyethylene (HDPE) available in tubes, sheets, rods and molded shapes available for different applications.


PTFE Sintered filter cartridge:
Micro Porous PTFE filter elements are produced by sintering pure PTFE (Polytetrafluoroethylene) granules, no other substances are used in the construction. These filter elements are usually offered when only 100% pure disposable PTFE can be used. The advantage of PTFE is a higher maximum temperature, up to 200℃, and somewhat better chemical resistance. These filter elements should be ultrasonically cleaned to give best results.


PVDF Sintered filter cartridge:
Sintered porous PVDF (Polyvinylidene fluoride) products are good choices when expose to harsh thermal, ultraviolet, ozone and chemical conditions. Porous PVDF prdoucts is extreme hard and with average pore size of 25 micron. It can work in temperature from -62 to 149℃.


PA/Nylon Sintered filter cartridge:
Nylon, trade name for polyamides (PA), is a semi-crystaline polymer that contains amine and carbonyl groups. There’re numerous versions. Nylon/PA has high strength and thermal resistance with a softening termperature of 190℃. Working temperature from -40℃ to 121℃, sintered PA/Nylon porous products have very high tensile strength, good abrasion and chemical resistance, and low coefficient of friction.



  Product Feature

  • ◪   High porosity (60%) to ensure a greater flow per unit area;

  • ◪   Smooth outer surface, impurities are not easy adhesion, back washing easy and thorough;

  • ◪   Anti-fouling ability: the small size of the filter so that impurities can’t be retained in the filter body;

  • ◪   Resistance to strong acid, alkali corrosion, resistance to organic solvents;

  • ◪   Excellent mechanical properties;

  • ◪   No particle release.

  • ◪   Product range and wide scope of application


Product Parameter



Fiter Cartridge dimensions
Regular size (mm)31x12x1000, 31x20x1000, 38x20x1000, 38x18x1000, 38x20x1200, 38x20x1300, 38x20x150, 38x20x400, 38x20x250, 38x20x200, 38x20x180, 38x20x150, 50x20x1000, 50x31x1000, 50x38x1000, 65x31x1000, 65x38x1000, 64x44x1000, 78x62x750mm, etc.
Other dimensionsCustomized by customer’s request.
Material of constructions
Filter media optionPE, HDPE, PTFE, PVDF, PA/Nylon etc
Connector typeFlat, Insert type, Thread type, Fin
End capsPP, M36, M30, M25, M22, M14, M12, or as request.
Performance
Removal rate0.3, 0.45, 1, 3, 5, 10,20, 30, 40, 50 μm
Maximum Operating Temperature≦ 82 ℃
Maximum Operating Pressure6.0bar



Product Details




part.1
Double open end or single open end

part.2
Welded with screw cap

part.3
Various dimension

part.4
Various design according to your drawing



Product Applications



Pharmaceutical and medical


Air and gas purification
Oil and gas filtration
Chemical industry
Water Treatment
Machinery and Pneumatics
