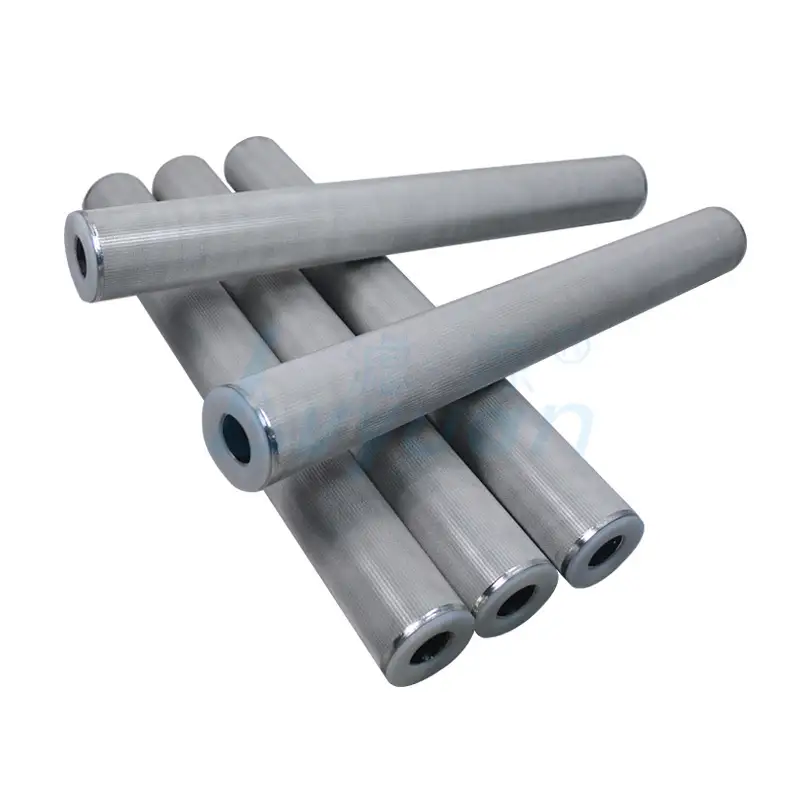

SS Sintered Filter Cartridge metal mesh filter Suppliers 1

SS Sintered Filter Cartridge metal mesh filter Suppliers 2

SS Sintered Filter Cartridge metal mesh filter Suppliers 3

SS Sintered Filter Cartridge metal mesh filter Suppliers

Start Port:

Guangzhou

Production Capacity:

400 units/Month

Place of Origin:

Guangdong, China

Payment:

T/T, Alibaba Trade Assurance, paypal

MOQ:

10pcs

Delivery Time:

In 7 to 15 working days

Certification:

SGS, ISO 9001

Brand:

OEM/Lvyuan

Inquiry

Write a Review

SS Sintered Filter Cartridge metal mesh filter Suppliers 4

Stainless steel filter element can get a large filtration area and with high flow rate. It extends cartridge life and have more dirt holding capacity.

Moreover, The stainless steel filter cartridges are designed for cleanable and reusable applications thereby eliminating frequent cartridge change out, so it can significantly reduce disposal cost.

Non-standard Stainless steel filter cartridges can be easily customized with various dimension, end cap, outer cage pattern etc. So as long as customer give us the picture and drawing of the ss filter cartridge, we can custom-make the exact ss filter element to you.

◆◆ Sintered Stainless Steel Filter Cartridges are the perfect choice for high temperature, high differential pressure and high viscosity applications. Manufactured with 304, 316 or 316L material, there’re mainly 3 types of stainless steel cartridge designs are widely used in the industry.

1. Plain cylindrical design SS wiremesh filter cartridge.
2. Pleated configuration design SS folded mesh filter cartridge.
3. Sintered SS316 metal powder type SS filter cartridge.

Product Feature

◪ Excellent mechanical strength.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ Temperature ratings from -73°C to 480°C.
◪ Various micron ratings available from 2um to 1000um nominal.
◪ Back flushing and cleanable for long service life.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ High permeability, no media migration.
◪ Customized dimension are welcome.

Product Parameter

Fiter Cartridge dimensions
Length	5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm)
Diameter	Ø25, 30, 50, 60, 65, 70mm
Other dimensions	Customized by customer’s request.
Material of constructions
Filter media	SUS304, 316， 316L stainless steel
Connector type	Flat, Insert type, Thread type, Fin
End caps	DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request.
Outside protection net	Optional
Sealing material	Silicone, NBR, EPDM, Buna, Teflon, etc
Performance
Removal rate	1, 3, 5, 10,20, 30, 40, 50, 100um, etc
Effective Surface area	0.65 sqm per 10" cartridge element
Operation Temperature	≦ 480℃
Cleaning method	back flushing, ultrasonic or other non-abrasive cleaning
Maximum Operating Pressure differential	4.0 bar

Product Details

SS Sintered Filter Cartridge metal mesh filter Suppliers 5

part.1

5 layers of sintered stainless steel mesh for high dirt holding capacity, including protective layer, filter layer, dispersion layer, 1st reinforcing layer and 2nd reinforcing layer.
