Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

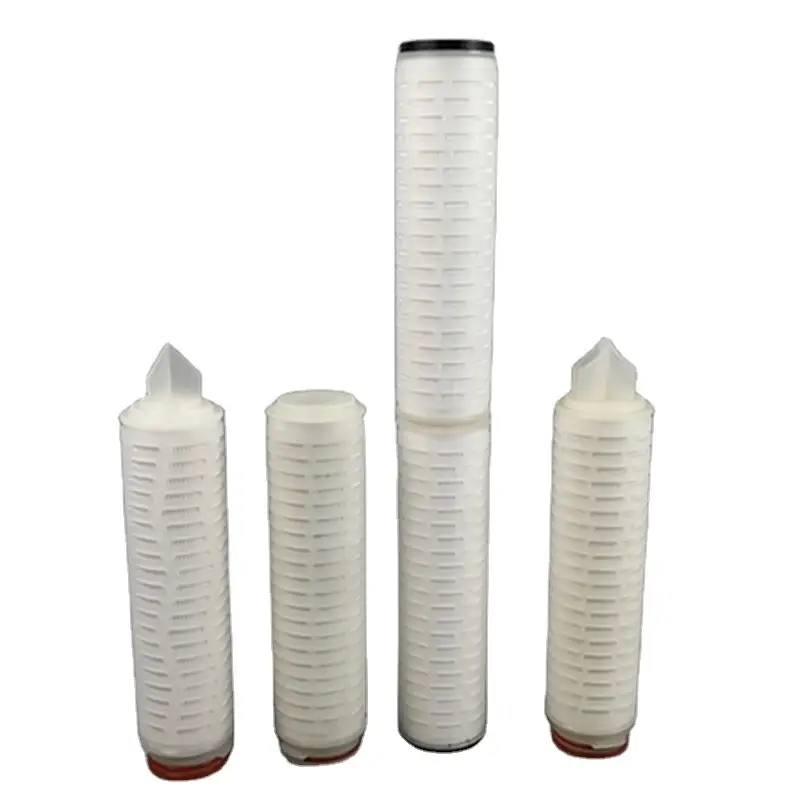

0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 1
0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 2
0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 3
0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 4
0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 5
0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 6
0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 1
0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 2
0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 3
0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 4
0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 5
0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 6

0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Condition:
    New
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    After Warranty Service:
    Online support
    Local Service Location:
    none
    Showroom Location:
    none
    Video outgoing-inspection:
    Provided
    Machinery Test Report:
    Not Available
    Marketing Type:
    Ordinary Product
    Warranty of core components:
    Not Available
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan / OEM
    Material:
    carton
    Weight:
    depends
    Size:
    depends
    Power:
    0
    Warranty:
    Unavailable
    filter media:
    up/dowm support:
    Polypropylene
    Support frame and end cap:
    Polypropylene
    O ring material:
    silicone,EPDM,NBR,viton,tflon
    Micron Rate:
    0.1 - 60 micron
    Length:
    10",20",30",40"
    diameter:
    69mm
    end cap:
    doe,222/fin,222/flat,226/fin,226/flat
    End cap sealed type:
    thermal welding
    Certification:
    SG/S/ISO9001
    Core Components:
    liquid filter accessories
    Supply Ability
    Supply Ability:
    100000 Piece/Pieces per Month

    0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adaptor

    Introduction

    Polypropylene filter is a kind of fixed aperture depth filter cartridge with the filter media of fine polypropylene fiber, the filter media comply with the FDA requirements. Filter micron rate range is from 0.1um to 60um. With the features of low pressure drop, high flow rate and long service life, polypropylene filter is the best choice as the pre filtration. The complete polypropylene structure has stable performance and wide chemical compatibility.



    Specifications and Parameters

    Filter media polypropylene filter membrane
    Length 10",20",30",40"
    Diameter 69mm
    micron rating (µm) 0.10,2,0.45,0.65,1,2,3,5,10,20,30,60
    end cap doe,222/fin,222/flat,226/fin,226/flat
    seal material silicone,EPDM,NBR,viton,teflon
    sealed type sweating soldering
    effective filtration area 0.4~0.7m2 /10"
    max. working temperature 80°C, 0.28Mpa
    Max positive pressure difference Δp0.42Mpa at 25°C
    Max negative pressure difference Δp0.28Mpa at 25°C
    sterilizing temperature 121 °C, 30min



          we still have filter media of PVDF/PTFE/PES/Nylon filter membrane~



    Structure                                                                                 0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 7

    Application

    Pharmaceutical industry: medicine liquid, cell debris, biological products filtration.
    Chemical industry: Organic solvents, chemical reagents, ink, plating solution filtration.
    Food industry: Drinking water, mineral water, soft drinks, beer, red wine, fruit wine filtration.
    Electronics industry: pre filtration of reverse osmosis water system, deionized water system.
    Air filtration: compressed air,N2,CO2 filtration.
    Other industry: Photoresist, magnetic media filtration.



     0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 9



     Recommendation pure water flow rate

    0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 11



    Pictures for polypropylene filter

    0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 13

    0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 15



    0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 17



    0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 19





    Package

    10 inch: 50PCS/CTN  400*400*685mm

    20 inch: 25PCS/CTN   400*400*685mm

    30 inch: 25PCS/CTN   835*435*425mm

    40 inch: 25PCS/CTN    1100*395*400mm





    End cap / Interface

    0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 21





    Our factory

    Guangzhou Lvyuan is a comprehensive enterprise, which is founded in year 2008 and located in Guangzhou city. we are specialized in manufacturing household water purifier and industrial water treatment machine as well as supply its accessories.

    Household water purifiers include under sink RO water purifier, wall mounted RO water purifier, commercial RO water purifier and active mineral direct drinking water purifier, stainless steel central water purifier and water purifier for pre filltration.etc. The accessories include all kinds of filter cartridge, such as PP, UDF, CTO, T33, string wound filter,pleated filter,UF membrane,RO membrane ect.

    Water treatment machine include RO water treatment machine, EDI ultrapure water treatment machine, ultrafiltration system,softening system,water reuse system, MBR biological processor, waste treatment system, anion and cation exchange system and bottled & barreled water system, etc. The accessories include all kinds of industrial filter cartridge, RO membrane, stainless steel filter housing,etc.

    All our products are manufactured under strict process and got final inspection before delivery. In addition, our household RO water purifier has got CE certification. Under our good quality and best after-sales service, we have enjoyed high reputation and get satisfactions with our clients in our industry. We are looking forwards to establishing business relationship with you in future.

       0.1 0.2 0.45 1 3 5 10 25 50 microns Polypropylene pp pleated filter element security filter cartridge with DOE or SOE end adapt 23



    If any of our products draw your interesting, pls contact Ms.Suki Su.

       Ph: +86 18664787674



    Concentrating on the quality assurance of water filter cartridges turns out to be helpful for the development of Lvyuan . The self-supporting fiber matrix enables a coreless design that is both economical and strong. The quality assurance process plays an important role in the quality of water filter cartridges. The self-supporting fiber matrix enables a coreless design that is both economical and strong.
