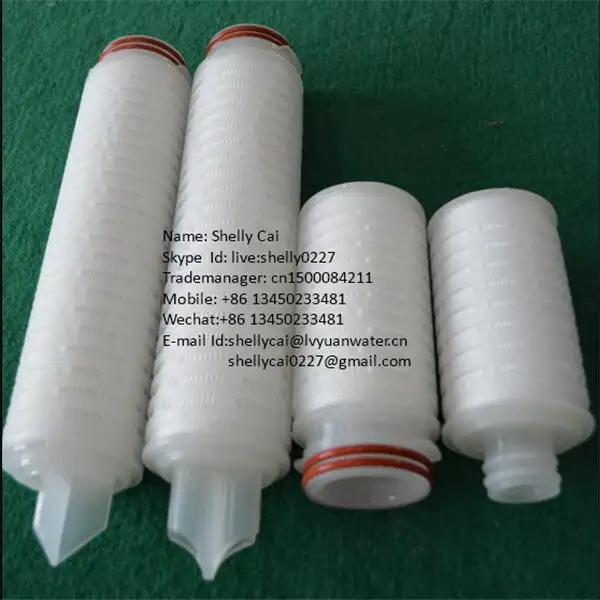

0.2 micron pvdf filter cartridge for industrial filter

0.2 micron pvdf filter cartridge for industrial filter

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Guangzhou LvYuan
Model Number:
LY-Pvdf-01
Product name:
pvdf filter cartridge
Length:
5"/10"/20"/30"/40"
Filter Media:
pvdf membrane
Micron Rate:
0.2, 0.45micron
End Cap:
DOE,222+Fin,222+Flat,226+Fin,226+Flat
ID:
30mm
OD:
68mm
Gasket/O ring material:
Silicon/EPDM/NBR/Viton/Teflon
Usage:
gas, water filter Cartridge
Color:
White
After-sales Service Provided:
No overseas service provided
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day

0.2 micron pvdf filter cartridge for industrial filter



Product Description

Basic Parameters

Length:5"/10"/20"/30"/40"

Filter Media:PTFE membrane

Micron Rate:0.2 micron, 0.45micron

End Cap:DOE,222+Fin,222+Flat,226+Fin,226+Flat

ID:30mm

OD:68mm

Gasket/O ring material:Silicon/EPDM/NBR/Viton/Teflon



Main Features

Excellent performance of high temperature resistance,repeat steam ability in situation

Has hydrophobic and hydrophilic membrane

Low pressure drop,high flow rate,long service life

Non fiber-releasing



Technical Data

effective filtration area:≥0.72m²(10 inch)

max.working pressure difference:  0.42Mpa at 25℃

max.back pressure difference:  0.35Mpa at 25℃

max. working temperature:80℃ at 0.173Mpa

sterilizing temperature:121℃, 30mins

water(air)flow rate:refer to following chart



Typical Applications

Pharmaceutical industry: medicine liquid, cell debris, biological products filtration.

Chemical industry: Organic solvents, chemical reagents, ink, plating solution filtration.

Food industry: Drinking water, mineral water, soft drinks, beer, red wine, fruit wine filtration.

Electronics industry: pre filtration of reverse osmosis water system, deionized water system.

Air filtration: fermentation tank, vent filter of hold tank,ultrapure gas filtration.
