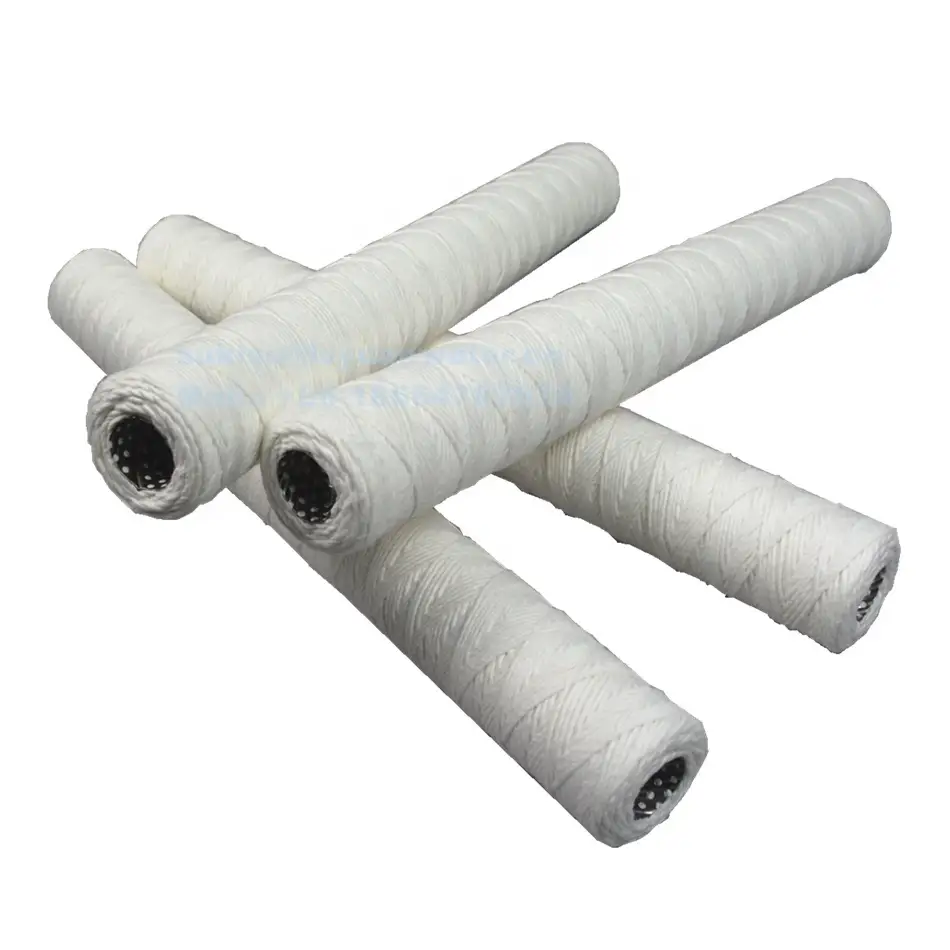

1/5/10/20/25/50 Micron Food Grade Cotton String Wound Cartridges Honeycomb filter cartridge with 304 316L stainless steel core

1/5/10/20/25/50 Micron Food Grade Cotton String Wound Cartridges Honeycomb filter cartridge with 304 316L stainless steel core

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan / OEM
Material:
as request, PP / Cotton / glass fiber
Weight:
depends
Size:
standard, customization
Power:
0
Warranty:
Unavailable
Product name:
honeycomb filter cartridge
Micron Rate:
1, 3, 5, 10 micron filters cartridge
Inner core:
PP or stainless steel
Length:
5", 10", 20", 30", 40", 50'' inch
Flow rate:
2-8gpm
Usage:
liquid filter, water filter parts
End caps:
DOE/222Fin/226Fin/222Flat/226Flat
Outer diameter:
60~62mm, Jumbo 110~115mm
Certification:
CE SGS ISO
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day string wound filter
Product Description

1/5/10/20/25/50 Micron Food Grade Cotton String Wound Cartridges Honeycomb filter cartridge with 304 316L stainless steel core

String wound filter cartridges or wound filter cartridge, spiral wound filter elements are made of Polypropylene / PP, absorbent/bleached cotton, or glass fiber wound yarn materials. Inner core materials PP, 304 stainless stee, and 316 stainless steel are available for option. It is decided by the application operation temperature and PH range.

PP string wound cartridge filter, cotton string wound cartridge filter and glass fiber cartridge filter can offer true dept filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand higher PSID and severe operating conditions.

Wound yarn filter cartridges can work very effectively a variety of industrial processing, such as in Pre-RO water treatment, Food & Beverage, Chemical filter solution, waste water treatment, petrochemical process, Electronic & semiconductor etc.

PP yarn wound filter cartridge with PP core

Cotton string wound filter cartridge with stainless steel core

Fiber glass string wound filter cartridge

OD 4.5'' Jumbo size BB PP wound cartridge, 10''x4.5'' and 20''x4.5''

Different end cap for option, code 0/3/6/7/8/9

Different dimension for option

Specification
Product
String wound filter cartridge
Material
Polypropylene, absorbent cotton, glass fiber
Precision filtration
1, 3, 5, 10, 20, 25, 30, 50, 75~100 micron
Outer diameter
60~62mm, Jumbo 110~115mm, or customized as request.
Inner diameter
28mm or 30mm
End cap Code
DOE=code 0, 222+Fin=code 7, 222+Flat=code 3, 226+Fin=code 8, 226+Flat=code 6, code 9=customized
Seal Material
EPDM, Silicone, Viton, NBR, Teflon
Length
5'', 10'', 20'', 30'', 40'', 50'', 60'', 70'' or as request
Core material
Polypropylene or stainless steel
Max differential pressure
4.5bar at 25°C
Replacment differential pressure
1-1.5 bar
Max operating temperature
PP with PP core:80 °C
PP with stainless steel core: 100°C
Absorbent cotton with SS core:180°C
Glass fibre with SS core: 300°C
Application

1. Pre-RO water treatment, like drinking water, power, plating and oil industry.

2. Food and Beverage industry
3. Chemical, solvent, Pharmaceuticals and ink filter solution
4. Waste water treatment
5. Petrochemical process
6.Electronic & semiconductor etc.
