10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 1

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 2

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 3

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 4

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 5

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment

Inquiry

Write a Review

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan / OEM

Model Number:: LY-SW series

Product name:: 5 micron cartridge filter

Micron Rate:: 1, 3, 5, 10 micron filters cartridge

Material:: PP / Cotton / glass fiber

Inner core:: PP or stainless steel

Length:: 5", 10", 20", 30", 40", 50'' inch

Gasket/O ring material:: Silicon/EPDM/Viton

Usage:: liquid filter, water filter parts

Inner diameter:: 28, 30mm

Outer diameter:: 60~62mm, Jumbo 110~115mm

Certification:: CE SGS ISO

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Day 5 micron cartridge filter

Product Description

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 6

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment

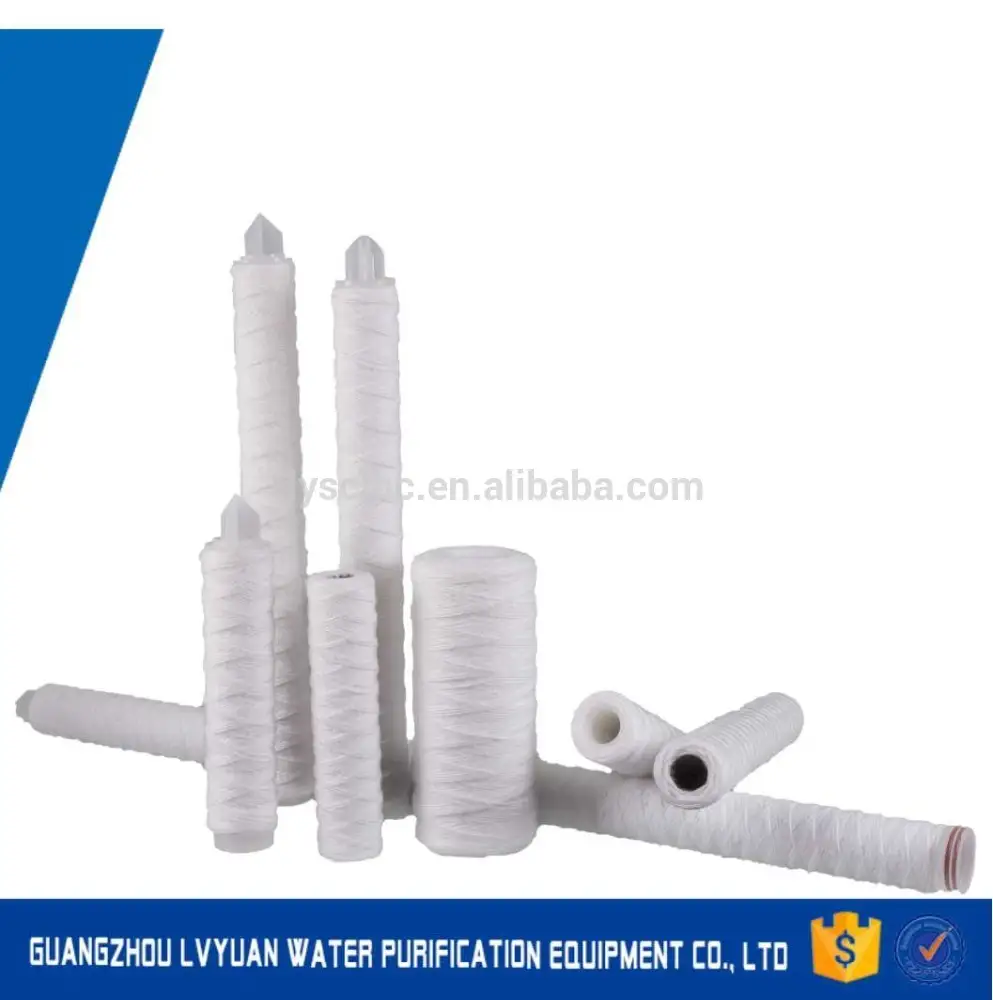

Our String spiral wound filter cartridge is made of the textile fabric string (polypropylene / PP, absorbent cotton, glass fiber) preciously winding onto the multi-hole axles. They can offer true dept filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand higher PSID and severe operating conditions. This kind of cartridge is use for industrial pre-filtering water treatment.

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 14

PP string wound filter cartridge

Cotton string wound filter cartridge

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 16

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 18

5 to 40 inch spiral string wound filter cartridge

Fiberglass string wound filter cartridge

Application

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 20

1. Pre-filter for drinking water treatment
2. Acid Base liquid in Chemical process
3. Food and Beverage industry
4. Semiconductor
5. Pharmaceuticals

Specification

Product	String wound filter cartridge
Material	Polypropylene, absorbent cotton, glass fiber
Precision filtration	1~100 micron
Outer diametr	60~62mm, Jumbo 110~115mm
Inner diameter	28mm or 30mm
Code	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Seal Material	EPDM, Silicone, Viton
Length	5'', 10'', 20'', 30'', 40'', 50''
Max differential pressure	2 kgf/cm²
Max pressure	4 kgf/cm²
Max operating temperature	PP with PP core:60 °C PP with SS core: 100 Absorbent cotton with SS core:120 Glass fibre with SS core: 180~300
Operating differential pressure	0.1kgf/cm2

Related Products

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 22

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 24

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 26

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 28

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 30

Why Choose us

Guangzhou Lvyuan Water Purification Equipment Co.,Ltd is a comprehensive enterprise. As a Leader Manufacturer in Guangzhou, China, we have many competitive products, including:
1. All kinds of filter Cartridges, pleated, sintered, string wound, melt blown
2. Stainless steel Cartridge filter housings and bag filter housings
3. RO, UF water purifier and equipment
4. Many kinds of Water treatment equipments
5. Many kinds of Water purifiers and equipments, water softners, and more.
We devote to water filtration development for more than 10 years. We can supply advanced technical support and solution for all of our customers during and after warranty period.

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 32

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 34

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 36

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 38

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 40

Packing & Delivery

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 42

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 44

10 20 30 40 inch 5 micron cartridge filter PP Yarn Sediment in Water treatment 46

FAQ

1. Q: Are you factory?

A: Yes, we are the professional manufacturer with continuous and improved R & A production, sales and service supply. We will always provide the best technical service support to our clients both in and after warranty period.
2. Q: How to get a quotation?
A: In order to send you our best price, please kindly inform us detail product parameters and order quantity.
3. Q: Can I get your products with our logo and design?
A: Customized service is available. We can OEM or ODM with your logo.
4. Q: What's the MOQ ?

A: We can offer the quantity you required, as we don't dictate MOQ terms.
