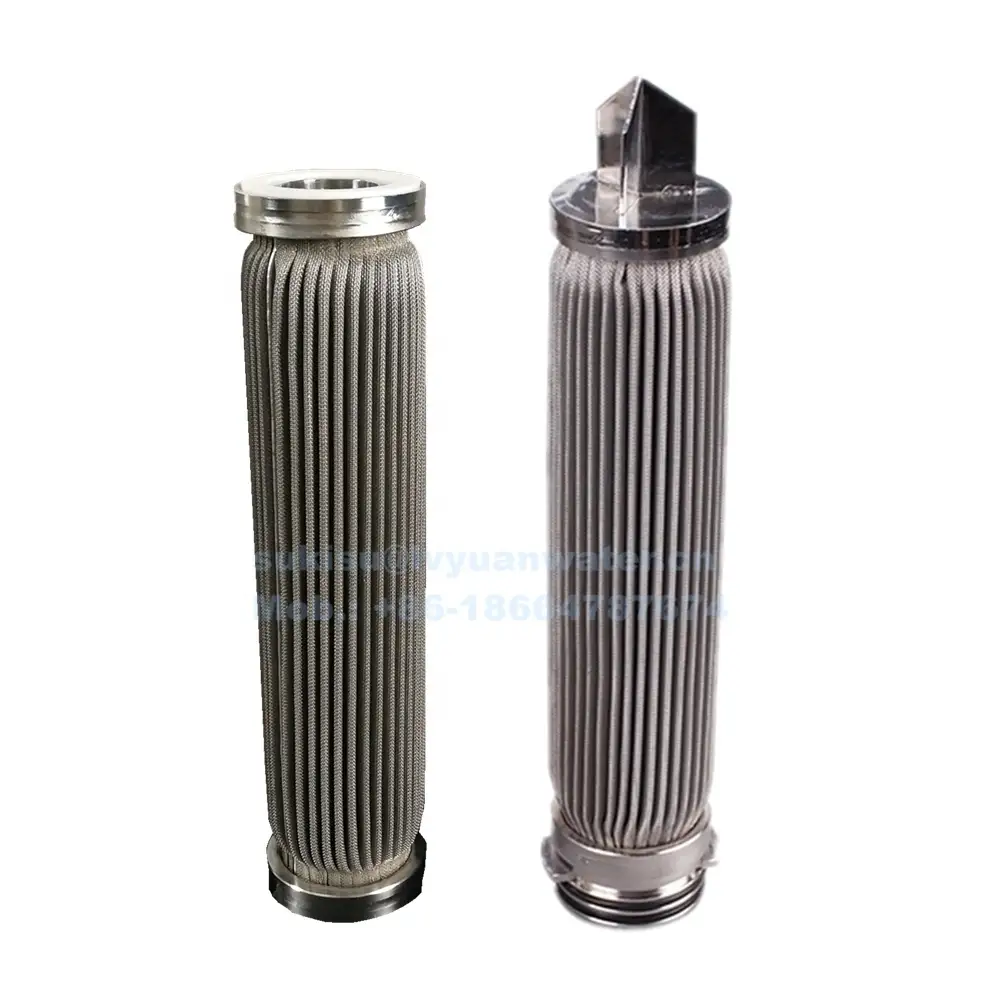

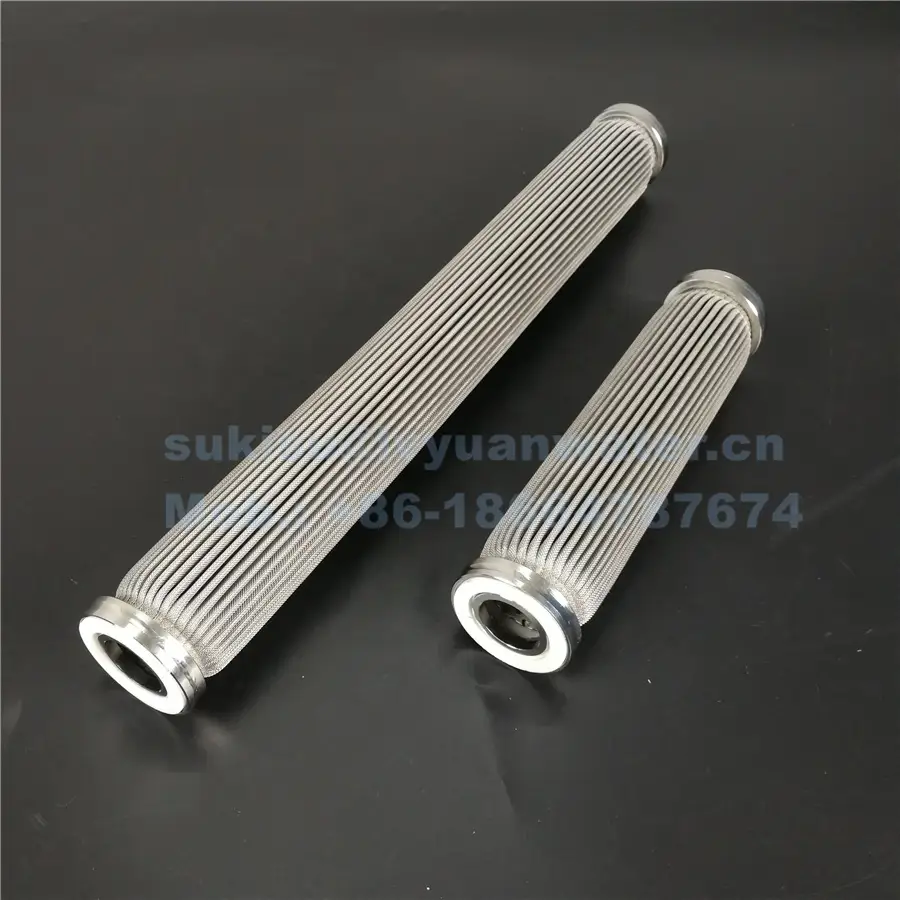

10/20/30/40 inch High Pressure Stainless Steel Pleated Filter Cartridge for oil water purification

Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Pressure vessel
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan/OEM
Warranty:
1 Year
After-sales Service Provided:
Online support
Product name:
stainless steel pleated filter
Micron Rate:
0.1 to 400 micron
OEM dimension:
Available
Length:
5", 10", 20", 30", 40", 50'', 60'' inch
Stainless steel Material:
304, 316, 316L
Interface form:
222,226,215, M36, M24, M22, M20 thread interface
Layer:
pleated/mesh cartridge filter
Usage:
gas, liquid filtration
Heat resistence:
- 200 -- 500 degree
Working pressure:
0.1 to 30Mpa
Product Description
10/20/30/40 inch High Pressure Stainless Steel Pleated Filter Cartridge for oil water purification 7

Plain cylindrical design Stainless Steel Wire Mesh filter cartridge

10/20/30/40 inch High Pressure Stainless Steel Pleated Filter Cartridge for oil water purification 9

Pleated configuration design Stainless Steel folded mesh filter cartridge

10/20/30/40 inch High Pressure Stainless Steel Pleated Filter Cartridge for oil water purification 11

Sintered Porous Stainless Steel SUS316 Powder Filter Cartridge

10/20/30/40 inch High Pressure Stainless Steel Pleated Filter Cartridge for oil water purification 13

Customized Porous Stainless Steel Filter cartridge with SS support Frame

10/20/30/40 inch High Pressure Stainless Steel Pleated Filter Cartridge for oil water purification

Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.

Fiter Cartridge dimensions
Length
5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm)
Diameter
Ø25, 30, 50, 60, 65, 70mm
Other dimensions
Customized by customer's request.
Material of constructions
Filter media
SUS304, 316, 316L stainless steel
Connector type
Flat, Insert type, Thread type, Fin
End caps
DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request.
Outside protection net
Optional
Sealing material
Silicone, NBR, EPDM, Buna, Teflon, etc
Performance
Removal rate
1, 3, 5, 10,20, 30, 40, 50, 100um, etc
Effective Surface area
0.65sqm per 10" cartridge element
Operation Temperature
≦480℃
Cleaning method
back flushing, ultrasonic or other non-abrasive cleaning
Maximum Operating Pressure differential
4.0bar

Features:

1.Excellent mechanical strength.
2. High dirt holding capacity.
3. High pressure resistance, withstand capacity and low pressure drop.
4. Temperature ratings from -73°C to 480°C.
5. Various micron ratings available from 2um to 1000um nominal.
6. Back flushing and cleanable for long service life.
7. Strong corrosion resistant for wide chemical compatibility.
8.High permeability, no media migration.
9.Customized dimension are welcome.

Application

Stainless steeel Filter Cartridge Applications:
1. Water filtrations
2. Hydraulics
3. Automotive
4. Pneumatics
5. Chemical
6. Petrochemical
7. Medical
8. Oil & gas
9. Aeronautical
10. Mining
11. Food & beverage
12. Pharmaceutical

Products Show
10/20/30/40 inch High Pressure Stainless Steel Pleated Filter Cartridge for oil water purification 15
10/20/30/40 inch High Pressure Stainless Steel Pleated Filter Cartridge for oil water purification 17
10/20/30/40 inch High Pressure Stainless Steel Pleated Filter Cartridge for oil water purification 19
10/20/30/40 inch High Pressure Stainless Steel Pleated Filter Cartridge for oil water purification 21
10/20/30/40 inch High Pressure Stainless Steel Pleated Filter Cartridge for oil water purification 23
stainless steel wire mesh filter cartridge
Various mesh or filtration micron rate available for option.
Slim size 2.5'' OD, and Jumbo cartridge 4.5'' OD.
