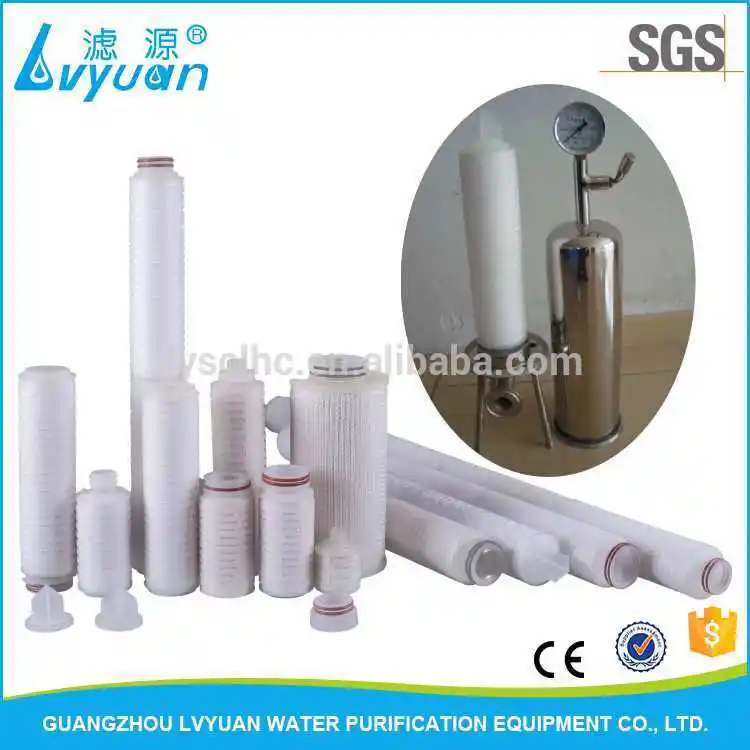

10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 1
10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 2
10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 3
10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 4
10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 5
10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 6
10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 1
10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 2
10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 3
10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 4
10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 5
10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 6

10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan / OEM
    Model Number:
    LY-PF series
    Product name:
    sanitary inline filter housing cartridge
    Micron Rate:
    0.1 to 100 micron pleated filter cartridge
    Material:
    PP / PTFE / PES / Nylon 6 / PVDF
    Length:
    5", 10", 20", 30", 40" inch
    Filter Media:
    Polypropylene membrane
    End Cap:
    DOE,222+Fin,222+Flat,226+Fin,226+Flat
    Gasket/O ring material:
    Silicon/EPDM/NBR/Viton/Teflon
    Usage:
    liquid filter elements, water filter parts
    Inner core:
    PP / stainless steel
    Certification:
    CE SGS ISO
    Supply Ability
    Supply Ability:
    5000 Piece/Pieces per Day sanitary inline filter housing cartridge
    Product Description
    10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 7

    10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter

    The PP pleated filter cartridge uses pleated polypropylene fiber membrane as filtration media.

    The PP Polypropylene cartridge is an advanced fixed intensive filter and available in a wide range of retention rating from 0.1μm to 60μm. The pore size is not affected by the vibration of feeding pressure. Due to its unique low differential pressure, high flow volume, excellent filtration capability attracted many customers..

    10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 9
    Application
    10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 11

    1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
    2. Food industry: filtration of beverage, beer and mineral water.
    3. Chemical industry: filtration of organic solvent and ink.
    4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
    5. Others: filtration of plating solution, process fluids, photoresist and magnetic media

    Specification
    Filter Media Option
    PTFE filter cartridge
    Nylon 6 filter cartridge
    PES filter cartridge
    PVDF filter cartridge
    Length
    5, 10, 20, 30, 40
    5, 10, 20, 30, 40
    5, 10, 20, 30, 40
    5, 10, 20, 30, 40
    5, 10, 20, 30, 40"
    Micron Rate
    0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron
    0.2, 0.45 micron
    0.2, 0.45, 0.65, 1 micron
    0.1, 0.2, 0.45, 0.65 micron
    0.2, 0.45 micron
    End Cap
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
    Inner Diameter
    28mm
    28mm
    28mm
    28mm
    28mm
    Outer Diameter
    68mm (can be customized)
    68mm (can be customized)
    68mm (can be customized)
    68mm (can be customized)
    68mm (can be customized)
    Jumbo Size
    ID: 30mm, OD: 110~115mm
    ID: 30mm, OD: 110~115mm
    ID: 30mm, OD: 110~115mm
    ID: 30mm, OD: 110~115mm
    ID: 30mm, OD: 110~115mm
    Gasket/O ring material
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Silicon/EPDM/NBR/Viton/Teflon
    Effective filtration area
    0.4-0.7m²
    ≥0.72m²
    ≥0.6m²
    ≥5m²
    ≥0.72m²
    Max.working pressure difference
    0.42Mpa at 25℃
    0.42Mpa at 25℃
    0.42Mpa at 25℃
    0.42Mpa at 25℃
    0.42Mpa at 25℃
    Max.back pressure
    0.28Mpa at 60℃
    0.35Mpa at 60℃
    0.35Mpa at 25℃
    0.21Mpa at 25℃
    0.21Mpa at 25℃
    Max. working temperature
    88℃ at 0.28Mpa, 60℃ at 0.42Mpa
    142℃ at 0.276Mpa
    49℃ at 0.21Mpa
    140℃ at 0.28Mpa
    80℃ at 0.173Mpa
    Sterilizing temperature
    121℃, 30mins
    121℃, 30mins
    121℃, 30mins
    121℃, 30mins
    121℃, 30mins
    10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 13
    10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 15
    Related Products
    10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 17
    10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 19
    Why choose us

    Guangzhou Lvyuan Water Purification Equipment Co.,Ltd is a comprehensive enterprise. As a Leader Manufacturer in Guangzhou city, our competitive product lines including:
    1. All kinds of Filter Cartridges, Pleated / Melt Blown / Sintered etc.
    2. Cartridge filter housings and bag filter housings
    3. RO, UF, MBR water purifier and equipment
    4. Water treatment equipments
    5. Many kinds of Water purifiers and equipments, water softners, and more.
    We devote to filtration development for more than 10 years. We can supply advanced technical support and solution for all of our customers during and after warranty period.

    10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 21
    10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 23
    10 20 40 inch Sanitary inline filter housing cartridge with 226 222 Fin Polypropylene filter 25
    FAQ

    1. Q: Are you factory?
    A: Yes, we are the professional manufacturer with continuous and improved R & A production, sales and service supply. We will always provide the best technical service support to our clients both in and after warranty period.
    2. Q: How to get a quotation?
    A: In order to send you our best price, please kindly inform us detail product parameters and order quantity.
    3. Q: Can I get your products with our logo and design?
    A: Customized service is available. We can OEM or ODM with your logo.
    4. Q: What's the MOQ ?
    A: We can offer the quantity you required, as we don't dictate MOQ terms.
