    Overview
    Quick Details
    Applicable Industries:
    Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company
    After Warranty Service:
    Online support
    Local Service Location:
    none
    Showroom Location:
    none
    Video outgoing-inspection:
    Provided
    Machinery Test Report:
    Provided
    Marketing Type:
    Ordinary Product
    Warranty of core components:
    1 Year
    Core Components:
    Pressure vessel
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan/OEM
    Warranty:
    1 Year
    After-sales Service Provided:
    Online support
    Product name:
    acf filter cartridge
    Size:
    Customized
    Micron Rate:
    1, 3, 5, 10, 20, 50, 100um
    Material:
    activated carbon, coconut shell
    Length:
    OEM, 5", 10", 20", 30", 40"
    Outer diameter:
    OEM, 50, 60, 70, 80mm
    End cap:
    DOE,SOE,222,226,215, M36, M24, M22, M20 thread interface
    Certification:
    ISO9001
    Usage:
    Air or Water Purification
    Working pressure:
    0.1 to 30Mpa
    Supply Ability
    Supply Ability:
    5000 Piece/Pieces per Day carbon fiber water filter

    10 20 inch Slim Jumbo ACF Activated Carbon Fiber Cartridge for Water Purifier Filtration

    Product Description
    10 20 inch Slim Jumbo ACF Activated Carbon Fiber Cartridge for Water Purifier Filtration 7

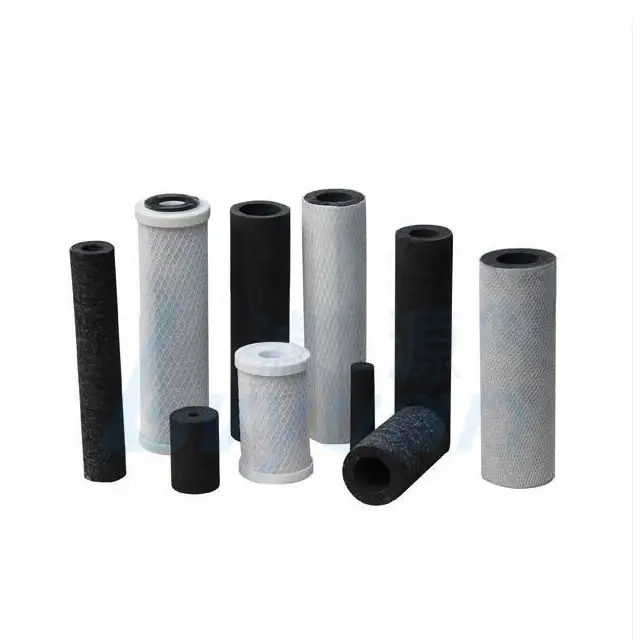

    10 20 inch Slim Jumbo ACF Activated Carbon Fiber Filter Cartridge for Water Purifier Filtration

    LVYUAN can custom-make industry-standard sized sintered carbon blocks Filter Element to suit the requirements of OEMs worldwide.


    LVYUAN activated carbon fiber filter cartridge is combined with the performance of depth filtration with the absorption of activated carbon fine. More than 80% of the carbon atoms of the carbon fiber filter are locatedd on the inner and outer surfaces, and they form a unique adsorption structure, which is called a surface solid. The outside deep filter media can remove particles while the activated carbon held within the filter cloth absorb the smell, odor, sediment, pigment, VOC, and organic chemicals. The inside fiber filter prevents carbon particles and fine pollutants form passing through, thus increasing an efficient quality and integrated filtration.

    10 20 inch Slim Jumbo ACF Activated Carbon Fiber Cartridge for Water Purifier Filtration 9
    10 20 inch Slim Jumbo ACF Activated Carbon Fiber Cartridge for Water Purifier Filtration 11
    10 20 inch Slim Jumbo ACF Activated Carbon Fiber Cartridge for Water Purifier Filtration 13
    Specification
    Name
    Activated Carbon Fiber Filter Cartridge
    Filter Media
    Activated carbon, (other anti-scale, heavy metal removal material available for option.)
    Material
    Coconut shell, Coal carbo
    Iodine value
    600 to 1500 available
    Filtration rate
    1um, 3um, 5um, 10um, 20um, 30um, 50um, 80um, 100um, 120um.
    Dimension
    can be custom-made according to customer's requirement
    Length
    5, 10, 20, 30, 40 inch, OEM
    Outer diameter
    50, 60, 70, 80mm, OEM
    End cap
    DOE, M20, M30,M36, M42, 215, 222, 226, OEM
    Gasket/Oring material
    Silicone, EPDM, NBR, Viton etc
    Netting material
    Polypropylene
    Operating temperature
    ≤60ºC
    Maximum operating pressure
    10 bar
    Features

    1. High dirt holding capacity, longer service life.

    2. Filtration & adsorption integrated.

    3. Strong adsorption capacity, longer service life.

    4. Fits to all the standard filter housings.

    5. Chlorine, color, odor, organic matter removal.

    Application

    1. RO water pre-treatment in municipal tap water.

    2. Pre filtration for drinking water filter

    3. Solution to remove oil and aromatic.

    4. Removing dissociative chlorine and volatile organics compounds (VOS) in solution.

    5. Industry water, plating filtration.

    6. Food and Beverage.

    7. Remove smell, odor, color and organic pigment.

    8. Organic chemical removal.

    Our Company
    10 20 inch Slim Jumbo ACF Activated Carbon Fiber Cartridge for Water Purifier Filtration 15
    10 20 inch Slim Jumbo ACF Activated Carbon Fiber Cartridge for Water Purifier Filtration 17
    10 20 inch Slim Jumbo ACF Activated Carbon Fiber Cartridge for Water Purifier Filtration 19
    Certifications
    10 20 inch Slim Jumbo ACF Activated Carbon Fiber Cartridge for Water Purifier Filtration 21
    Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has a sound sales network and a very dynamic sales force. With a large number of tapered fixing holes inside, it has a high dirt holding capacity. It drives sales and has very substantial economic benefits. With a large number of tapered fixing holes inside, it has a high dirt holding capacity.
