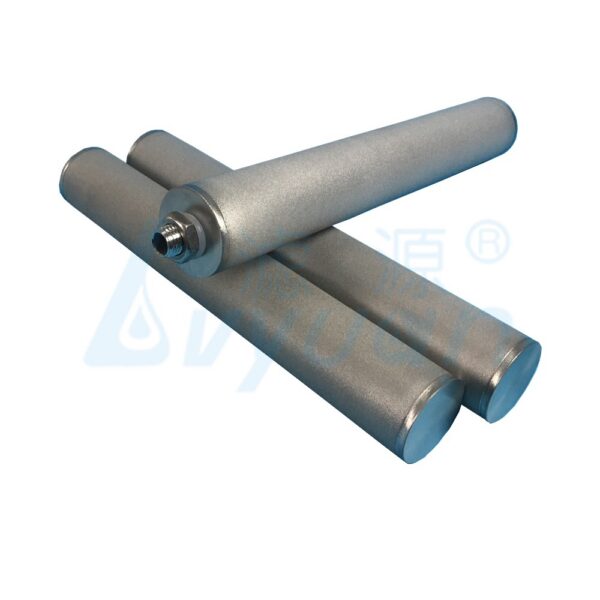

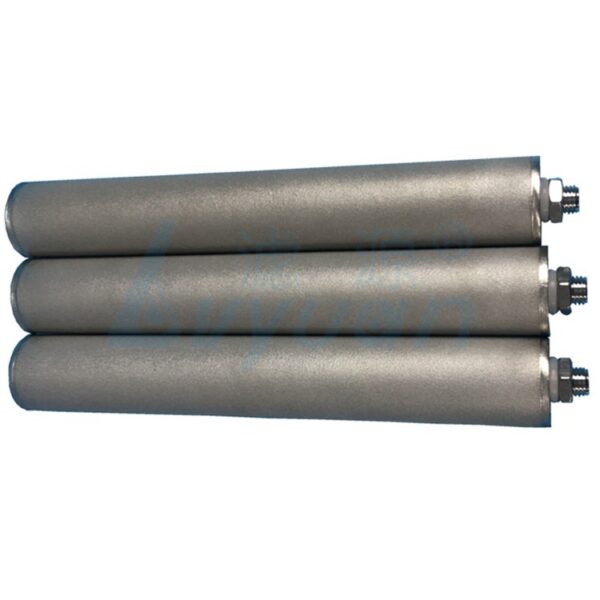

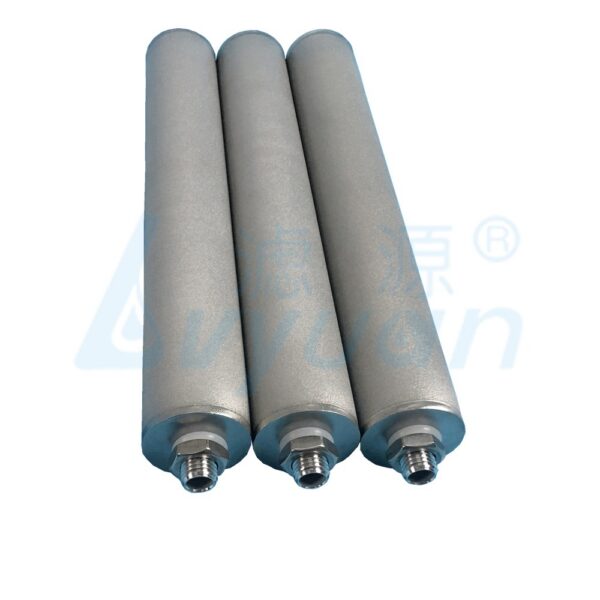

10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration

10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration

10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration
  • 10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration
  • 10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration
  • 10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration
  • 10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration
  • 10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration
  • 10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration
  • 10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration
  • 10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration
  • 10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration
  • 10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration

10 inch 1 micron stainless steel SS316 metal porous sintered filter cartridge for liquid filtration

MOQ
1 unit
Payment
D/P, T/T, Western Union, MoneyGram, Alibaba Trade Assurance, paypal
Place of Origin
Guangdong, China
Brand
OEM/Lvyuan
Certification
ISO 9001
Delivery Time
Within 7 working days
Start Port
Guangzhou
Production Capacity
400 units/Month
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. The design of the structure makes sintered metal filter very easy to operate. It can effectively control filtration precision
2. As per outer packing for sintered metal filter , Guangzhou Lvyuan Water Purification Equipment Co., Ltd. promises to put into high cost to keep it solid enough. It features a high flow rate and stable filtering accuracy
3. The product is of high quality. Because it has been tested for several times and its superior quality and can withstand the test of the time. All its elements are made with FDA compliant material for food and beverage contact
4. A number of quality tests will be carried out to ensure that products meet industry quality standards. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency
5. Systematic quality control: it is the key control factors in the whole production process. From development to the shipment, the quality of this product is under the whole control of the quality team. It offers excellent filtration and good thermal stability

The stainless powder sintered filter is made by molding of stainless powder through high temperature sintering, also it adopts unique technology and strictly control production technique(include power grain distribution, molding and sintering).


The filter is characterized by high machinery strength, high conditions can be adjusted so as to produce the porous metal sintered filter with a wider precision scope. High-temperature resistance and Good air permeability.


Excellent machinery strength, applicable to the high temperature, high pressure and strong corrosivity.



◆◆ Main application cases


1. Filtration and recovery of catalyst.


2. Hot gas filtration in petrochemical industry


3. Purification of high temperature flue gas of metallurgy industry


4. Dust recovery of solid emulated bed and gas


5. Dust and end gas purification of thermal power and nuclear electric power generation.




  Product Feature


  • ◪   High-porosity and good air permeability, no media migration.

  • ◪   High dirt holding capacity.

  • ◪   High pressure resistance, withstand capacity and low pressure drop.

  • ◪   High temperature resistance,Especially applicable to the hot gas filtration

  • ◪   Various micron ratings available from 1 μm to 200 μm nominal.

  • ◪   Strong corrosion resistant for wide chemical compatibility.

  •   Made entirely of SS316 or SS316L, cleanable and reusable

  • ◪   Customized dimension are welcome.


Product Parameter



Fiter Cartridge dimensions
Length5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm)
DiameterØ60, 65, 70, 80 mm
Other dimensionsCustomized by customer’s request.
Material of constructions
Filter mediaSUS316, 316L stainless steel
Connector typeFlat, Insert type, Thread type, Fin
End capsDOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request.
Sealing materialSilicone, NBR, EPDM, Buna, Teflon, etc
Performance
Removal rate0.2-200 μm, etc
Operation Temperature≥ -270ºC, ≤500ºC
Cleaning methodback flushing, ultrasonic or other non-abrasive cleaning
Maximum Operating Pressure differential4.0 bar



Product Details




part.1
The powder grain size and technique conditions can be adjusted so as to produce the porous metal sintered filter with a wider precision scope.


part.2
Stable shape, high shock resistant and alternating load capacity are superior to other metal.


part.3
It can be manufactured as different products with different shapes and precision. Also can be matched with various interfaces by welding process.



Product Applications



Water treatment plant


Oil industry
Engineering industries
Chemical filtration
Petrochemical, oil & gas filtration
Pharmaceutical and Medical
Aviation kerosene
Power plant
Beverage industry
