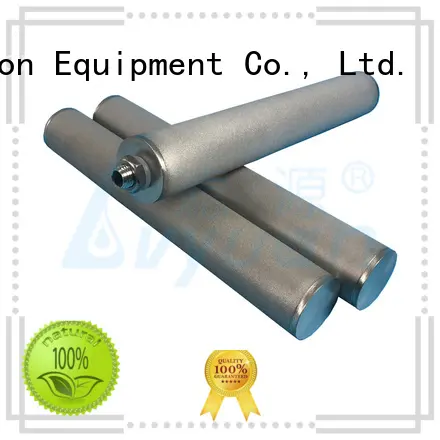

10 Inch 1 Micron Stainless Steel SS316 Metal Porous Sintered Filter Cartridge For Liquid Filtration1
1. Any color and any size are available for sintered filter cartridge .
2. a team of skilled quality controllers handles the quality checks that are conducted to examine and ensure the flawlessness of the offered products.
3. Our customers all appreciate the good moisture control and insulation performance of this product, and it can be used all-year-round.
The stainless powder sintered filter is made by molding of stainless powder through high temperature sintering, also it adopts unique technology and strictly control production technique(include power grain distribution, molding and sintering).
The filter is characterized by high machinery strength, high conditions can be adjusted so as to produce the porous metal sintered filter with a wider precision scope. High-temperature resistance and Good air permeability.
Excellent machinery strength, applicable to the high temperature, high pressure and strong corrosivity.
◆◆ Main application cases
1. Filtration and recovery of catalyst.
2. Hot gas filtration in petrochemical industry
3. Purification of high temperature flue gas of metallurgy industry
4. Dust recovery of solid emulated bed and gas
5. Dust and end gas purification of thermal power and nuclear electric power generation.
Product Feature
◪ High-porosity and good air permeability, no media migration.
◪ High dirt holding capacity.
◪ High pressure resistance, withstand capacity and low pressure drop.
◪ High temperature resistance，Especially applicable to the hot gas filtration
◪ Various micron ratings available from 1 μm to 200 μm nominal.
◪ Strong corrosion resistant for wide chemical compatibility.
◪ Made entirely of SS316 or SS316L, cleanable and reusable
◪ Customized dimension are welcome.
Product Parameter
| Fiter Cartridge dimensions | |
| Length | 5’’ (125mm), 10’’ (250mm), 20’’ (500mm), 30’’ (750mm), 40’’ (1000mm) |
| Diameter | Ø60, 65, 70, 80 mm |
| Other dimensions | Customized by customer’s request. |
| Material of constructions | |
| Filter media | SUS316， 316L stainless steel |
| Connector type | Flat, Insert type, Thread type, Fin |
| End caps | DOE, SOE, 215, 222, 226, M20, M30, M42, 1’’ NPT/BSP or as request. |
| Sealing material | Silicone, NBR, EPDM, Buna, Teflon, etc |
| Performance | |
| Removal rate | 0.2-200 μm, etc |
| Operation Temperature | ≥ -270ºC, ≤500ºC |
| Cleaning method | back flushing, ultrasonic or other non-abrasive cleaning |
| Maximum Operating Pressure differential | 4.0 bar |
Product Details
Product Applications
Company Features
1. High quality of sintered filter cartridge helps Guangzhou Lvyuan Water Purification Equipment Co., Ltd. occupy big global market.
2. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. bases itself on independent research and development and independent innovation.
3. Emphasized on ss sintered filter cartridge , sintered steel filter is Guangzhou Lvyuan Water Purification Equipment Co., Ltd. service philosophy. Contact us! ss sintered filter has become the perpetual pursuit of Guangzhou Lvyuan Water Purification Equipment Co., Ltd. to improve himself. Contact us! Emphasized on sintered metal filter cartridge , sintered metal filter elements is Guangzhou Lvyuan Water Purification Equipment Co., Ltd. service principle. Contact us! Guangzhou Lvyuan Water Purification Equipment Co., Ltd. thinks that sintered stainless steel filter elements is the best way to guarantee its development. Contact us!
