Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

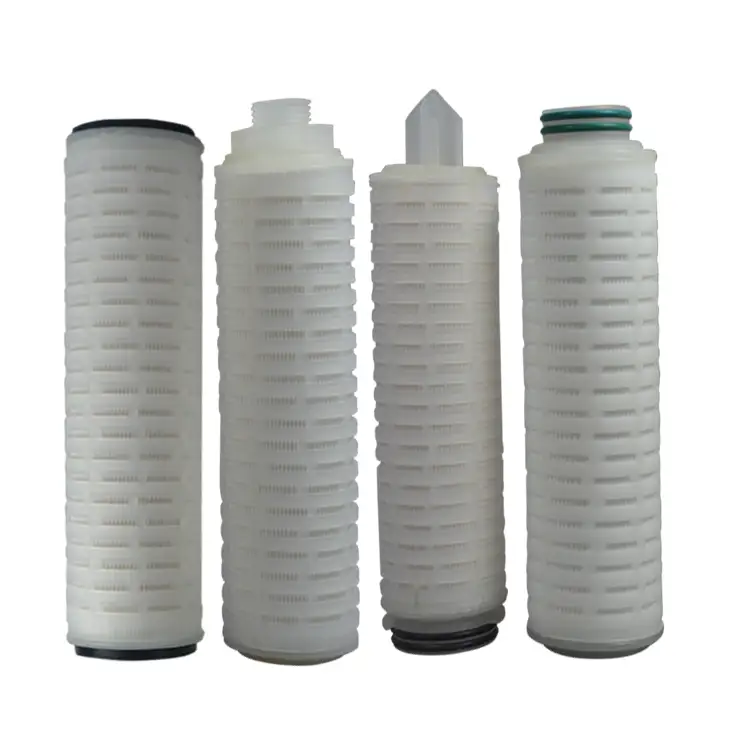

10 inch pp pleated filter cartridge for mineral water treatment plant 1
10 inch pp pleated filter cartridge for mineral water treatment plant 2
10 inch pp pleated filter cartridge for mineral water treatment plant 3
10 inch pp pleated filter cartridge for mineral water treatment plant 4
10 inch pp pleated filter cartridge for mineral water treatment plant 5
10 inch pp pleated filter cartridge for mineral water treatment plant 6
10 inch pp pleated filter cartridge for mineral water treatment plant 1
10 inch pp pleated filter cartridge for mineral water treatment plant 2
10 inch pp pleated filter cartridge for mineral water treatment plant 3
10 inch pp pleated filter cartridge for mineral water treatment plant 4
10 inch pp pleated filter cartridge for mineral water treatment plant 5
10 inch pp pleated filter cartridge for mineral water treatment plant 6

10 inch pp pleated filter cartridge for mineral water treatment plant

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Condition:
    New
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    After Warranty Service:
    Online support
    Local Service Location:
    none
    Showroom Location:
    none
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan / OEM
    Material:
    Pleated
    Weight:
    0
    Size:
    10"/20"/30"/40"50"/60"
    Power:
    0
    Warranty:
    Unavailable
    Name:
    Filter membrane material:
    PP/PVDF/PTFE/PES/Nylon
    Length:
    5 / 10 / 20 / 30 / 40 / 50 / 60 inch
    Conector:
    Fin/222/226/215/DOE/Thread
    Micron:
    0.22/0.5/1/3/5/10/25/50/75/100/150
    Sealing method:
    Hot melting welding
    Diameter:
    70mm/OEM
    Inner Core:
    PP/SS/OEM
    MOQ:
    Currently no limited

    10 inch pp pleated filter cartridge for mineral water treatment plant

    Product Description
    10 inch pp pleated filter cartridge for mineral water treatment plant 7

    Product Name
    10 inch SOE 222 1 micron PP/Polypropylene pleated sediment water filters for wine liquid filtration
    Filtration media
    PP/PTFE/PES/PVDF/Nylon
    Support material
    Polypropylene
    Core & Structural components
    Polypropylene
    Inner core
    PP/Stainless steel
    Packing method
    Polybag/Vacuum
    Filtration precision
    0.1μm, 0.2μm, 0.45μm,  0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
    Length
    2.5", 5". 10", 20", 30", 40", 50", 60", OEM
    Adaptor
    215/222/226/Fin/Flat/Thread/OEM
    Sealing method
    Hot melting welding
    Sealing gasket & O-ring material
    Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
    Effect filtration area
    ≥0.6m²
    Filter cartridge diameter
    69mm
    Max. working temperature
    PP: 88℃,0.27Mpa;PTFE: 80℃, 0.173Mpa;PES: 85℃, 0.28Mpa
    PVDF: 80℃, 0.173Mpa;Nylon: 49℃, 0.21Mpa
    Max. positive differential pressure
    0.42Mpa (25℃)
    Max. back pressure differential pressure
    0.28Mpa (25℃)
    Sterilization conditions
    121℃ 30min
    Applications
    Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

    Polypropylene microporous membrane filter

    PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
    feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

    10 inch pp pleated filter cartridge for mineral water treatment plant 9
    10 inch pp pleated filter cartridge for mineral water treatment plant 11

    PTFE membrane pleated filter

    Hydrophobic PTFE filter

    The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
    High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure.


    Hydrophilic PTFE filter

    The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure.

    Polyether Sulphone PES Pleated Filter

    The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.

    10 inch pp pleated filter cartridge for mineral water treatment plant 13
    10 inch pp pleated filter cartridge for mineral water treatment plant 15

    Nylon N66 pleated membrane filter cartridge

    The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries.

    PVDF pleated cartridge filter

    The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution.

    High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.

    10 inch pp pleated filter cartridge for mineral water treatment plant 17
    10 inch pp pleated filter cartridge for mineral water treatment plant 19

    Jumbo pleated membrane filter cartridge

    The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity.

    Detailed Images
    10 inch pp pleated filter cartridge for mineral water treatment plant 21

    DOE opened pleated filter

    The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.

    10 inch pp pleated filter cartridge for mineral water treatment plant 23

    OEM customized size filter

    Different length & variety end cap are optional.

    10 inch pp pleated filter cartridge for mineral water treatment plant 25

    Different end caps pleated filter

    SDouble Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.

    Application
    10 inch pp pleated filter cartridge for mineral water treatment plant 27

    RO WATER TREATMENT

    10 inch pp pleated filter cartridge for mineral water treatment plant 29

    BOTTLED MINERAL WATER

    10 inch pp pleated filter cartridge for mineral water treatment plant 31

    CHEMICAL TECHNOLOGY  FILTRATION

    10 inch pp pleated filter cartridge for mineral water treatment plant 33

    BEER & BEVERAGE FILTRATION

    10 inch pp pleated filter cartridge for mineral water treatment plant 35

    PETROCHMICAL INDUSTRY

    10 inch pp pleated filter cartridge for mineral water treatment plant 37

    SEA DESALINATION WATER EQUIPMENT

    Packing & Delivery
    10 inch pp pleated filter cartridge for mineral water treatment plant 39
    10 inch pp pleated filter cartridge for mineral water treatment plant 41
    10 inch pp pleated filter cartridge for mineral water treatment plant 43

    Container for shipment

    10 inch pp pleated filter cartridge for mineral water treatment plant 45

    Container for shipment

    Certifications
    10 inch pp pleated filter cartridge for mineral water treatment plant 47
    10 inch pp pleated filter cartridge for mineral water treatment plant 49
    10 inch pp pleated filter cartridge for mineral water treatment plant 51
    Our Company
    10 inch pp pleated filter cartridge for mineral water treatment plant 53
    10 inch pp pleated filter cartridge for mineral water treatment plant 55
    This product is able to help the worker in performing his or her duties in a better way than by hands. All its elements are made with FDA compliant material for food and beverage contact. This product can lead to large scale production, division of labor and specialization. These, in turn, will increase production, reduce costs and raise profits. All its elements are made with FDA compliant material for food and beverage contact.
