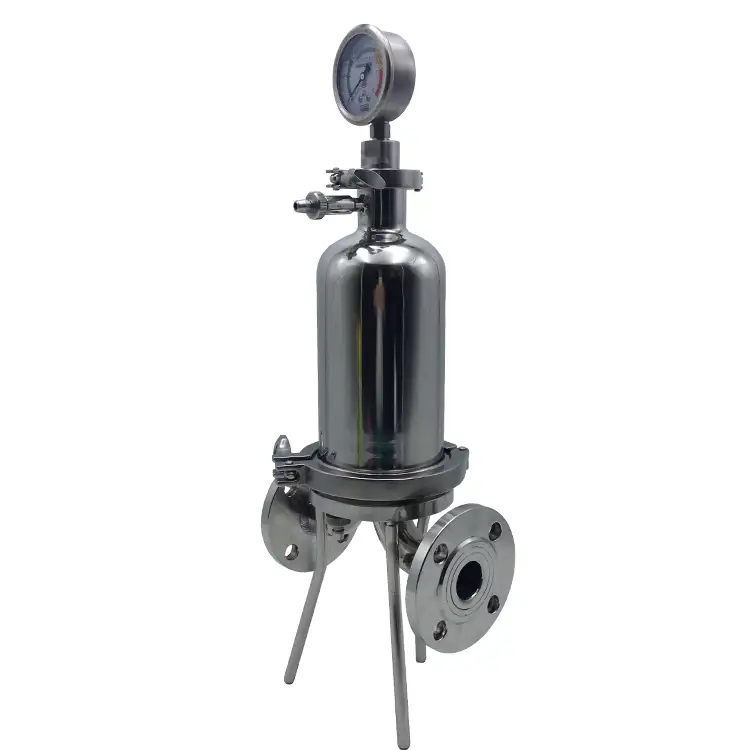

10 inch ss 304 316 filter stainless steel sanitary filter housing
Specifications and technical parameters
Shell material -304 or 316L stainless steel
Shell type -- liquid, gas
Length (matched cartridge) -5", 10", 20", 30", 40"
Connection methods (inlet and outlet): quick opening, screw thread, flange
Connection methods (shell and end plate): quick opening, flange
Sealing O-ring: Silastic, NBR, EPDM, Viton
Interface: various specifications
Other: special specification of filter shell can be customiz
General Decription
It consists of a stainless steel housing and filter elements. The filter housing is made of high-quality stainless steel. It is quick-opening, and clamp type replacement filter doesn't require tools. It is convenient and quick.
The filter element adopts different materials such as pleated filter cartridge as the replacement cartridges to remove tiny suspended, bacteria and other impurities in the water, the filter medium enters the housing body from the outside, is filtered through the filter element, and the liquid is discharged from the bottom, and the filter residue is blown back or compressed by compressed air. The liquid is mixed and flown back.
Sanitary stainless steel filter housing's main technical parameters:
Material | SS304 or SS316 |
Cartridge length | 5,10, 20 ,30 ,40 inch |
Cartridge core | 1 to 22 core |
Surface treatment | Polishing or matte treatment |
Closure | Clamp |
Inlet/outlet | Triclover is standard, others are optional |
Seal O-ring | Silicone (food grade) |
Drain/vent | 1/4 inch |
Working pressure | 0.1-0.6Mpa |
Working temperature | 5-150 degrees, depending on the material of pleated filter cartridge |
Thickness | 1.8mm or 2.0mm |
Body diameter | 102mm or 200mm |
Flow rate | 0.05-20 T/H |
It can filter out liquids and gases above 0.1um particles and bacteria, it has high filtration precision, fast transition speed, less adsorption, no the advantages of medium separation, acid and alkali corrosion resistance, and convenient operation.
Accept: customized length/material/core/filter cartridge/package
Any request are warmly welcomed O(∩_∩)O~~~pl feel free to contact me
10 years professional manufacturer experience.
2. We provide OEM and ODM customization service, you can find all kinds of industrial water filter parts at our company.
3. All products have a quality warranty. Our Certification: CE ISO SGS.
4. Our workers are efficient and our sales are professional. We will give the professional customized service.
5. Our products are exporting to more than 100 countries and regions.Received a good reputation.
6. Many cooperator stand by us for many years.
7. We are determined to provide the best service and excellent quality to our global customers. We will be more and more specialized company in the future.
