General Description

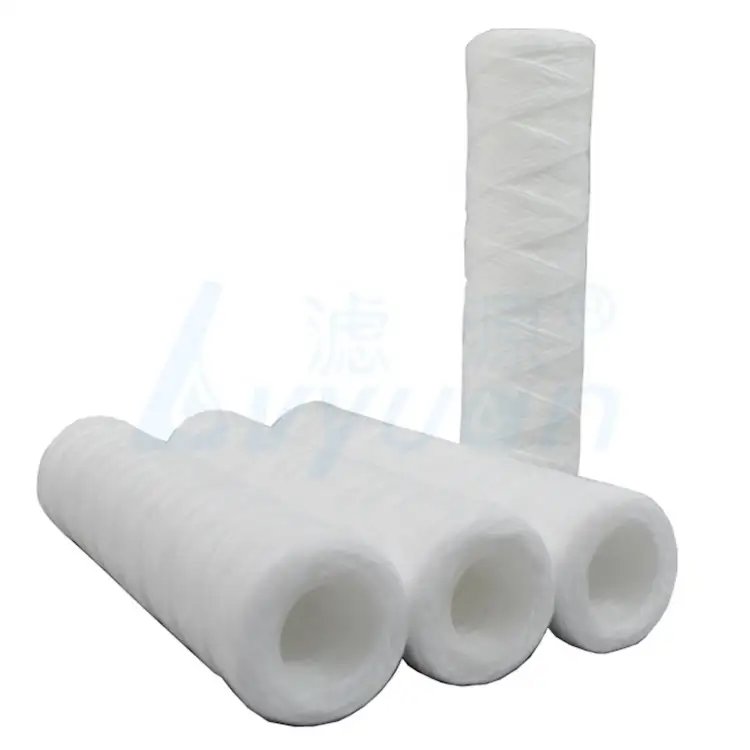

Guangzhou Lvyuan string wound filter cartridge is made of texile fiber (polypropylene string, Absorbent cotton string, acrylic fibre yarn, fiberglass), according to the specified process, it is winded tightly with the string in the polyporous core, structured by loose outer layers and tight inner layers, the filter cartridge porous outside it is big, inside it is small, it has the true deep filtration effect, it can remove the suspension, rust, partricles etc.
Features:
1. Good dirt-holding capacity
2. All kinds of adapters are avaliable
3. Various filter media fit with various application
4. Remove sand, silt, dirt and rust particles.
Lvyuan string wound filter specification:
Filter media | pp, Abosrbent cotton, fiberglass | |
Middle core | PP(polyrolenne)/SS(stainless steel) | |
End caps | PP | |
Seal material | SILICONE, EPDM, NBR, VITON, TEFLON, etc | |
Code | DOE, 222fin/222flat/226fin/226flat | |
Inner diameter | 28mm, 30mm, or customized | |
Outer diameter | 60mm, 63mm, 65mm, 110mm,115mm,or customized | |
Length | 10/20/30/40 inch, or customized | |
Performance | ||
Pp with pp core | ≤80℃ | |
Cotton with ss core | ≤180℃ | |
Fiberglass with ss core | ≤300℃ | |
Maxium differential Pressure | 4.5 bar at 25 ℃ | |
Replacement differential pressure | 1-1.5 bar |
Accept customized Length and OD, as you provide the specification Accept customized multi-adapter
more pic show :
1. Coffee/tea filtration system
3. Fountain beverage filtration
5. Drinking water filtration
7. Whole house water filter systems
2. Espresso filltration
4. Ice filtration
6. Reverse osmosis systems
8. Waste vegetable oil
Titanium filter membrane filter cartridge melt blown filter carbon filter
our products are stickly according the international standards and export to many countries and region.
1.10 years professional exporting experience.
2. We provide OEM and ODM customization service, you can find all kinds of filter cartridge and filter housing in our company.
3. All products have quality warranty. Our Certification:CE ISO SGS
4. Our workers are efficient and our sales are professional, We will give the professional customized service.
5.Our products are exporting to more than 100 countries and regions. Received a good reputation.
6. Many cooperator stand by us for many years.
7. We are determined to provide the best service and good quality to our global customers, We will be more and more professional company in the future.
We built a long-term relationship with our customers and earn a good reputation from our customers. Providing the best service as we can.
1. Accept customized size, material, Package, logo etc, as you offer your drawing and picture.
2. Accept Sample purchases order, accept MOQ=10.
3. We will reply within 20 hours.
4. Received the payment, we will contact you at the first time and arrange the production and let you know the latest process.
5. Any doubt, pl contact with us, we will help you solve the problem asap.
our workers are efficient and our sales are professional. we will try our best to make sure your goods delivery to your company asap.
any request are warmly welcomed and pl feel free to contact.
