Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.


20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 1
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 2
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 3
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 4
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 5
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 6
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 1
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 2
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 3
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 4
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 5
20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 6

20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Condition:
    New
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    After Warranty Service:
    Online support
    Local Service Location:
    none
    Showroom Location:
    none
    Video outgoing-inspection:
    Provided
    Machinery Test Report:
    Provided
    Marketing Type:
    Ordinary Product
    Warranty of core components:
    1 Year
    Core Components:
    Engine
    Place of Origin:
    China
    Brand Name:
    LVYUAN/OEM
    Material:
    Customized, SS304 / SS316L
    Weight:
    Customized
    Size:
    Customized
    Power:
    Customized
    Warranty:
    1 Year
    After-sales Service Provided:
    Online support
    Item Name:
    20 inch cartridge filter security filter cartridge housing
    Filter cartridge length:
    10" 20" 30" 40"
    Cartridge filters quantity:
    Single core
    Surface treatment:
    Polished & Sandblast
    Seal o-ring:
    Silastic/NBR/EPDM/Viton
    Top cap installed type:
    Clamp type
    Inlet & Outlet type:
    Internal thread
    Connector type:
    222/226/DOE
    Packaging method:
    Export standard box
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port
    Product Description
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 7

    PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port

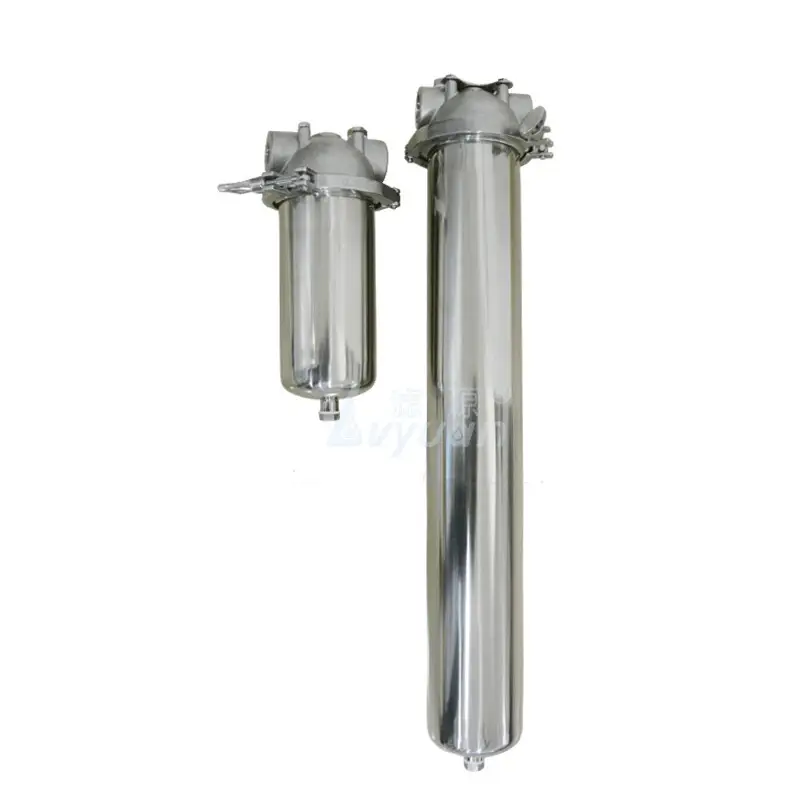

    LVYUAN  stainless steel cartridge filter housing offers wide range of flow capacities & contaminant holding capacities. Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter housing, filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge& choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 9
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 11
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 13
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 15
    Model No.
    Drain
    Vent
    In & Out
    Body diameter
    Thickness
    LY-FL-SC-L1
    1/4"
    1/4"
    1/2"  3/4"  1"
    89mm
    1mm-2mm
    LY-FL-SC-L2
    1/4"
    1/4"
    1/2" 3/4" 1"
    89mm
    1mm-2mm
    LY-FL-SC-L3
    1/4"
    1/4"
    1/2" 3/4" 1"
    89mm
    1mm-2mm
    LY-FL-SC-L4
    1/4"
    1/4"
    1/2" 3/4" 1"
    89mm
    1mm-2mm

    Features:

    1.Inlet & outlet size is 1/2", 3/4". 1" for easy installation.

    2. Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.

    3. Use the tap water pressure to provide power, no power consumption.

    4. Wall-mounted, counter-top, very simple installation.

    5. It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.

    6. Resistance to strong acid and alkali.

    7. Low cost, it fits different kind of filter elements.

    Structure:

    Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.

    Inside with the silicone gasket, it can be applied to cold & hot water temperature.

    High pressure resistance, corrosion resistance.

    Detailed Images
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 17
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 19
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 21
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 23
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 25
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 27
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 29
    Application

    1. Widely used in UF, RO, EDI security filtration and the end-filtration.

    2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.

    3. Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.

    4. Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.

    5. Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.

    6. Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.

    7. The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.

    8. Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.

    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 31

    BOTTLED WATER

    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 33

    BEVERAGE & DRINKS

    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 35

    BIOLOGY TECHNOLOGY

    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 37

    RO WATER TREATMENT

    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 39

    CHEMICAL INDUSTRY

    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 41

    POWER PLANT

    Related Products
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 43
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 45
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 47
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 49
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 51
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 53
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 55
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 57
    Certifications
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 59
    Our Company
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 61
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 63
    20 inch PP/pleated/sediment/SS cartridge filter security filter cartridge housing with NPT BSP thread port 65




    Pls feel free to contact me at any time:  :)


    Ms. Vickie Yung
    Mob./Whatsapp/Wechat: +86 15975359293
    Skype: vickie9293

    The use of this product helps strengthen operators' experience or deeps their technical know-how, which enables them to have vast knowledge on the use of machines. Its filter medium is customizable according to the different water quality in the application. The product has been extensively applied in many industries because it can replace human to finish the repeated, tedious, or even dangerous tasks. Its filter medium is customizable according to the different water quality in the application.
