    Overview
    Quick Details
    Applicable Industries:
    Home Use
    After Warranty Service:
    Online support
    Local Service Location:
    none
    Showroom Location:
    none
    Video outgoing-inspection:
    Provided
    Machinery Test Report:
    Provided
    Marketing Type:
    Ordinary Product
    Warranty of core components:
    1 Year
    Core Components:
    Pressure vessel
    Place of Origin:
    China
    Warranty:
    1 Year
    After-sales Service Provided:
    Online support
    Item:
    20 inch string wound 10 micron filter cartridge wire wound PP filter
    Material:
    polypropylene fiber , absorbent cotton , glass fiber
    Core:
    PP/SS
    Micron:
    1/5/10/20/30/50/75/100
    Inner Diameter:
    28mm / 30mm / OEM
    Length:
    5" / 10" / 20" / 30" / 40" / 50" / 60"
    PP wound filter+PP core:
    60℃
    PP wound filter+SS:
    100℃
    Cotton filter+SS:
    120℃
    Glass fiber+SS:
    180 - 300℃

    Packaging & Delivery

    Selling Units:
    Single item
    Single package size:
    53X33X33 cm
    Single gross weight:
    0.200 kg
    Package Type:
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing: 51x31x33cm- 10" 25pcs/20" 25pcs
    Lead Time :
    Quantity(Pieces) 1 - 500 501 - 1000 1001 - 5000 >5000
    Est. Time(days) 2 5 7 To be negotiated
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing
    Product Description
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 6

    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing

    Our string wound water filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.

    Product name
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing
    Material
    Polypropylene fiber , Absorbent cotton , Glass fiber
    Precision
    1-100 micron
    Outer diameter
    28mm-30mm/OEM
    Inner diameter
    60mm-63mm /115mm /OEM
    Length
    9.75" 9.87" 10'' 20'' 30'' 40'' 50" 60" / OEM
    Connector
    DOE/215/222/226/Fin/OEM


    Max operating temperature
    PP with PP core : 60 °C
    PP with SS core : 100 °C
    Cotton with SS core : 120 °C
    Glass fiber with SS core : 180 °C -- 300 °C
    Detailed Images

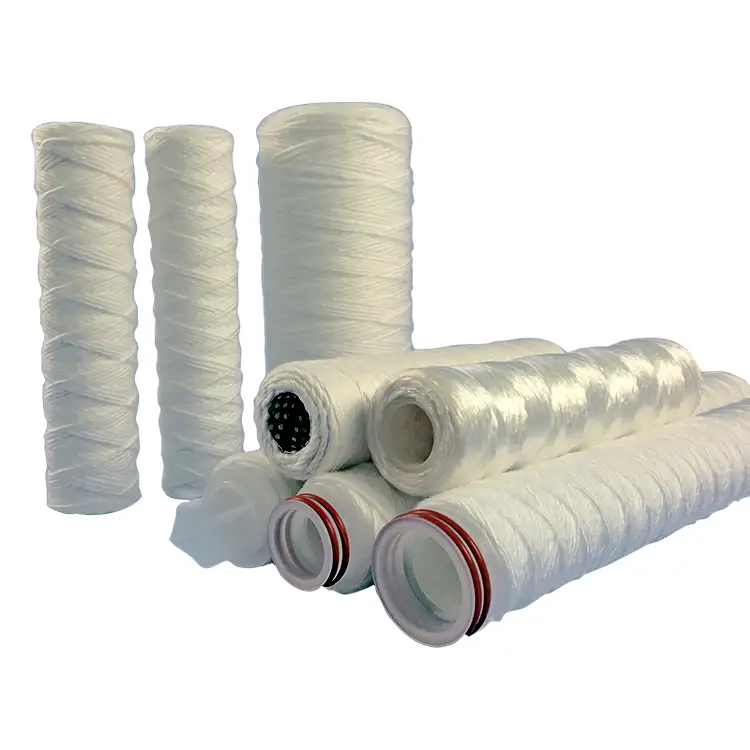

    String wound PP sediment Filter with OEM size

    This filter cartridge is made of textile fiber (polypropylene string, Absorbent cotton string, acrylic fiber yarn, fiberglass). According to the specified precess, it is winded tightly with the string in the polyporous core, structured by loose outer layers and tight inner layers, the filter cartridge porous outside it is big, inside it is small, it has the true deep filtration effect, it can remove the suspension, rust, particles, etc.

    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 8
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 10
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 12
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 14
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 16
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 18

    Jumbo PP yarn string wound water filter

    Big jumbo string wound water filter is designed for the removal of sediment, sands, dirt and rust from raw water. 10 20 30 40 inch length size is available, outer diameter is 110mm, inner diameter 28mm/30mm.


    The rated temperature is up to 165℉, polypropylene yarn construction for excellent chemical resistance.

    Fiberglass wire wound filter cartridge

    The fiberglass wire wound filter cartridge is a kind of deep filtration. It is made of glass fiber according to a specific winding process by different winding methods. The glass fiber wire wound filter adopts the structure of inner tight outer pine.
    Applications:
    Organic solvent filtration, food & beverage & wine, pharmaceutical industry, high & low temperature gas steam filtration.

    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 20
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 22
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 24
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 26

    Absorbent cotton string wound filter

    Absorbent cotton water filter for organic solvents, water, oil, alkaline solution, beverages, medicine, etc.
    The working temperature is ≤120℃
    Non-toxic, odorless, no secondary pollution, and long service life.
    Length: 10", 20", 30", 40"
    Core: Stainless steel/SUS304 316L

    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 28
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 30
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 32

    Polypropylene string wound PP yarn filter

    Filter media: Polypropylene
    Micron: 1um, 5um, 10um, 20um, 25um, 50um, 75um, 100um
    Polypropylene with PP core: ≤80℃
    High dirt holding capacity, longer service life.
    Fits to all the standard filter housings.
    Wide chemical compatibility and high filtration micron.
    Various filter media fit with various applications.
    All kinds of adaptors are available.

    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 34
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 36
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 38
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 40
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 42
    Application
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 44

    RO SEA WATER TREATMENT

    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 46

    POWER PLANT

    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 48

    BIOLOGY TECHNOLOGY

    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 50

    PETROCHMICAL INDUSTRY

    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 52

    BOTTLED MINERAL WATER

    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 54
    BEER & BEVERAGE FILTRATION
    Packing & Delivery
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 56
    Our Company
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 58
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 60
    Contact Us
    20 inch string wound 10 micron filter cartridge wire wound PP filter for security cartridge filter housing 62
    With many management and support features, it reduces the need for many less-skilled workers. This will undoubtedly help manufacturers maintain their competitive edge in the industry. There is different porosity across the depth of its filter medium. The product is cost-saving. The use of this product can cut labor expenditure, which eventually brings more profits to manufacturers. There is different porosity across the depth of its filter medium.
