Home  > Stainless steel sintered filter cartridge  >  4.5 X 10/20 Inch Whole House Big Blue Bb Jumbo Filters Stainless Steel Mesh Water Filter Cartridge
4.5 X 10/20 Inch Whole House Big Blue Bb Jumbo Filters Stainless Steel Mesh Water Filter Cartridge

4.5 X 10/20 Inch Whole House Big Blue Bb Jumbo Filters Stainless Steel Mesh Water Filter Cartridge

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Stainless steel sintered filter cartridge
  •
+86 13316223340
info@lyfilter.com
+86 020-34460508
+86 020-34425655

Our company always insists on product quality is life, our aim is to provide more professional and attentive services for our global customers.

Overview
Quick Details
Condition:
New
Warranty:
6 months
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Online support
Local Service Location:
none
Showroom Location:
none
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Ordinary Product
Warranty of core components:
1 Year
Core Components:
Pressure vessel
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan/OEM
Usage:
Liquid Filter, gas, liquid filtration
Type:
Filter Elements
Product name:
big blue filter cartridge
Micron Rate:
0.1 to 300 micron
OEM dimension:
Available
Length:
5", 10", 20", 30", 40", 50'', 60'' inch
Stainless steel Material:
304, 316, 316L
Interface form:
222,226,215, M36, M24, M22, M20 thread interface
Layer:
pleated/mesh cartridge filter
Heat resistence:
- 200 -- 500 degree
Working pressure:
0.1 to 30Mpa
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day Stainless Steel Water Filter Cartridge
Product Description

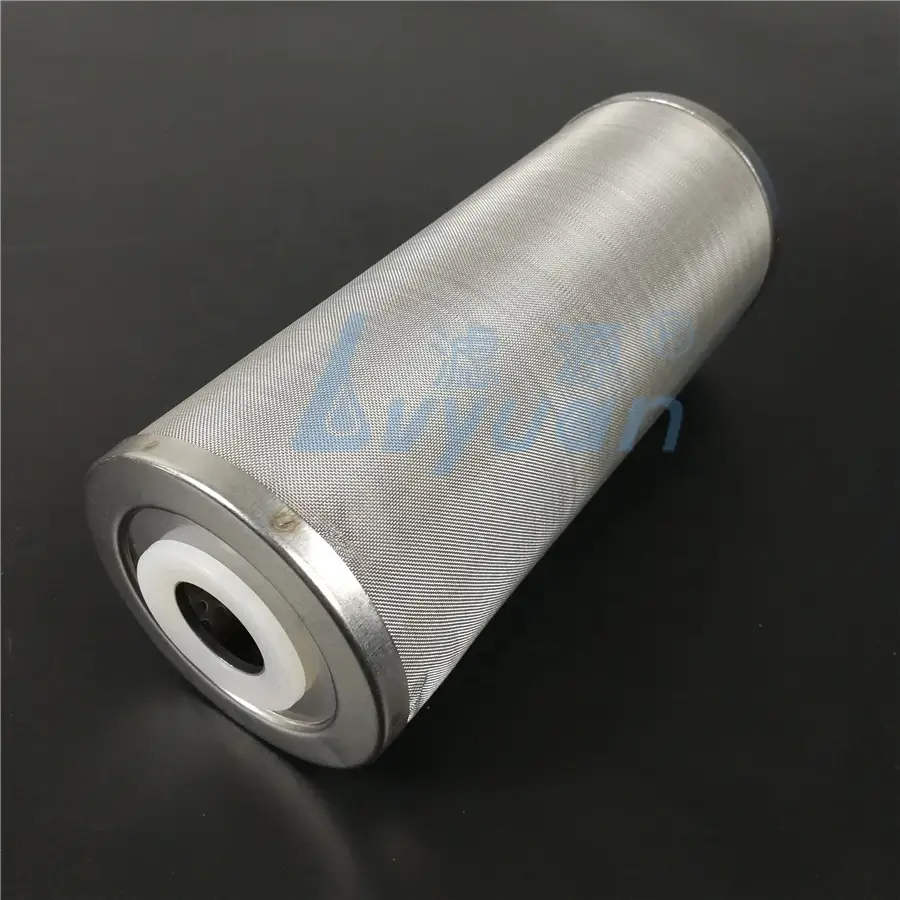

Plain cylindrical design Stainless Steel Wire Mesh filter cartridge

Pleated configuration design Stainless Steel folded mesh filter cartridge

Sintered Porous Stainless Steel SUS316 Powder Filter Cartridge

Customized Porous Stainless Steel Filter cartridge with SS support Frame

4.5 X 10/20 Inch Whole House Big Blue Bb Jumbo Filters Stainless Steel Mesh Water Filter Cartridge

Non-standard Stainless steel filter cartridge specifications (special size, shape, connection, etc) can be customized according to customer's requirement.

Fiter Cartridge dimensions
Length
5'' (125mm), 10'' (250mm), 20'' (500mm), 30'' (750mm), 40'' (1000mm)
Diameter
Ø25, 30, 50, 60, 65, 70mm
Other dimensions
Customized by customer's request.
Material of constructions
Filter media
SUS304, 316, 316L stainless steel
Connector type
Flat, Insert type, Thread type, Fin
End caps
DOE, SOE, 215, 222, 226, M20, M30, M42, 1'' NPT/BSP or as request.
Outside protection net
Optional
Sealing material
Silicone, NBR, EPDM, Buna, Teflon, etc
Performance
Removal rate
1, 3, 5, 10,20, 30, 40, 50, 100um, etc
Effective Surface area
0.65sqm per 10" cartridge element
Operation Temperature
≦480℃
Cleaning method
back flushing, ultrasonic or other non-abrasive cleaning
Maximum Operating Pressure differential
4.0bar

Features:

1.Excellent mechanical strength.
2. High dirt holding capacity.
3. High pressure resistance, withstand capacity and low pressure drop.
4. Temperature ratings from -73°C to 480°C.
5. Various micron ratings available from 2um to 1000um nominal.
6. Back flushing and cleanable for long service life.
7. Strong corrosion resistant for wide chemical compatibility.
8.High permeability, no media migration.
9.Customized dimension are welcome.

Application

Stainless steeel Filter Cartridge Applications:
1. Water filtrations
2. Hydraulics
3. Automotive
4. Pneumatics
5. Chemical
6. Petrochemical
7. Medical
8. Oil & gas
9. Aeronautical
10. Mining
11. Food & beverage
12. Pharmaceutical
