40 inch High flow water filter replacement filter cartridge 1

40 inch High flow water filter replacement filter cartridge 2

40 inch High flow water filter replacement filter cartridge 3

40 inch High flow water filter replacement filter cartridge 4

40 inch High flow water filter replacement filter cartridge

Start Port:

Guangzhou

Production Capacity:

500 units/Month

Place of Origin:

Guangdong, China

Payment:

D/A, D/P, T/T, Western Union, MoneyGram, Alibaba Trade Assurance, paypal

MOQ:

4 pcs

Model:

LY-HFM

Delivery Time:

within 7 working days

Certification:

SGS

Brand:

LVYUAN

Inquiry

Write a Review

40 inch High flow water filter replacement filter cartridge 5

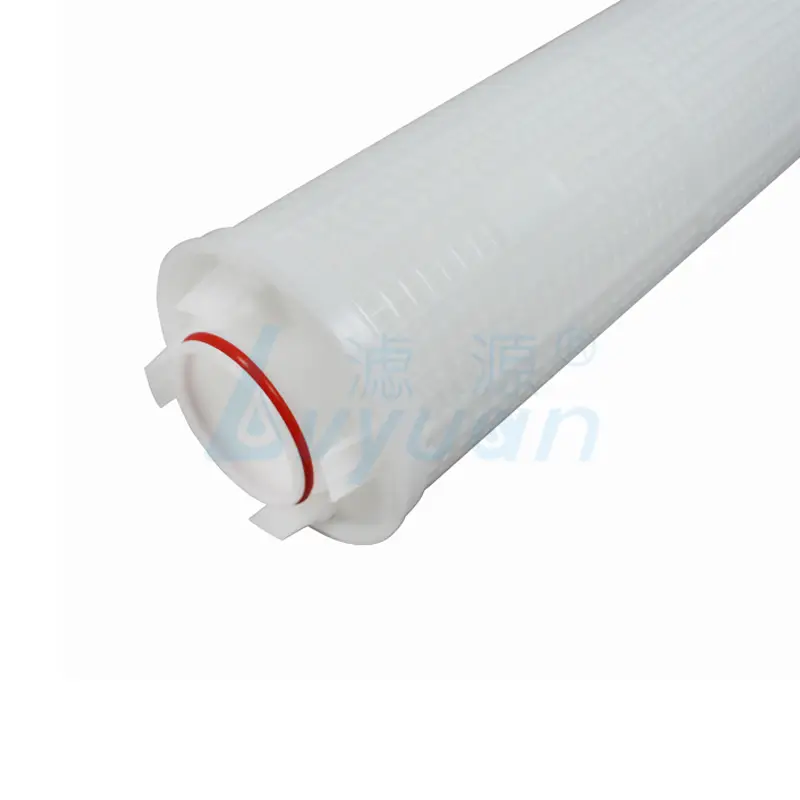

The LY-HFM filter cartridge series is designed to be used in the different filter housing which contains 1-37 filter cartridges. It can be satisy different flow rate request. The large diameter with wide filter area insures to decrease the number of filter cartridges and the dimension of housing required. This filter cartridge has Higher dirt holding capacity and longer service life which widely used in water treatment system.

Product Feature

◪ All contaminants can be removed within the cartridges because of the flow direction.
◪ Up to 110m³/h flow rate per one filter cartridge for water filtration.
◪ Large water capacity up to 500GPM.
◪ Max. 50% reduction of the filter system.
◪ Smaller installation place and easy change out.
◪ Handle design quick installation, safety and reduce the cost.

Product Parameter

Product Name	HFM series high flow water filter replacement filter cartridge (LY-HFM)
Filter media	Polypropylene/PP membrane
Support	PP/Polypropylene
Core/End cap	PP/Polypropylene
Seal material	Silicone/EPDM/VITON/PTFE/NBR
Outer diameter	6.5”( 165mm)
Length	20”(528mm), 40”(1022mm), 60”(1538mm), Customized
Max.operating temperature	82℃
Micron rating(μm)	1, 4, 5, 10, 15, 20, 40, 70, 100

Product Details

40 inch High flow water filter replacement filter cartridge 6

part.1

★ Lower cost of operation and maintenance, widely excellent chemical capacity.

★ High dirt holding capacity and longer service life for your water plant projects.

40 inch High flow water filter replacement filter cartridge 7

part.2

★ Highly consistent performance and 100% constructed by advanced polypropylene media.

★ Good quality membrane and scientifically designed structure make a very competitive option in the market.

Product Applications

40 inch High flow water filter replacement filter cartridge 8

Municipal water

40 inch High flow water filter replacement filter cartridge 9

Bottled water

40 inch High flow water filter replacement filter cartridge 10

RO water pre treatment

40 inch High flow water filter replacement filter cartridge 11

Sea water desalination

40 inch High flow water filter replacement filter cartridge 12

DI resins

40 inch High flow water filter replacement filter cartridge 13

Deep wells
