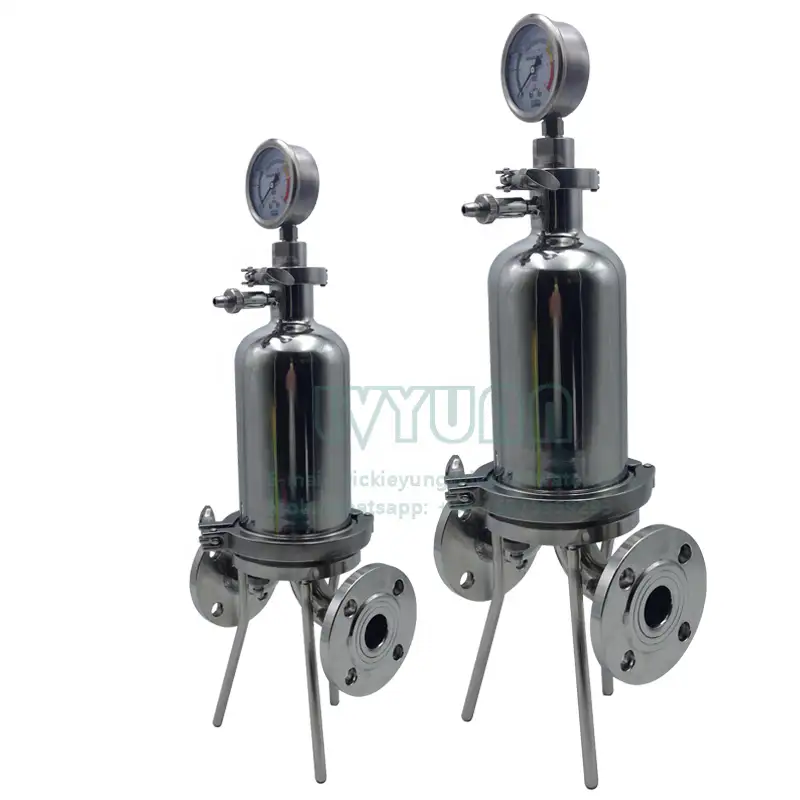

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 1

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 2

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 3

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 4

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 5

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 6

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs

Inquiry

Write a Review

Overview

Quick Details

Condition:: New

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:: Online support

Local Service Location:: none

Showroom Location:: none

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Ordinary Product

Warranty of core components:: 1 Year

Core Components:: Engine

Place of Origin:: Guangdong, China

Brand Name:: Customized

Material:: Customized

Weight:: Customized

Size:: Customized

Power:: 0

Warranty:: 1 Year

After-sales Service Provided:: Online support

Item Name:: Stainless steel 316L housing sanitary in-line filter housing cartridge

Housing Material:: SS304/SS316L

Filter cartridge length:: 10" 20" 30" 40"

Cartridge filters quantity:: Single core

Surface treatment:: Polished & Sandblast

Seal o-ring:: Silastic/NBR/EPDM/Viton

Top cap installed type:: Clamp type

Connector type:: 222/226/DOE

Inlet & Outlet type:: Internal thread

Packaging method:: Export standard box

Packaging & Delivery

Selling Units:: Single item

Single package size:: 65X35X35 cm

Single gross weight:: 8.000 kg

Package Type:: 5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs: Packaging: Export standard box/As required

Lead Time :

Quantity(Units)	1 - 10	11 - 100	>100
Est. Time(days)	7	15	To be negotiated

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs

Product Description

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs:

LVYUAN stainless steel cartridge filter housing offers wide range of flow capacities & contaminant holding capacities.

Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter

housing, filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge& choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 9

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 11

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 13

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 15

Model No.	Drain	Vent	In & Out	Body diameter	Thickness
LY-FL-SC-L1	1/4"	1/4"	1/2" 3/4" 1"	89mm	1mm-2mm
LY-FL-SC-L2	1/4"	1/4"	1/2" 3/4" 1"	89mm	1mm-2mm
LY-FL-SC-L3	1/4"	1/4"	1/2" 3/4" 1"	89mm	1mm-2mm
LY-FL-SC-L4	1/4"	1/4"	1/2" 3/4" 1"	89mm	1mm-2mm

Features:

1.Inlet & outlet size is 1/2", 3/4". 1" for easy installation.

2. Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.

3. Use the tap water pressure to provide power, no power consumption.

4. Wall-mounted, counter-top, very simple installation.

5. It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.

6. Resistance to strong acid and alkali.

7. Low cost, it fits different kind of filter elements.

Structure:

Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.

Inside with the silicone gasket, it can be applied to cold & hot water temperature.

High pressure resistance, corrosion resistance.

Detailed Images

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 17

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 19

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 21

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 23

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 25

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 27

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 29

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 31

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 33

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 35

Application

1. Widely used in UF, RO, EDI security filtration and the end-filtration.

2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.

3. Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.

4. Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.

5. Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.

6. Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.

7. The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.

8. Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 37

BOTTLED WATER

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 39

BEVERAGE & DRINKS

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 41

BIOLOGY TECHNOLOGY

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 43

RO WATER TREATMENT

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 45

CHEMICAL INDUSTRY

5 10 inch 226 adaptor stainless steel 316L housing sanitary in-line filter housing cartridge with SS standing legs 47

POWER PLANT
