Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

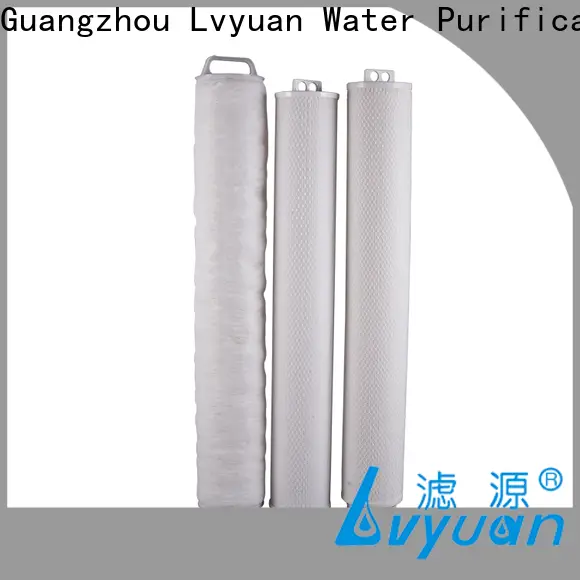

Lvyuan Filter high flow water filter cartridge with good price for water purification 1
Lvyuan Filter high flow water filter cartridge with good price for water purification 2
Lvyuan Filter high flow water filter cartridge with good price for water purification 3
Lvyuan Filter high flow water filter cartridge with good price for water purification 1
Lvyuan Filter high flow water filter cartridge with good price for water purification 2
Lvyuan Filter high flow water filter cartridge with good price for water purification 3

Lvyuan Filter high flow water filter cartridge with good price for water purification

Inquiry

Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Lvyuan/OEM
Model Number:
LY-HF-01
Power (W):
0
Voltage (V):
0
After-sales Service Provided:
none
Warranty:
1 Year
Type:
Reverse Osmosis
Certification:
GS
Use:
Household Pre-Filtration
Application:
Car, RV, Outdoor, Hotel, Garage, Commercial, Household
Power Source:
Manual
Name:
Filter membrane material:
PP/Fiberglass
Length:
10/20/30/40/50/60 inch
Conector:
DOE/SOE/Customized
Micron:
1/3/5/10/25/50/75/100/150
O-ring material:
EPDM/Viton/Silicone/PTFE
Sealing method:
Hot melting welding
Diameter:
165mm/OEM
Inner Core:
PP
MOQ:
Currently no limited
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month

Water purifier spare parts high flow cartridge filter for water filters machine

Product Description
Lvyuan Filter high flow water filter cartridge with good price for water purification 4

Product Name
Guangzhou factory supply 40/50/60 inch high flow polypropylene pleated filter cartridge with 5 micron
Filtration media
Polypropylene membrane & Fiberglass membrane
Support material
Polypropylene
Core & Structural components
Polypropylene
 Inner core
Polypropylene
Packing method
Polybag with single box
Filtration precision
1μm, 2μm, 3μm, 5μm, 10μm, 20μm, 25μm, 30μm, 50μm
Length
10", 20", 30", 40", 50", 60", Customized
Adaptor
SOE/DOE
Sealing method
Hot melting welding
Sealing gasket & O-ring material
Silicone/EPDM/VITON/PTFE/NBR
Filter cartridge diameter
165mm
Max. working temperature
Pleated polypropylene: 82℃
Pleated fiberglass: 121℃
Melt blown: 65℃
Applications
Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;

Guangzhou factory supply 40/50/60 inch high flow polypropylene pleated filter cartridge with 5 micron:

The high flow replacement filter cartridge series designed to be used in the different filter housings which contains 1-37 filter cartridges. It can be used for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. This filter cartridges has various applications on water treatment system. Higher dirt holding capacity and longer service life with further specifications of the large industrial water plant projects.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.

Features

All contaminants can be removed within the cartridges because of the flow direction. Up to 110m³/h flow rate per one filter cartridge for water filtration. Max. 50% reduction of filter system. Multi membrane layers for large dirt holding in the high flow filter elements. Thermally bonded construction for stronger pressure resistance. Handle design quick installation, safe and reduce the cost.
Detailed Images
Lvyuan Filter high flow water filter cartridge with good price for water purification 6
Lvyuan Filter high flow water filter cartridge with good price for water purification 8
Lvyuan Filter high flow water filter cartridge with good price for water purification 10

General Description

The LY-HFM filter cartridge series designed to be used in the different filter housings which contains 1-37 filter cartridges. It can be used for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. This filter cartridges has various applications on water treatment system. Higher dirt holding capacity and longer service life with further specifications of the large industrial water plant projects.
Lvyuan Filter high flow water filter cartridge with good price for water purification 12
Lvyuan Filter high flow water filter cartridge with good price for water purification 14
Lvyuan Filter high flow water filter cartridge with good price for water purification 16

General Description

The LY-HFMH filter cartridge series designed to be used in the different filter housings which contains 1-37 filter cartridges.The LY-HFPM series high flow filter cartridge is the horizontal pleated big flow water filter cartridge.It can be used for different flow rate request. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. This filter cartridges has various applications on water treatment system. Higher dirt holding capacity and longer service life with further specifications of the large industrial water plant projects.
Lvyuan Filter high flow water filter cartridge with good price for water purification 18
Lvyuan Filter high flow water filter cartridge with good price for water purification 20
Lvyuan Filter high flow water filter cartridge with good price for water purification 22
Lvyuan Filter high flow water filter cartridge with good price for water purification 24

General Description

The LY-HFPK filter cartridge series is a replacement cartridges for the depth filtration and 2-1/2” diameter cartridges for the high flow applications. Pre-filtration for RO system is an example.The Lvyuan filter pleated design with high flow area and contamination removal capacity. This design helps end user to reduce capital investment, save space, and easy to change-out and etc. Up to 1300LPM flow rate per filter cartridge reduced the number of filter cartridges and the dimension of the filter housing required. Water treatment volume per super-high flow filter cartridge equals to 10x40” length, 2-1/2” diameter filter cartridges. Inner O-ring insures no by pass and handle design makes the installation easier.
Lvyuan Filter high flow water filter cartridge with good price for water purification 26
Lvyuan Filter high flow water filter cartridge with good price for water purification 28
Lvyuan Filter high flow water filter cartridge with good price for water purification 30

General Description

The LY-HFPL filter cartridge is a new product developed by Lvyuan Water Purification Equipment Co.,Ltd. In Guangzhou China. It has a 6 inch/152mm large diameter, it is made of 100% polypropylene media.The strong hard cage enables the high water flow filters to undertake a larger operation pressure during filtration process. The large diameter with big filter area insures to reduce the number of filter cartridges and the dimension of housing required. The long service life and high flow rate result in low investment and less manpower in many applications. This kind of LY-HFPL product has various applications on water treatment.
Application
Lvyuan Filter high flow water filter cartridge with good price for water purification 32

RO WATER TREATMENT

Lvyuan Filter high flow water filter cartridge with good price for water purification 34

BOTTLED MINERAL WATER

Lvyuan Filter high flow water filter cartridge with good price for water purification 36

CHEMICAL TECHNOLOGY  FILTRATION

Lvyuan Filter high flow water filter cartridge with good price for water purification 38

BEER & BEVERAGE FILTRATION

Lvyuan Filter high flow water filter cartridge with good price for water purification 40

PETROCHMICAL INDUSTRY

Lvyuan Filter high flow water filter cartridge with good price for water purification 42

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery
Lvyuan Filter high flow water filter cartridge with good price for water purification 44

Container for shipment

Lvyuan Filter high flow water filter cartridge with good price for water purification 46

Container for shipment

Certifications
Lvyuan Filter high flow water filter cartridge with good price for water purification 48
Lvyuan Filter high flow water filter cartridge with good price for water purification 50
Lvyuan Filter high flow water filter cartridge with good price for water purification 52
Our Company
Lvyuan Filter high flow water filter cartridge with good price for water purification 54
Lvyuan Filter high flow water filter cartridge with good price for water purification 56


Let's Make Custom Water Filter Cartridge For You Now.

The application of this high-tech product reduces the number of unskilled workers required in the production process. In addition, it enhances production efficiency. It has increased dirt holding capacity and longer life. For manufacturers, this product brings immeasurable economic benefits because it helps to increase output rates and reduce labor costs. It has increased dirt holding capacity and longer life.
