PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.
Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.
Quality pleated filter cartridge quality assurance for water Purifier
Product Description
Product Name: | Bag type housing replaced cartridge filter 1/5/10 microns pleated sediment filter cartridge for 32 inch bag water filter body | ||||||
Bag filter cartridge type | |||||||
Length: | 16", 32" | ||||||
OD: | 6" | ||||||
Filter membrane media: | Polypropylene PP pleaated | ||||||
Seal Material: | EPDM, Silicone, NBR, Viton | ||||||
Filter handle: | Adjustable Polypropylene PP | ||||||
End cap material: | Polypropylene PP | ||||||
Center core: | Polypropylene PP | ||||||
Outer cage: | Polypropylene PP | ||||||
Microns rating: | 1um, 2um, 3um, 5um, 10um, 20um, 25um, 30um, 50um, 75um,100um | ||||||
Operating pressure: | Max. operating temperature: 64℃; Maximum pressure drop: 3.4bar, 60℃； Recommended pressure for replaced filters: 2.4bar, 20℃ | ||||||
Service condictions: | 3.5 bar at 65℃; | ||||||
Applications: | RO water treatment prefiltration; Electronic; Oil & Gas liquid; Petroleum industry. | ||||||
MOQ | 1pcs/Box, 4boxes/Carton | ||||||

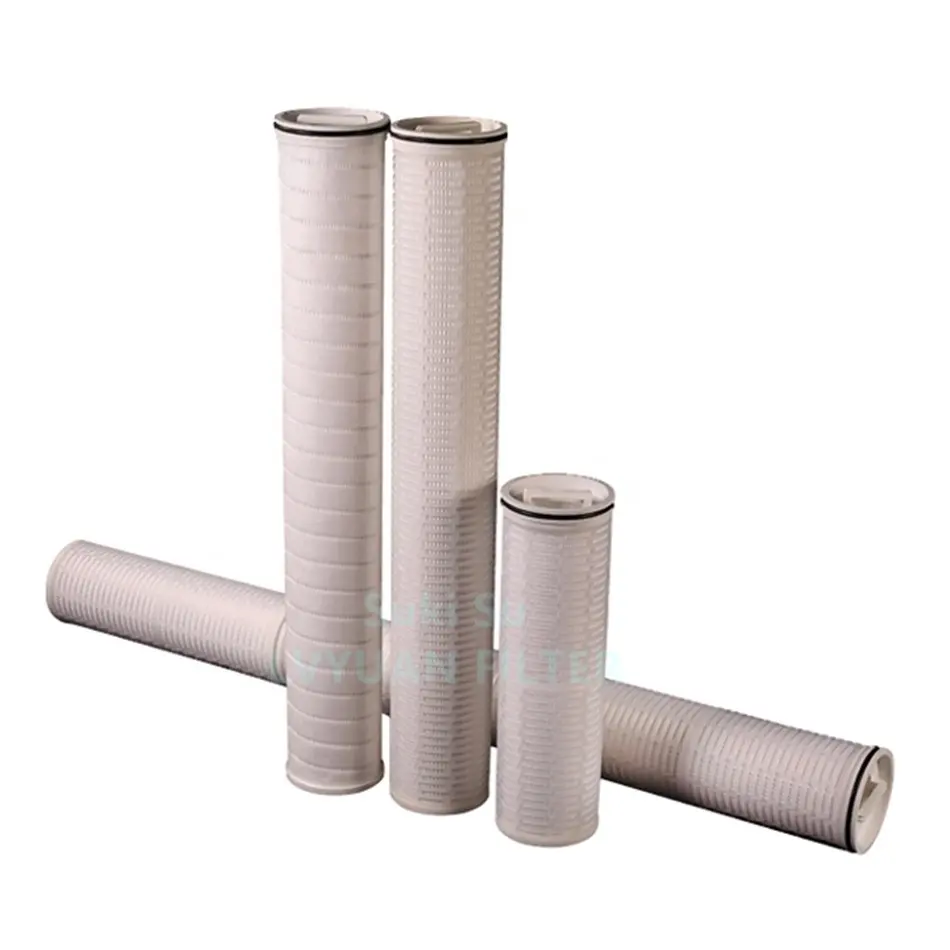

16/32 inch 5 microns plastic bag filter cartridge for stainless steel bag housing cartridge
Guangzhou Lvyuan Water Purification Equipment Co., Ltd., we manufacture in a wide range of sizes and microns options filter elements and fits to different specification of filter housings. This type of pleated cartridge filter has superior flow characteristics with very low pressure drop compared to depth media of similar microns rating. It has large filtration area and design, allow the use of a reduced number of cartridges, high dirtholding capacity and long lifetime. Fully thermal welded construction can be used safely on high temperature oily water, solvents, acid and diesel.
Features:
1. To fit into different standard sizes stainless steel bag water filter cartridge housing.
2. High dirtholding capacity and high flow rate.
3. Large capacity filtration area and depth filtration provides a long lifetime of pleated cartridge water filter.
4. Low filter cartridges replacement cost, because of the large filter area to reduce labor costs to change.
5. The filter can be used safely on the liquid water, diesel, oily liquid, chemical solvents, acid and alkali.
Related Products
Pleated PP/PES/PTFE/PVDF/Nylon membrane filter for water/air filtration treatment:
Microporous pleated filter element, the main filter material is : Polypropylene, Hydrophobic PTFE, Hydrophilic PTFE,Polyether sulfone, Nylon, etc.
Most of the raw materials are imported from abroad.Pleated filter element is a kind of deep filtration filter,it is usuaslly used as liquid overheating,clarification, filtration and terminal filter.
It has the following characteristics: the superfine polypropylene fiber membrane as the filtration medium, low pressure differential, high flux, good filtration precision, lower economic cost.
The whole structure of polypropylene, end cover, housing and center pole adopts polypropylene material; It adopts the hot melt welding process, PP and PP melt bonding,without any binder.
It has wide range of chemical compatibility, and also has a series of pore size and form a variety of interface.Material: Pleated filter, Support layer, End-cover, Inside & Outside cylinder are polypropylene.
Welding: It adopts the uniquehot melting methods, no glue, no foreign body fall off.
Typical use: Pharmaceutical, Food, Chemical, Electronics, Environmental protection, etc.
Microporous membrane pleated filter cartridge main features: High interception rate, high liquidity, low pressure differential and a wide range of chemical compatibility;
The production process adopts unique hot melting process technology, no any adhesive, no foreign body release.
It can meet the food,beverage, beer, chemical, pharmaceutical and other industries production requirements.
Polypropylene microporous membrane filter
PTFE membrane pleated filter
Hydrophobic PTFE filter
The filter medium is Hydrophobic PTFE microporous membrane filter: Strong hydrophobicity,
High holding rate, excellent chemical resistance and thermal stability, good strength, impact resistance of the forward & reverse pressure.
Hydrophilic PTFE filter
The filter element medium for hydrphilic PTFE microporous membrane filter: The hydrophilic stability, high entrapment rate, excellent chemical resistance thermal stability, good strength, impact resistance of the forward & reverse pressure.
Polyether Sulphone PES Pleated Filter
The PES pleated filter cartridge is constructed of imported polyethersulfone(PES) membrane media and non-woven support materials.The material of cage core and end caps are polypropylene.Adapters are thermally welded with media without using any glue, no any pollution. The PES filter cartridge is ideally suited for critical prefiltration in sterilizing applications and final filtration in a broad range of demanding non-sterile application, the inherently hydrophilic membrane contains no surfactant or wetting agents, which results in good filtration and flow rates.
Nylon N66 pleated membrane filter cartridge
The filter medium is hydrophilic nylon microporous membrane filter, It is composed by nylon membrane and the polypropylene support material hot melting, it is no dung, also applicable for the strict chemical and pharmaceutical industries.
PVDF pleated cartridge filter
The PVDF pleated cartridge filter is constructed of imported natural hydrophobic polyvinylenedifluoride(PVDF) membrane media and non-woven support materials. The adaptors are thermally welded with media without using any glue, no any pollution.
High filtration microns, high flow rate, better hydrophobicity, sterilization at high temperature as well as chemical resistance. It is widely used in gas or liquid pre-filtration and widely used in final filtration.
Jumbo pleated membrane filter cartridge
The big jumbo pleated filter cartridge is constructed of deep polypropylene membrane, melt blown polypropylene, hydrophilic PES & PTFE. The non-woven support materials. This filter cartridges design increased the effective filtration area, not only can reduct the filter cartridges quantity, but also it can make the smaller housing size. Big flow rate and long service life, lower cost and human cost. The size is divided into 2 kinds of size: 83mm diameter & 131mm diameter. Adaptors are thermally welded with media without using any glue, no any pollution and droppings. Clean & stable, each filter cartridge has passed strict testing by 100% integrity.
Product Name | Pleated PP/PES/PTFE/PVDF/Nylon membrane filter for water/air filtration treatment | ||||
Filtration media | PP/PTFE/PES/PVDF/Nylon | ||||
Support material | Polypropylene | ||||
Core & Structural components | Polypropylene | ||||
Inner core | PP/Stainless steel | ||||
Packing method | Polybag/Vacuum | ||||
Filtration precision | 0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm | ||||
Length | 2.5", 5". 10", 20", 30", 40", 50", 60", OEM | ||||
Adaptor | 215/222/226/Fin/Flat/Thread/OEM | ||||
Sealing method | Hot melting welding | ||||
Sealing gasket & O-ring material | Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber. | ||||
Effect filtration area | ≥0.6m² | ||||
Filter cartridge diameter | 69mm | ||||
Max. working temperature | PP: 88℃,0.27Mpa PTFE: 80℃, 0.173Mpa PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa Nylon: 49℃, 0.21Mpa | ||||
Max. positive differential pressure | 0.42Mpa (25℃) | ||||
Max. back pressure differential pressure | 0.28Mpa (25℃) | ||||
Sterilization conditions | 121℃ 30min | ||||
Applications | Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration; | ||||
Detailed Images
DOE opened pleated filter
The membrane's micron rating is optional. Options to order for this site include 0.03 to 0.45 microns in 10" to 40" length with either.
OEM customized size filter
Different length & variety end cap are optional.
Different end caps pleated filter
SDouble Open End (DOE), 222 or 226 end configurations, all come standard with EPDM/PTFE/SILICONE/TEFLON seals.
Application
RO WATER TREATMENT
BOTTLED MINERAL WATER
CHEMICAL TECHNOLOGY FILTRATION
BEER & BEVERAGE FILTRATION
PETROCHMICAL INDUSTRY
SEA DESALINATION WATER EQUIPMENT
Packing & Delivery
Container for shipment
Container for shipment
Certifications
Our Company
Contact
Pls feel free to contact me:
Ms. Vickie Yung
Mob./Whatsapp/Wechat: +86 15975359293
Skype: vickie9293
The use of this product brings many benefits. For example, it can more efficiently utilize the materials and generate better product quality. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency.
This product typically performs the manufacturing process with less variability than human workers, which offers greater control over the production. It is designed with graded pores to help trap contaminants throughout the entire cross section for improved efficiency.
