Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

Reliable pleated water filters series for water

Inquiry

Overview

Quick Details

Condition:: New

Applicable Industries:: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company

After Warranty Service:: Online support

Local Service Location:: none

Showroom Location:: none

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan / OEM

Material:: carton

Weight:: depends

Size:: depends

Power:: 0

Warranty:: Unavailable

Product name:: 10 micron filter cartridge 20 inch

Micron Rate:: 0.1 to 60 micron pleated filter cartridge

Pleated filter Material:: PP / PTFE / PES / Nylon 6 / PVDF

Length:: 5", 10", 20", 30", 40" inch

Certification:: SGS

Filter Media:: Polypropylene membrane

End Cap:: DOE,222+Fin,222+Flat,226+Fin,226+Flat

Gasket/O ring material:: Silicon/EPDM/NBR/Viton/Tflon

Usage:: gas, water filter Cartridge

Inner core:: PP / stainless steel

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Day 0.1 micron filter cartridge

Product Description

Reliable pleated water filters series for water 2

Reliable pleated water filters series for water 4

Reliable pleated water filters series for water 6

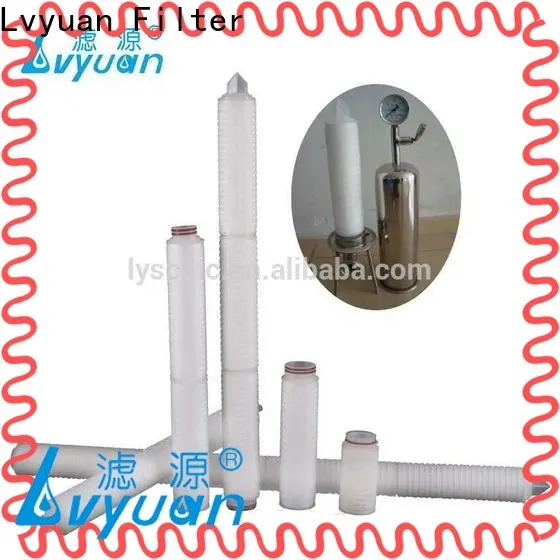

0.1 0.5 10 micron filter cartridge 20 inch PP water sediment filters

The PP pleated filter cartridge uses pleated polypropylene fiber membrane as filtration media.
The PP Polypropylene cartridge is an advanced fixed intensive filter and available in a wide range of retention rating from 0.1μm to 60μm. The pore size is not affected by the vibration of feeding pressure. Due to its unique low differential pressure, high flow volume, excellent filtration capability attracted many customers.

Reliable pleated water filters series for water 8

Reliable pleated water filters series for water 10

Detail of Pleated filter cartridge

Jumbo / High flow rate Pleated Filter Cartridge

Reliable pleated water filters series for water 12

Reliable pleated water filters series for water 14

End Cap for pleated filter cartridge

7 Round 30 inch Stainless Steel cartridge filter housing

Applications

Reliable pleated water filters series for water 16

1. Electronic industry: RO reverse osmosis water system prefiltration, deionized water system prefiltration.
2. Food industry: filtration of beverage, beer and mineral water.
3. Chemical industry: filtration of organic solvent and ink.
4. Pharmaceutical industry: filtration of pharmaceuticals, biologicals, serum products, compressed air and gas.
5. Others: filtration of plating solution, process fluids, photoresist and magnetic media

Specifications

Filter Media Option	PP filter cartridge	PTFE filter cartridge	Nylon 6 filter cartridge	PES filter cartridge	PVDF filter cartridge
Length	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40	5, 10, 20, 30, 40"
Micron Rate	0.1, 0.2, 0.45, 0.65, 0.8, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 micron	0.2, 0.45 micron	0.2, 0.45, 0.65, 1 micron	0.1, 0.2, 0.45, 0.65 micron	0.2, 0.45 micron
End Cap	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Inner Diameter	28mm	28mm	28mm	28mm	28mm
Outer Diameter	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)	68mm (can be customized)
Jumbo Size	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm	ID: 30mm, OD: 110~115mm
Gasket/O ring material	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon	Silicon/EPDM/NBR/Viton/Teflon
Effective filtration area	0.4-0.7m²	≥0.72m²	≥0.6m²	≥5m²	≥0.72m²
Max.working pressure difference	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃	0.42Mpa at 25℃
Max.back pressure	0.28Mpa at 60℃	0.35Mpa at 60℃	0.35Mpa at 25℃	0.21Mpa at 25℃	0.21Mpa at 25℃
Max. working temperature	88℃ at 0.28Mpa, 60℃ at 0.42Mpa	142℃ at 0.276Mpa	49℃ at 0.21Mpa	140℃ at 0.28Mpa	80℃ at 0.173Mpa
Sterilizing temperature	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins	121℃, 30mins

Reliable pleated water filters series for water 18

Reliable pleated water filters series for water 20

Production Lines

Reliable pleated water filters series for water 22

Reliable pleated water filters series for water 24

Why Choose us

Guangzhou Lvyuan Water Purification Equipment Co.,Ltd is a comprehensive enterprise. As a Leader Manufacturer in Guangzhou city, our competitive product lines including:
1. All kinds of Filter Cartridges, Pleated / Melt Blown / Sintered etc.
2. Cartridge filter housings and bag filter housings
3. RO, UF, MBR water purifier and equipment
4. Water treatment equipments
5. Many kinds of Water purifiers and equipments, water softners, and more.
We devote to filtration development for more than 10 years. We can supply advanced technical support and solution for all of our customers during and after warranty period.

Reliable pleated water filters series for water 26

Certifications

Reliable pleated water filters series for water 28

FAQ

1. Q: Are you factory?
A: Yes, we are the professional manufacturer with continuous and improved R & A production, sales and service supply. We will always provide the best technical service support to our clients both in and after warranty period.
2. Q: How to get a quotation?
A: In order to send you our best price, please kindly inform us detail product parameters and order quantity.
3. Q: Can I get your products with our logo and design?
A: Customized service is available. We can OEM or ODM with your logo.
4. Q: What's the MOQ ?
A: We can offer the quantity you required, as we don't dictate MOQ terms.

Contact

Reliable pleated water filters series for water 30

All our [核心关键词 can be loaded before fully complete quality test. It can effectively control filtration precision. Customization service for our water filter cartridges is available. It can effectively control filtration precision.

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.

5 inch 10 inch Replacement PP pleated water filter cartridge

China supplier pleated water filters 10 20 30 40 inch with sanitary filter housing for biochemistry industry

pp pleated water filters 0.1 0.2 0.45 0.65 1 3 5 micron for beverage filtration

High quality 10/20/30/40 inch doe pleated water filters with 0.45 microns PP pleated membrane

Guangzhou manufacturer water pleated water filters water filter system
