stainless steel cartridge filter housing high safety for purify
Food Grade SS304 316L Stainless Steel Vacuum Compressed Air Cartridge filter for Medical industrial

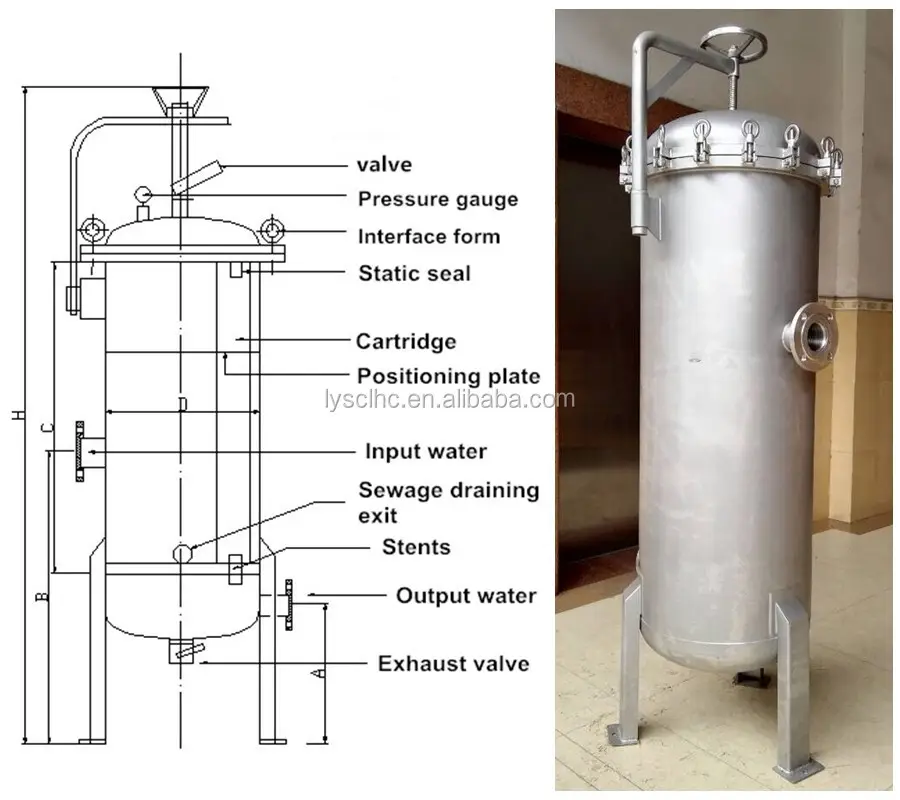

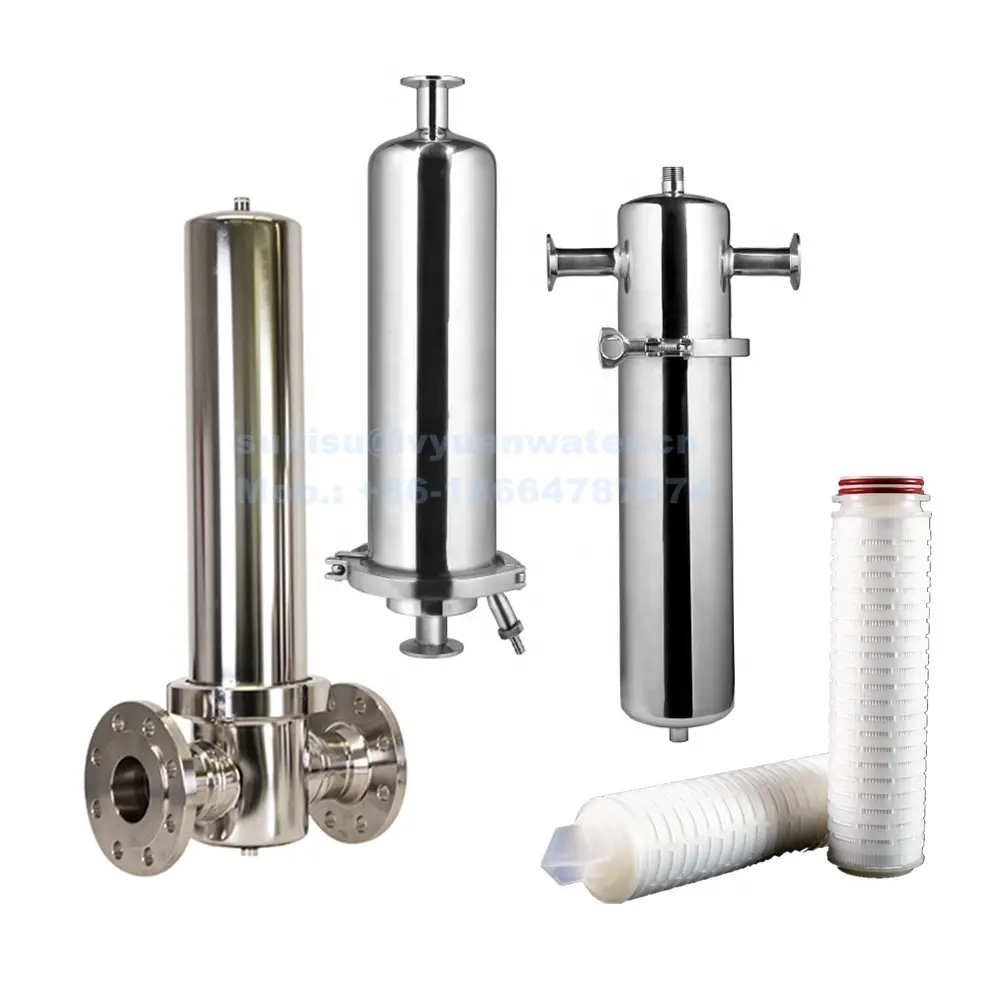

Stainless Steel Filter Housing made of SUS316L or SUS304, and take filter cartridge as its element. The stainless steel filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology and pharmacy, beer and beverage, textile, power plant, chemical, and water treatment etc.
Different stainless steel single and multi-cartridges filter housing can be customized, as long as you offer us picture and drawing.

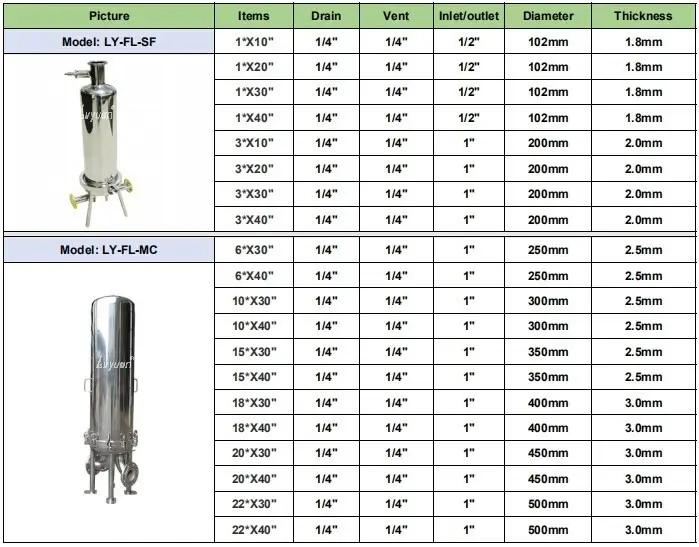

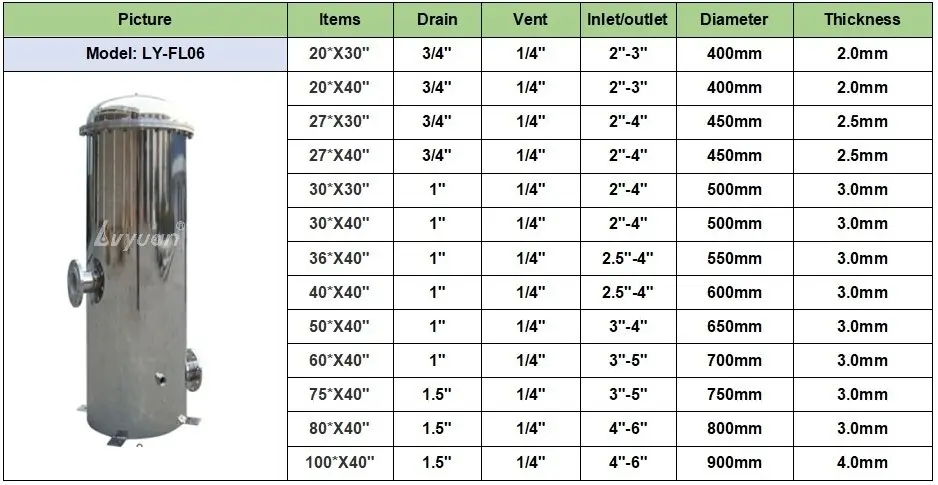

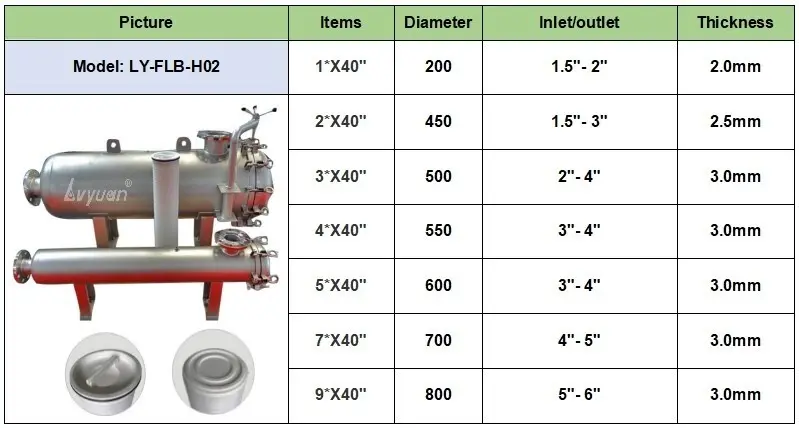

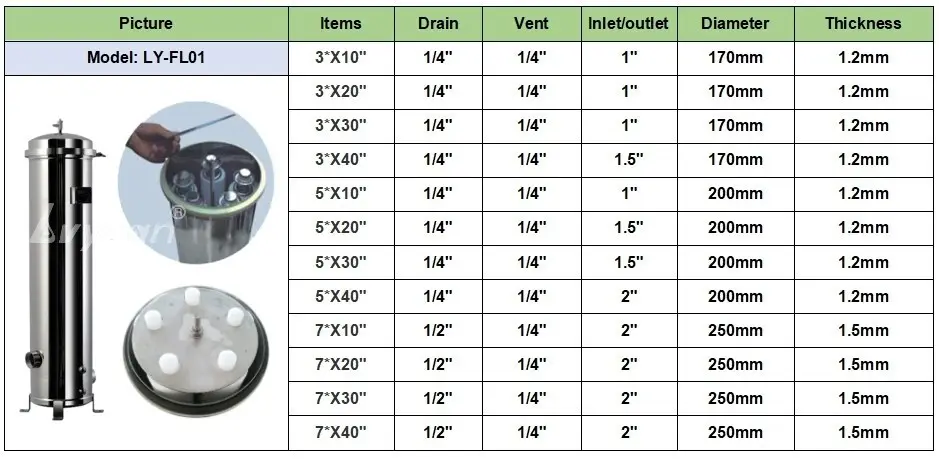

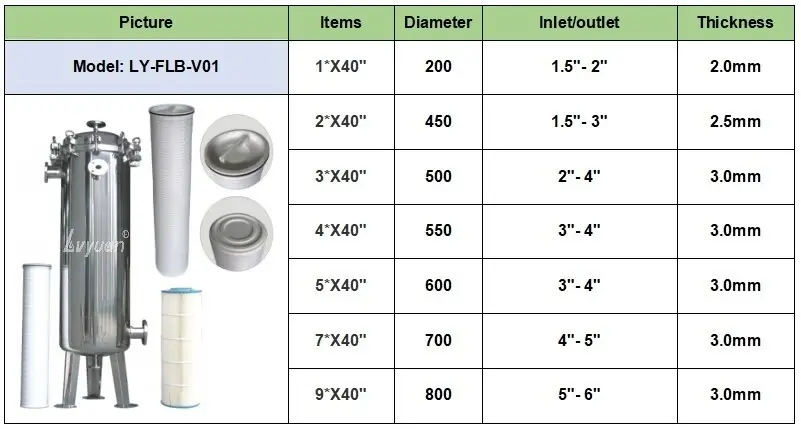

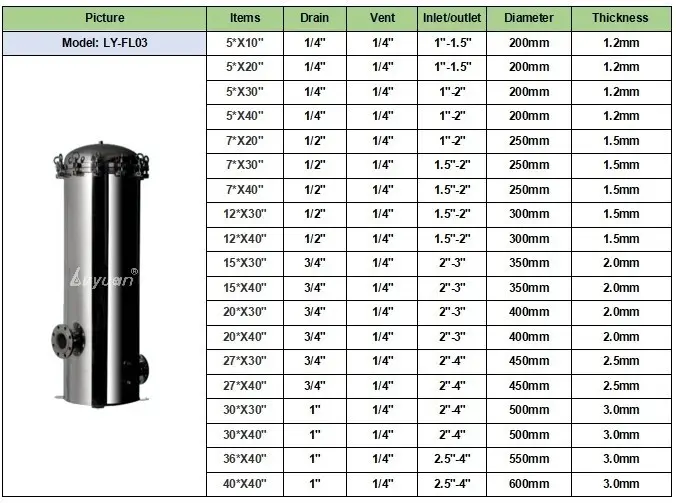

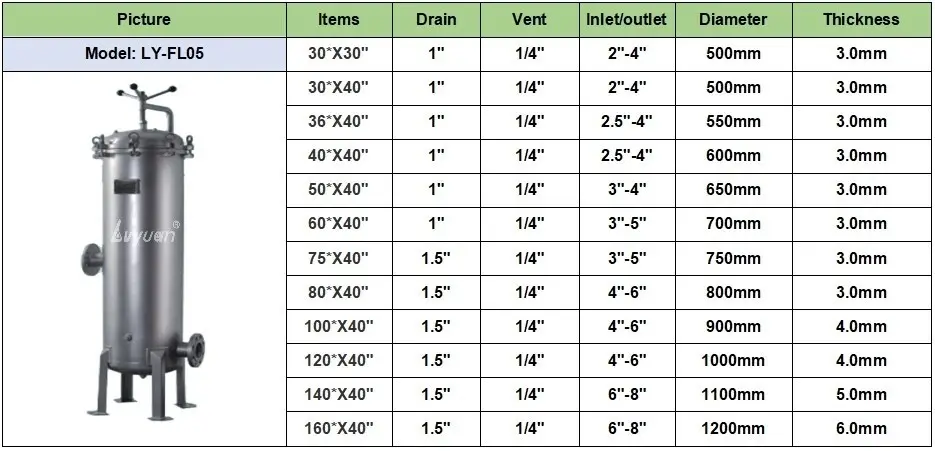

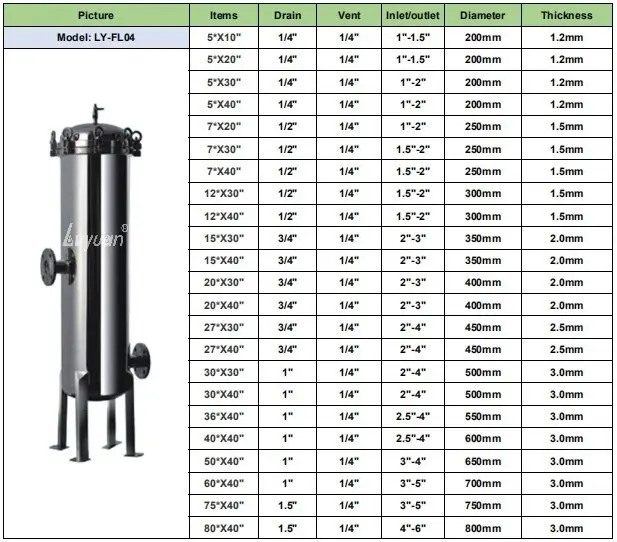

Product name | Stainless Steel cartridge filter housing | Material | SUS304, SUS316, SUS316L |
Cartridge core | single or multi-cartridge | Cartridge length | 2.5'', 5'', 10, 20 ,30 ,40, 50'' or OEM |
Cartridge Quantity | 1 ~ 160 pcs for option | Surface treatment | Polished or sandblast external |
Cartridge end cap | 226/222/215/DOE/Flat/Fin | Suitable filter cartridges | PP melt blown, Pleated filter, CTO activated carbon, Stainless steel mesh/pleated filter cartridges. |
Top Cap installed type | lifting bolts, flange, tri clamp | inlet/outlet connection | clamp, thread, flange, pogoda |
Seal O-ring | silicon,NBR, EPDM, Viton, PTFE | Usage | Liquid, gas filtration |
Max working pressure | 100, 150Psi, OEM | Wall thickness | 1.2~6mm |
1. Industrial water treatment
2. Food & Beverage: bottled water, beers, wines, flavors, polishing, clarification
3. Chemicals & Petrochemicals: Solvents, solutions, chemical filtration, acids, bases
4. Health Care & Pharmaceuticals: Membrane filtration, ophthalmic, oral medicines, serum
5. Industrial processes: clean water, removal of carbon
6. Paints & Coatings: paints, coatings
7. Electronics: High purity water, photo resists
8. Cosmetics: Alcohols, creams, lotions, essential oils, mouthwashes
Factory
Workshop
Our Workshop
Warehouse
Our Warehouse
Team
Our Team
