Affordable activated carbon filter element replace for industry 1
Affordable activated carbon filter element replace for industry 2
Affordable activated carbon filter element replace for industry 3
Affordable activated carbon filter element replace for industry 1
Affordable activated carbon filter element replace for industry 2
Affordable activated carbon filter element replace for industry 3

Affordable activated carbon filter element replace for industry

Inquiry

Overview
Quick Details
Place of Origin:
China
Brand Name:
Lvyuan/OEM
Model Number:
LY-PLF-01
Power (W):
0
Voltage (V):
0
After-sales Service Provided:
none
Warranty:
none
Type:
Reverse Osmosis
Certification:
GS
Use:
Household Pre-Filtration
Application:
Car, RV, Outdoor, Hotel, Garage, Commercial, Household
Power Source:
Manual
Name:
element cartridge filter
Filter membrane material:
PP/PVDF/PTFE/PES/Nylon
Length:
5 / 10 / 20 / 30 / 40 / 50 / 60 inch
Conector:
Fin/222/226/215/DOE/Thread
Micron:
0.22/0.5/1/3/5/10/25/50/75/100/150
Sealing method:
Hot melting welding
Diameter:
70mm/OEM
Inner Core:
PP/SS/OEM
MOQ:
Currently no limited
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week

OEM/ODM RO system element cartridge filter for Industry Water Treatment

Product Description
Affordable activated carbon filter element replace for industry 4

Product Name
Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
Filtration media
PP/PTFE/PES/PVDF/Nylon
Support material
Polypropylene
Core & Structural components
Polypropylene
Inner core
PP/Stainless steel
Packing method
Polybag/Vacuum
Filtration precision
0.1μm, 0.2μm, 0.45μm,  0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
Length
2.5", 5". 10", 20", 30", 40", 50", 60", OEM
Adaptor
215/222/226/Fin/Flat/Thread/OEM
Sealing method
Hot melting welding
Sealing gasket & O-ring material
Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
Effect filtration area
≥0.6m²
Filter cartridge diameter
69mm
Max. working temperature
PP: 88℃,0.27Mpa； PTFE: 80℃, 0.173Mpa ；PES: 85℃, 0.28Mpa
PVDF: 80℃, 0.173Mpa；Nylon: 49℃, 0.21Mpa
Max. positive differential pressure
0.42Mpa (25℃)
Max. back pressure differential pressure
0.28Mpa (25℃)
Sterilization conditions
121℃ 30min
Applications
Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;
Affordable activated carbon filter element replace for industry 6

PP melt blown water filter cartridge

Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems.
PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.
Melt Blown sediment filter cartridge has strong pollutants holding capacity.

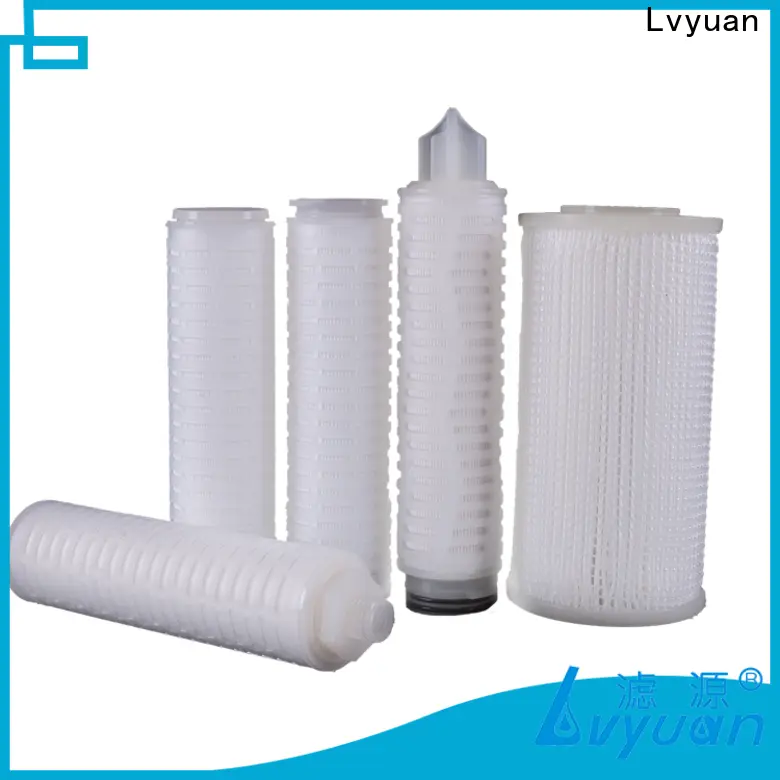

Polypropylene microporous membrane filter

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.

Affordable activated carbon filter element replace for industry 8
Detailed Images
Affordable activated carbon filter element replace for industry 10
Groove surface PP sediment filter cartridges.
Affordable activated carbon filter element replace for industry 12
Flat surface PP sediment filter cartridge
Affordable activated carbon filter element replace for industry 14
215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.
Affordable activated carbon filter element replace for industry 16


DOE opened pleated filter


Affordable activated carbon filter element replace for industry 18


OEM customized size filter

Affordable activated carbon filter element replace for industry 20


Different end caps pleated filter

Affordable activated carbon filter element replace for industry 22

PP melt blown filter cartridge with 1 2 3 layers for option
Affordable activated carbon filter element replace for industry 24

PP shell Polypropylene melt blown filter cartridge


Affordable activated carbon filter element replace for industry 26

Customize PP core or stainless steel shell/core pp filter cartridge

Affordable activated carbon filter element replace for industry 28
Application
Affordable activated carbon filter element replace for industry 30

RO WATER TREATMENT

Affordable activated carbon filter element replace for industry 32

BOTTLED MINERAL WATER

Affordable activated carbon filter element replace for industry 34

CHEMICAL TECHNOLOGY  FILTRATION

Affordable activated carbon filter element replace for industry 36

BEER & BEVERAGE FILTRATION

Affordable activated carbon filter element replace for industry 38

PETROCHMICAL INDUSTRY

Affordable activated carbon filter element replace for industry 40

SEA DESALINATION WATER EQUIPMENT

Packing & Delivery
Affordable activated carbon filter element replace for industry 42
Affordable activated carbon filter element replace for industry 44
Affordable activated carbon filter element replace for industry 46

Container for shipment

Affordable activated carbon filter element replace for industry 48

Container for shipment

Certifications
Affordable activated carbon filter element replace for industry 50
Affordable activated carbon filter element replace for industry 52
Affordable activated carbon filter element replace for industry 54
Our Company
Affordable activated carbon filter element replace for industry 56
Affordable activated carbon filter element replace for industry 58


Let's Make Custom Water Filter Cartridge For You Now.

.
Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s mission is to provide superior water filter cartridges with advanced technologies and gorgeous design. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. can help add competitive advantage of its customers. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
