Company Advantages1. The combination of materials including
sediment filter cartridge makes activated carbon filter element perfect in quality. Its unique density gradient construction maximizes efficiency and minimizes pressure drop
2. Good service and superior quality are key factors for success of activated carbon filter element in overseas market. It has a large effective filter area
3. The product is stable in quality and superior in performance. There is different porosity across the depth of its filter medium
4. Our professional technical team greatly optimizes the performance of our products. It can effectively control filtration precision
5. We are committed to research and development of new technology, so that our product quality and performance is in the forefront of the industry. The filter media is thermally bonded to prevent fiber release while providing consistent flow rates
OEM 5 10 20 30 40 inch 02 micron 5 micron 10 micron cartridge filter high flow filter cartridge
Product Description
| Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length | | |
Filtration media | PP/PTFE/PES/PVDF/Nylon | | |
Support material | Polypropylene | | |
Core & Structural components | Polypropylene | | |
Inner core | PP/Stainless steel | | |
Packing method | Polybag/Vacuum | | |
Filtration precision | 0.1μm, 0.2μm, 0.45μm, 0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm | | |
Length | 2.5", 5". 10", 20", 30", 40", 50", 60", OEM | | |
Adaptor | 215/222/226/Fin/Flat/Thread/OEM | | |
Sealing method | Hot melting welding | | |
Sealing gasket & O-ring material | Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber. | | |
Effect filtration area | ≥0.6m² | | |
Filter cartridge diameter | 69mm | | |
Max. working temperature | PP: 88℃,0.27Mpa; PTFE: 80℃, 0.173Mpa ;PES: 85℃, 0.28Mpa PVDF: 80℃, 0.173Mpa;Nylon: 49℃, 0.21Mpa | | |
Max. positive differential pressure | 0.42Mpa (25℃) | | |
Max. back pressure differential pressure | 0.28Mpa (25℃) | | |
Sterilization conditions | 121℃ 30min | | |
Applications | Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration; | | |
PP melt blown water filter cartridge
Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems. PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.
Melt Blown sediment filter cartridge has strong pollutants holding capacity.
Polypropylene microporous membrane filter
PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.
Detailed Images

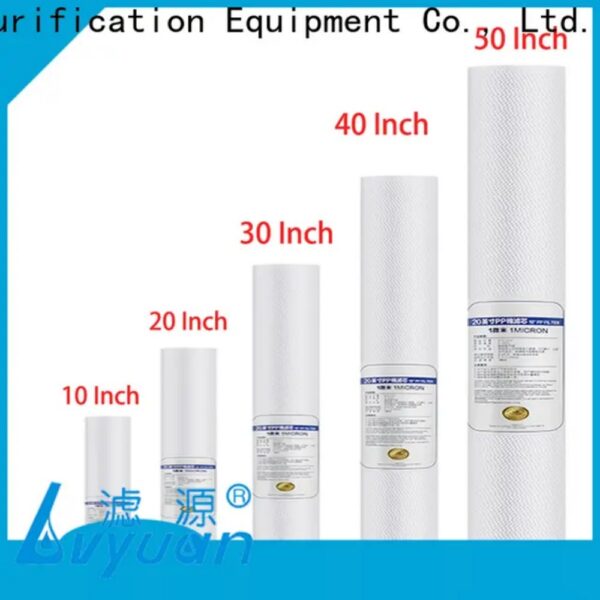

Groove surface PP sediment filter cartridges.
Flat surface PP sediment filter cartridge
215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.
DOE opened pleated filter
OEM customized size filter
Different end caps pleated filter
PP melt blown filter cartridge with 1 2 3 layers for option
PP shell Polypropylene melt blown filter cartridge
Customize PP core or stainless steel shell/core pp filter cartridge
Application
CHEMICAL TECHNOLOGY FILTRATION
BEER & BEVERAGE FILTRATION
SEA DESALINATION WATER EQUIPMENT
Packing & Delivery
Certifications
Our Company
Let's Make Custom Water Filter Cartridge For You Now.
According to the customer's order requirements, Guangzhou Lvyuan Water Purification Equipment Co., Ltd. can accurately and timely complete the production tasks with quality and quantity. Its unique density gradient construction maximizes efficiency and minimizes pressure drop.
Guangzhou Lvyuan Water Purification Equipment Co., Ltd. will strictly inspect product package to ensure
water filter cartridges will be totally safe during transportation. Its unique density gradient construction maximizes efficiency and minimizes pressure drop.
Company Features1. The engineering equipment for activated carbon filter element production in Guangzhou Lvyuan Water Purification Equipment Co., Ltd. is in a leading position in the local area.
2. In our business sustainable development, we make plans to promote growth by investing in science and research, environmental organizations, and special group caring projects.
