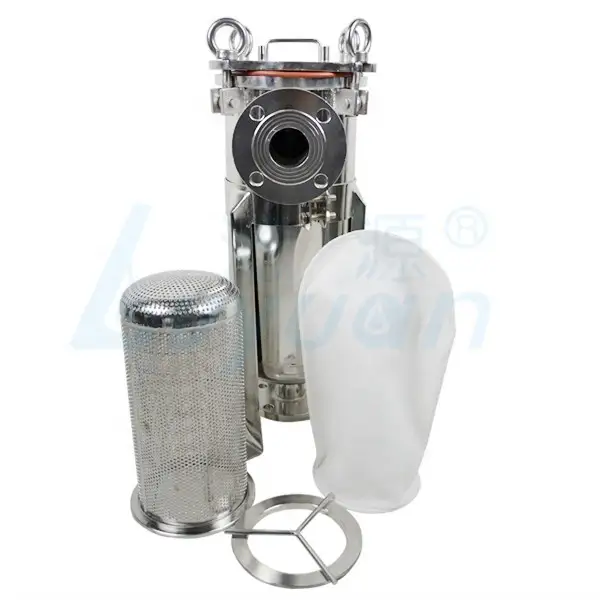

Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 1
Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 2
Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 3
Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 4
Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 5
Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 6
Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 1
Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 2
Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 3
Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 4
Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 5
Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 6

Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Applicable Industries:
    Manufacturing Plant, Food & Beverage Factory, water treatment
    Place of Origin:
    Guangdong, China
    Brand Name:
    Lvyuan,OEM,ODM
    Material:
    staniless steel 304/ss304
    Weight:
    25kg
    Size:
    370*370*900mm
    Power:
    0
    Warranty:
    1 Year
    After-sales Service Provided:
    Online support
    Certification:
    ISO9001
    Model:
    BFH-1
    material:
    sus304
    filter bag size:
    180*450mm
    outer/inner:
    polished
    Working pressure:
    100Psi
    closure:
    Flange
    sealing:
    EPDM O-ring
    inlet/outlet:
    Flange
    Design temperature:
    100℃

    Packaging & Delivery

    Selling Units:
    Single item
    Single package size:
    45X45X120 cm
    Single gross weight:
    30.000 kg
    Package Type:
    paper box and if quantity up to 10 pcs would have wooden case.
    Lead Time :
    Quantity(Pieces) 1 - 10 11 - 50 51 - 100 >100
    Est. Time(days) 15 25 35 To be negotiated
    Product Description
    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 7

    Features:

    1. The bag filter has large flow rate capacity, small volume and dirt holding capacity.

    2. It is convenient and quick to replace the filter bag, and the filter is no-clean, saving labor and time.

    3. The side leakage rate of the filter bag is small, which greatly improves the filtration quality.

    4. The bag filter can withstand greater working pressure, low pressure loss, low operating cost and obvious energy saving effect.

    5. Filter bag filtration accuracy has been continuously improved and has reached 0.5um.

    6. The bag filter has a wide range of applications, flexible use and various installation methods. Widely used in environmental protection, chemical, metallurgical, pharmaceutical, food and other industries.

    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 9
    Products Show

    LY-BFH Stainless Steel BAG Filter Housing standard Specification:

    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 11
    Material
    SS304
    Bag material
     PP/PE/nylon/PTFE
    Finishing
    outer-polished or sand blast surface
    inner-polished
    Closure
    Flange
    Inlet/Outlet
    DN50 Flange or customied
    Pressure
     Maximum 1 Mpa/150psi
    Continuous operating 0.5 Mpa/72.5psi
    Sealing
    EPDM O-ring
    Filter bag
    180*450mm

    Users can choose filter bags of different shapes, different apertures, different structures and different materials according to different filtering needs to obtain the most economical and effective filtering effect.

    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 13
    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 15
    Product list
    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 17
    NO.
    Name
    Quantiy/
    Material
    1
    Leg 500x38x38x3.0
    3pcs/ss304
    2
    water outlet DN50 flange
    1pcs/ss304
    3
    Bottom head φ219x1.5
    1pcs/ss304
    4
    Basket φ170x380
    1pcs/ss304
    5
    Housing body φ219x1.5
    1pcs/ss304
    6
    Clamp for leg
    1pcs/ss304
    7
    Internal flange φ214xφ173x16
    1set/ss304
    8
    Plate
    1set/ss304
    9
    Flange Quick-bolt φ219x250x25
    1pcs/ss304
    10
    Quick-bolt M12
    6pcs/ss304
    11
    Vent 1/4" thread
    1pcs/ss304
    12
    Handle
    1pcs/ss304
    13
    Top cover plate φ312x12.0
    1pcs/ss304
    14
    O-ring
    1pcs/EPDM
    15
    Quick-bolt under flame
    12pcs/s304
    16
    Water inlet DN50 Flange
    1pcs/ss304
    Related Products
    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 19
    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 21
    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 23

                         Water filter bag                                    clamp type bag filter                                     Top into bag filter

    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 25
    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 27
    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 29
    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 31

    sanitary filter housing                clamp type filter housing       single cartridge filter housing             cartridge filter housing

    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 33
    Certifications
    Bag Filter Housings 304 filter bag size 1 Stainless Steel 150 Psi filter housing 35
    FAQ

    1. How I choose the bag filter housing size?

      We can recommand one for you.As you tell us what kind of fluid you want to filter, including flow rate, operating pressure, temperature, acid value etc.

    2. How about the lead time?

    Usually within 10 working days.if you have request ,could you pl tell us your delivery day ,we will check the production schedule, and give you exact answer.If we can reduce the lead time, we will try our best.

    3. Can we order small quantity?

    Yes, we can accept samples purchase and we hope built long term relationship with you.
