best pleated water filter cartridge manufacturer for sea water desalination Lvyuan
-
v s
- At present, Lvyuan Water Purification Equipment enjoys significant recognition and admiration in the industry depending on accurate market positioning, good product quality, and excellent services.
1. The finest quality of raw materials and sophisticated technology used make Lvyuan pp pleated filter cartridge fine in craftsmanship.
2. The product is characterized by low heat generation. During its operation, exothermic reactions between the chemicals used and Joule heating will not increase its temperature.
3. The comprehensive sales network shows the power of Lvyuan in pleated water filter cartridge industry.
4. Lvyuan set up an integrated series of quality assurance system to ensure the pleated water filter cartridge quality.

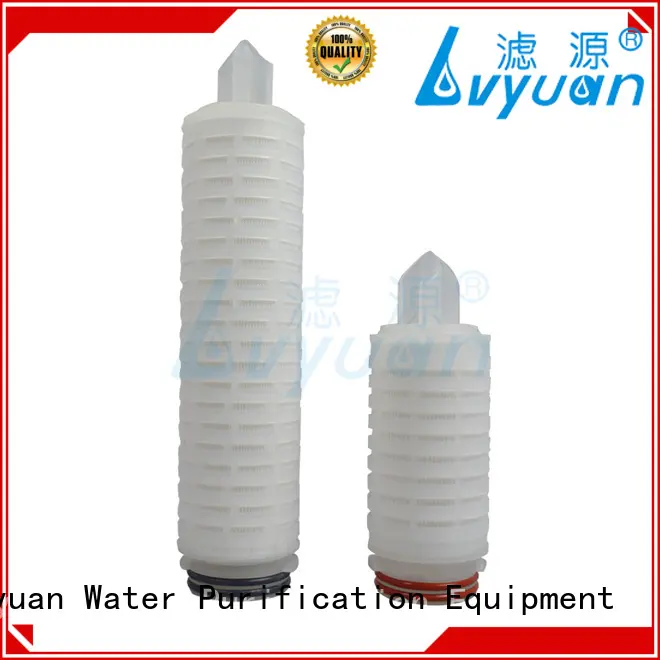

PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications.
They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns.
The high surface area ensures long service life and low initial pressure drops. All cartridges hardware components are made from high purity polypropylene materials for use in critical process application. All the Cartridges are manufactured and assembled in a clean room environment to minimized the possibility of contamination.
This type of cartridges are available in a wide range of configurations to fit most commercially available filter housings.
Product Feature
◪ Excellent chemical compatibility. Suitable for filtering organic solvents, acid bases.
◪ The multi layers PP membrane structure enables a graded filtration pore sizes and increases the dirt-holding capacity of the PP pleated water cartridge filters.
◪ Large flow volume, low differential pressure and long service life.
◪ Hydrophilic membrane with high flow.
◪ Pleated design increased the filtration area for deep filtration.
◪ Application of thermal-bonding technique, strong and no any pollution.
◪ Full rage of removal microns ratings.
◪ Graded pore density for high dirt holding capacity.
◪ Common use in clean and sterilize with cabinet & steam with high pressure.
Product Parameter
| Filter media | PP/Polypropylene |
| Support | PP/Polypropylene |
| Core/End cap | PP/Polypropylene |
| Seal material | Silicone/EPDM/NBR/Viton/Teflon |
| Outer diameter | 2.7” , customized |
| Length | 9.75”, 10”, 20”, 30”, 40” customized |
| End cap | DOE, 215, 222, 226, FIN, FLAT, Stainless steel, or customized. |
| Filtration area | 0.4-0.7m² (10”) |
| Max.operating temperature | 88℃, 0.28Mpa. 60℃, 0.42Mpa. |
| Micron rating(μm) | 0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 25, 30, 50, 60 |
Product Details
Product Applications
Reverse osmosis water system prefiltration
Company Features
1. Guangzhou Lvyuan Water Purification Equipment Co., Ltd. has become one of the global top manufactures, providing high quality pp pleated filter cartridge for customers from all over the world.
2. We continually invest in the most advanced manufacturing facilities and technologies. These facilities and technologies give us the capacity to manufacture quality products per year.
3. high efficiency pleated filters is a permanent tenet of Guangzhou Lvyuan Water Purification Equipment Co., Ltd. to improve himself. Ask online! High quality products, reasonable prices, high capacity and swift delivery are Guangzhou Lvyuan Water Purification Equipment Co., Ltd.'s core aims. Ask online!
