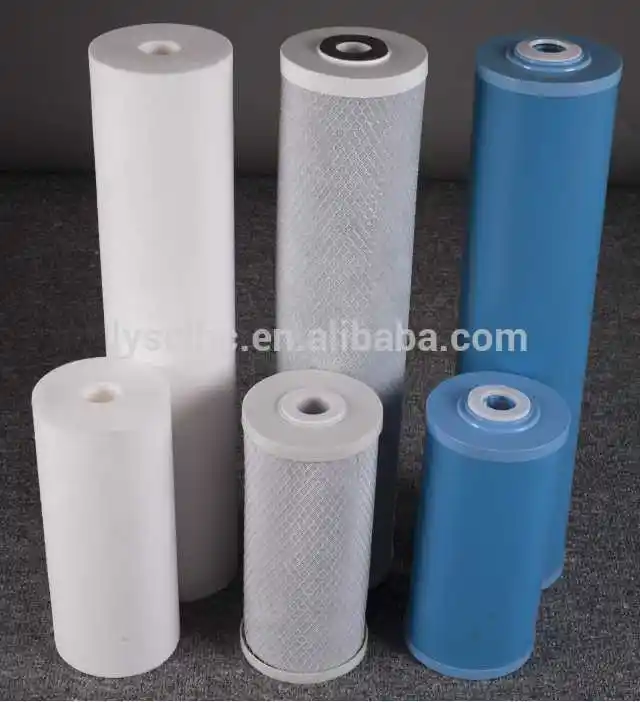

Big Blue Carbon Block Water Filter 20" for household drinking water

Inquiry

Write a Review

Overview

Quick Details

Place of Origin:: Guangdong, China

Power (W):: 0

Voltage (V):: 0

After-sales Service Provided:: Onsite Installation

Warranty:: 1 Year

Type:: Activated Carbon

Certification:: ce, GS, CE

Application:: Hotel, Car, Outdoor, Garage, RV, Commercial, Household

Power Source:: Manual

Product name:: Big Blue Carbon Block Water Filter

Micron Rate:: 1, 3, 5, 10 20 micron filters cartridge

application:: water filter parts, Reverse Osmosis

Length:: 5", 10", 20", 30", 40", 50'' inch

Filter Media:: activated carbon, PP

Size:: slim or jumbo

material:: coconut shell

Usage:: Liquid Cartridge filter

Pre-filter:: UDF, CTO, PP filter cartridge

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Day Big Blue Carbon Block Water Filter

Product Description

Big Blue Carbon Block Water Filter 20" for household drinking water

PP melt blown filter cartridge (PPF) is made of polypropylene material without any chemical glues. PP melt blown filter cartridge has strong pollutants holding capacity. It can remove suspended substances, particulate and rust effectively, providing efficient filtration and long service life. This kind of cartridge is used for the front filter cartridge to protect others.

Application

Big Blue Carbon Block Water Filter 20 for household drinking water 11

1. Drinking water treatment

2. Industrial water treatment, like power, plating and oil industry.

3. Food and Beverage

4. Electronic

5. Pre-filtration or RO Reverse Osmosis system

6. Chemical, solvent, wine, etc.

Big Blue Carbon Block Water Filter 20 for household drinking water 13

Big Blue Carbon Block Water Filter 20 for household drinking water 15

Big Blue Carbon Block Water Filter 20 for household drinking water 17

Specification

Product	Melt Blown PP sediment filter cartridge
Length	5", 10", 20", 30", 40", 50'', 60'' inch
Micron Rate	1~100micron customized, especially 1, 3, 5, 10 micron
End Cap	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Inner Diameter	28~30mm
Outer Diameter	60~65mm, Jumbo 110~115mm
Gasket/O ring material	Silicon/EPDM/NBR/Viton
Material	PP / polypropylene
Style	Groove, Pressure points, Flat, Embrossing
Inner core	PP or None
Interface	Flat, insert
Max differential pressure	3 kgf/cm²
Max operating temperature	80°c
Operating differential pressure	0.1kgf/cm2
Common weight	100- 120g/10" (It can be customized)

Big Blue Carbon Block Water Filter 20 for household drinking water 19

UDF GAC Granular Activated Carbon filter cartridge series (Length: 5'' 10'' 20'')

Big Blue Carbon Block Water Filter 20 for household drinking water 21

CTO / Compression Sintered Activated Carbon filter cartridge series (Length: 5'' 10'' 20'')

Big Blue Carbon Block Water Filter 20 for household drinking water 23
