Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

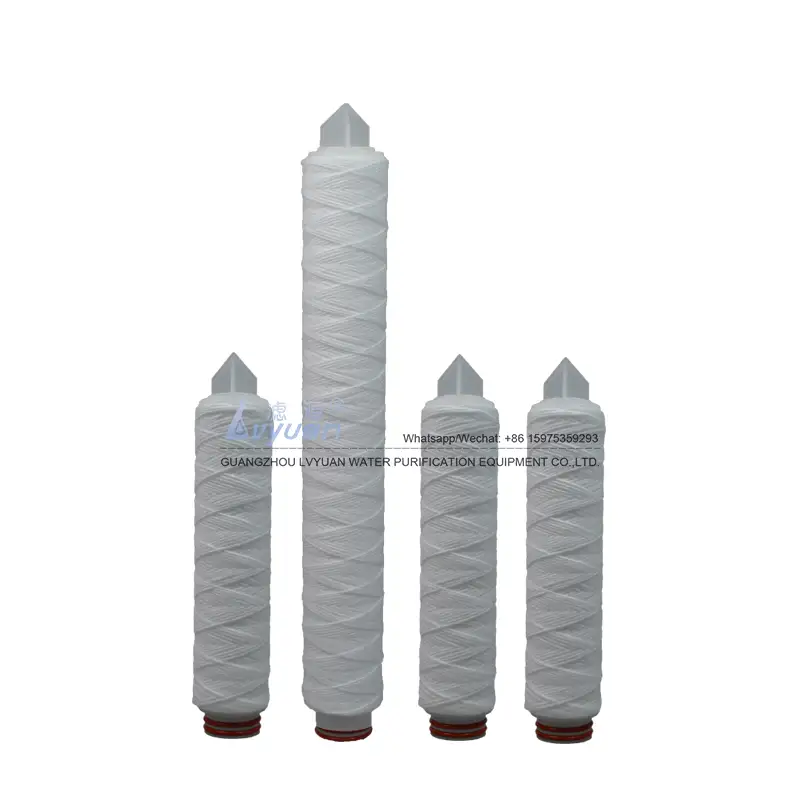

Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 1
Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 2
Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 3
Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 4
Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 5
Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 6
Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 1
Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 2
Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 3
Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 4
Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 5
Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 6

Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    Place of Origin:
    Guangdong, China
    Brand Name:
    Customized
    Material:
    Customized, polypropylene fiber , absorbent cotton , glass fiber
    Weight:
    Customized
    Size:
    Customized
    Power:
    0
    Warranty:
    Unavailable
    Item:
    PP filter string yarn sediment water filter cartridge
    Core:
    PP/SS
    Micron:
    1/5/10/20/30/50/75/100
    Inner Diameter:
    28mm / 30mm / OEM
    Length:
    5" / 10" / 20" / 30" / 40" / 50" / 60"
    PP wound filter+PP core:
    60℃
    PP wound filter+SS:
    100℃
    Cotton filter+SS:
    120℃
    Glass fiber+SS:
    180 - 300℃
    After-sales Service Provided:
    Online support

    Packaging & Delivery

    Selling Units:
    Single item
    Single package size:
    30X5X5 cm
    Single gross weight:
    0.200 kg
    Package Type:
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 51x31x33cm- 10" 25pcs/20" 25pcs
    Lead Time :
    Quantity(Pieces) 1 - 500 501 - 1000 1001 - 5000 >5000
    Est. Time(days) 2 5 7 To be negotiated
    Product Description
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 7

    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor

    Our string wound water filter cartridges are structured loose outer layers and tight inner layers which can offer true depth filtration for high dirt holding capacity and extremely low media migration to ensure temperature and chemical compatibility. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand severe operating conditions.

    Product name
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor
    Material
    Polypropylene fiber , Absorbent cotton , Glass fiber
    Precision
    1-100 micron
    Outer diameter
    28mm-30mm/OEM
    Inner diameter
    60mm-63mm /115mm /OEM
    Length
    9.75" 9.87" 10'' 20'' 30'' 40'' 50" 60" / OEM
    Connector
    DOE/215/222/226/Fin/OEM


    Max operating temperature
    PP with PP core : 60 °C
    PP with SS core : 100 °C
    Cotton with SS core : 120 °C
    Glass fiber with SS core : 180 °C -- 300 °C
    Detailed Images

    String wound PP sediment Filter with OEM size

    This filter cartridge is made of textile fiber (polypropylene string, Absorbent cotton string, acrylic fiber yarn, fiberglass). According to the specified precess, it is winded tightly with the string in the polyporous core, structured by loose outer layers and tight inner layers, the filter cartridge porous outside it is big, inside it is small, it has the true deep filtration effect, it can remove the suspension, rust, particles, etc.

    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 9
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 11
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 13
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 15
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 17
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 19

    Jumbo PP yarn string wound water filter

    Big jumbo string wound water filter is designed for the removal of sediment, sands, dirt and rust from raw water. 10 20 30 40 inch length size is available, outer diameter is 110mm, inner diameter 28mm/30mm.


    The rated temperature is up to 165℉, polypropylene yarn construction for excellent chemical resistance.

    Fiberglass wire wound filter cartridge

    The fiberglass wire wound filter cartridge is a kind of deep filtration. It is made of glass fiber according to a specific winding process by different winding methods. The glass fiber wire wound filter adopts the structure of inner tight outer pine.
    Applications:
    Organic solvent filtration, food & beverage & wine, pharmaceutical industry, high & low temperature gas steam filtration.

    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 21
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 23
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 25
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 27

    Absorbent cotton string wound filter

    Absorbent cotton water filter for organic solvents, water, oil, alkaline solution, beverages, medicine, etc.
    The working temperature is ≤120℃
    Non-toxic, odorless, no secondary pollution, and long service life.
    Length: 10", 20", 30", 40"
    Core: Stainless steel/SUS304 316L

    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 29
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 31
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 33

    Polypropylene string wound PP yarn filter

    Filter media: Polypropylene
    Micron: 1um, 5um, 10um, 20um, 25um, 50um, 75um, 100um
    Polypropylene with PP core: ≤80℃
    High dirt holding capacity, longer service life.
    Fits to all the standard filter housings.
    Wide chemical compatibility and high filtration micron.
    Various filter media fit with various applications.
    All kinds of adaptors are available.

    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 35
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 37
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 39
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 41
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 43
    Application
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 45

    RO SEA WATER TREATMENT

    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 47

    POWER PLANT

    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 49

    BIOLOGY TECHNOLOGY

    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 51

    PETROCHMICAL INDUSTRY

    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 53

    BOTTLED MINERAL WATER

    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 55
    BEER & BEVERAGE FILTRATION
    Packing & Delivery
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 57
    Our Company
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 59
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 61
    Certifications
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 63
    Contact Us
    Big filtration 5 micron 10 20 30 inch polypropylene string wound pp sediment filter with 222 226 adaptor 65
    Our customers can design our water filter cartridges and send us drawing to produce. It is available in a wide selection of micron ratings from 1 to 100 μm. Lvyuan attaches great importance to producing water filter cartridges with high quality. It is available in a wide selection of micron ratings from 1 to 100 μm.
