    Overview
    Quick Details
    Condition:
    New
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    After Warranty Service:
    Online support
    Local Service Location:
    none
    Showroom Location:
    none
    Video outgoing-inspection:
    Provided
    Machinery Test Report:
    Provided
    Marketing Type:
    Ordinary Product
    Warranty of core components:
    1 Year
    Core Components:
    Engine
    Place of Origin:
    Guangdong, China
    Brand Name:
    Customized
    Material:
    Customized
    Weight:
    Customized
    Size:
    Customized
    Power:
    Customized
    Warranty:
    Unavailable
    Item Name:
    Big single clamp fin 10 inch ss water filter cartridge housing
    Filter cartridge length:
    10" 20" 30" 40"
    Stainless steel:
    SUS304, SUS316L
    Cartridge filters quantity:
    Single core
    Surface treatment:
    Polished & Sandblast
    Seal o-ring:
    Silastic/NBR/EPDM/Viton
    Top cap installed type:
    Clamp type
    Connector type:
    222/226/DOE
    Inlet & Outlet type:
    Internal thread
    Packaging method:
    Export standard box

    Packaging & Delivery

    Selling Units:
    Single item
    Single package size:
    50X25X25 cm
    Single gross weight:
    6.000 kg
    Package Type:
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing with stainless steel mesh housing cartridge filter: Packaging: Export standard box/As required
    Lead Time :
    Quantity(Units) 1 - 10 11 - 100 >100
    Est. Time(days) 7 15 To be negotiated
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing
    Product Description
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 7

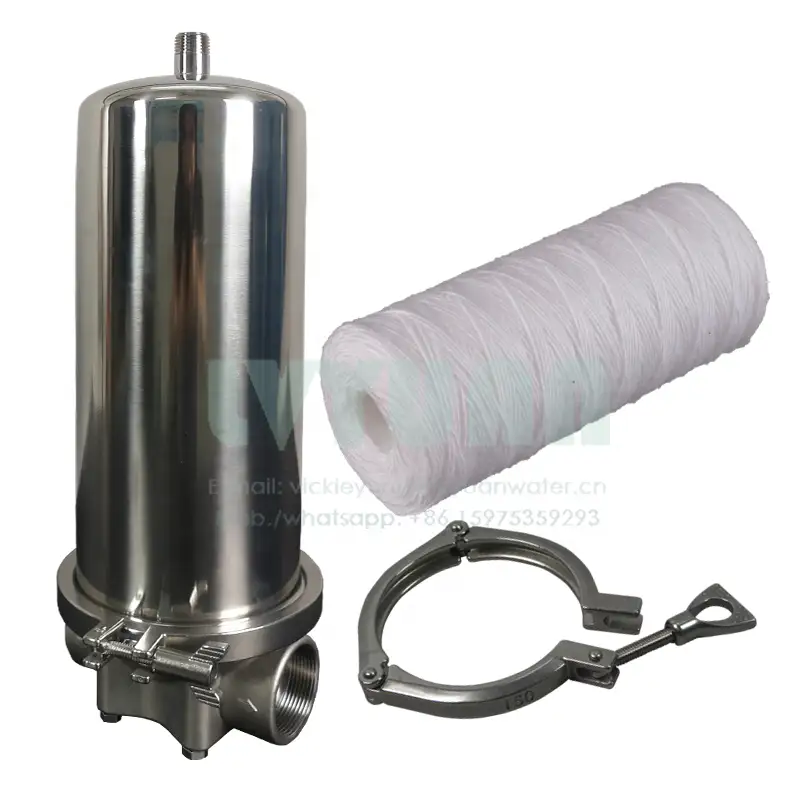

    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing with stainless steel mesh housing cartridge filter:

    LVYUAN  stainless steel cartridge filter housing offers wide range of flow capacities & contaminant holding capacities.

    Cartridge filters are normally used as polishing filter in almost all process industries. Cartridge filter is constructed of filter

    housing, filter cartridges,tube sheet, positive sealing arrangement for cartridge depending upon type of cartridge& choice of end connections. Positive sealing arrangement for cartridge filter assures no particle migration or fiber migration, even after high differential pressures.

    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 9
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 11
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 13
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 15
    Model No.
    Drain
    Vent
    In & Out
    Body diameter
    Thickness
    LY-FL-SC-L1
    1/4"
    1/4"
    1/2"  3/4"  1"
    89mm
    1mm-2mm
    LY-FL-SC-L2
    1/4"
    1/4"
    1/2" 3/4" 1"
    89mm
    1mm-2mm
    LY-FL-SC-L3
    1/4"
    1/4"
    1/2" 3/4" 1"
    89mm
    1mm-2mm
    LY-FL-SC-L4
    1/4"
    1/4"
    1/2" 3/4" 1"
    89mm
    1mm-2mm

    Features:

    1.Inlet & outlet size is 1/2", 3/4". 1" for easy installation.

    2. Working pressure 8kg/0.8Mpa, 10kg/1Mpa is supported.

    3. Use the tap water pressure to provide power, no power consumption.

    4. Wall-mounted, counter-top, very simple installation.

    5. It is suitable for using in the water mater switch, for the pre filtration system and RO system protection.

    6. Resistance to strong acid and alkali.

    7. Low cost, it fits different kind of filter elements.

    Structure:

    Housing material 304 or 316L stainless steel, the housing body through inside and outside polishing, it meets the sanitary grade.

    Inside with the silicone gasket, it can be applied to cold & hot water temperature.

    High pressure resistance, corrosion resistance.

    Detailed Images
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 17
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 19
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 21
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 23
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 25
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 27
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 29
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 31
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 33
    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 35
    Application

    1. Widely used in UF, RO, EDI security filtration and the end-filtration.

    2. Chinese herbal medicine, such as liquid filtration, biological agents extraction, purification and concentration.

    3. Electonics, semiconductor industry with high purity water preliminary filter, teminal filter.

    4. Oil field, chemical reagent, liquid organic products, high purity chemicals, strong medicine and other filtration.

    5. Drinking pure water, mineral water, fruit juice, tea, beverages, health drinks.

    6. Liquid, wine, beer, yellow wine and ther friut wine filtration, pure draft beer aseptic filtration.

    7. The life and procution waste water treatment and water recycling process of pre-treatment filtering or security filtering.

    8. Biological engineering, oil refining, printing and dyeing, testile industry water supply and waste water treatment, research and test filter, etc.

    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 37

    BOTTLED WATER

    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 39

    BEVERAGE & DRINKS

    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 41

    BIOLOGY TECHNOLOGY

    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 43

    RO WATER TREATMENT

    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 45

    CHEMICAL INDUSTRY

    Big single clamp fin 10/20/30/40 inch ss water filter cartridge housing 47

    POWER PLANT
