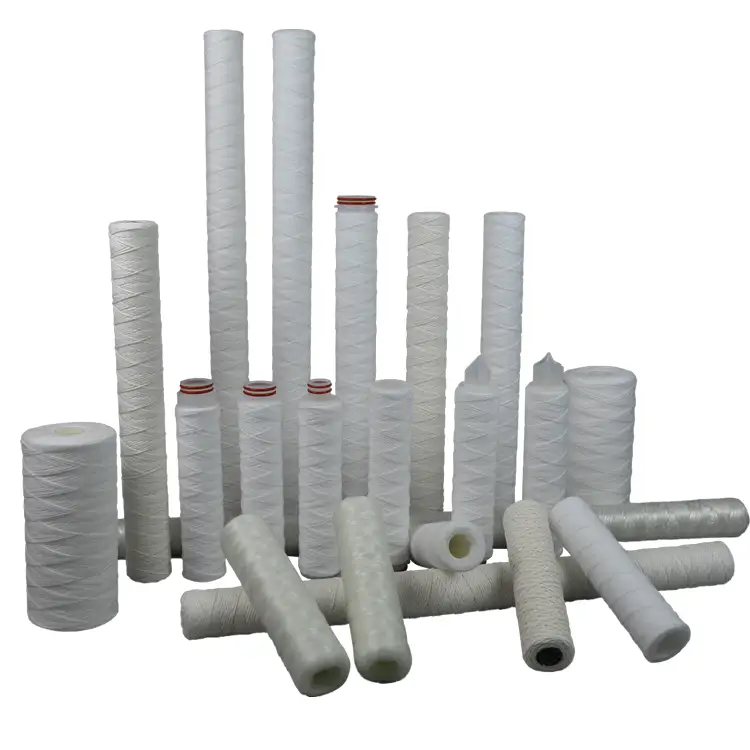

String wound sediment PP cotton yarn filter cartridge
Our String spiral wound filter cartridge is made of the textile fabric string (polypropylene / PP, absorbent cotton, glass fiber) preciously winding onto the multi-hole axles. They can offer true dept filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand higher PSID and severe operating conditions. This kind of cartridge is use for industrial pre-filtering water treatment.
1. Pre-filter for drinking water treatment
2. Acid Base liquid in Chemical process
3. Food and Beverage industry
4. Semiconductor
5. Pharmaceuticals
Product | String wound filter cartridge |
Material | Polypropylene, absorbent cotton, glass fiber |
Precision filtration | 1~100 micron |
Outer diametr | 60~65mm, Jumbo 110~115mm |
Inner diameter | 28mm or 30mm |
Code | DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat |
Seal Material | EPDM, Silicone, Viton |
Length | 5'', 10'', 20'', 30'', 40'', 50'' |
Max differential pressure | 2 kgf/cm² |
Max pressure | 4 kgf/cm² |
Max operating temperature | PP with PP core:60 °C PP with SS core: 100 Absorbent cotton with SS core:120 Glass fibre with SS core: 180~300 |
Operating differential pressure | 0.1kgf/cm2 |
1. Q: Are you factory?
A: Yes, we are the professional manufacturer with continuous and improved R & A production, sales and service supply. We will always provide the best technical service support to our clients both in and after warranty period.
2. Q: How to get a quotation?
A: In order to send you our best price, please kindly inform us detail product parameters and order quantity.
3. Q: Can I get your products with our logo and design?
A: Customized service is available. We can OEM or ODM with your logo, but customized products will be extra cost.
4. Q: What's the MOQ ?
A: We can offer the quantity you required, as we don't dictate MOQ terms.
