Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 1

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 2

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 3

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 4

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 5

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size

Inquiry

Write a Review

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Lvyuan / OEM

Model Number:: LY-SW series

Product name:: pp yarn wounded filter cartridge

Micron Rate:: 1, 3, 5, 10 micron filters cartridge

Material:: PP / Cotton / glass fiber

Inner core:: PP or stainless steel

Length:: 5", 10", 20", 30", 40", 50'' inch

Gasket/O ring material:: Silicon/EPDM/Viton

Usage:: liquid filter, water filter parts

Inner diameter:: 28, 30mm

Outer diameter:: 60~62mm, Jumbo 110~115mm

Certification:: CE SGS ISO

Supply Ability

Supply Ability:: 5000 Piece/Pieces per Day pp yarn wounded filter cartridge

Product Description

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 6

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size

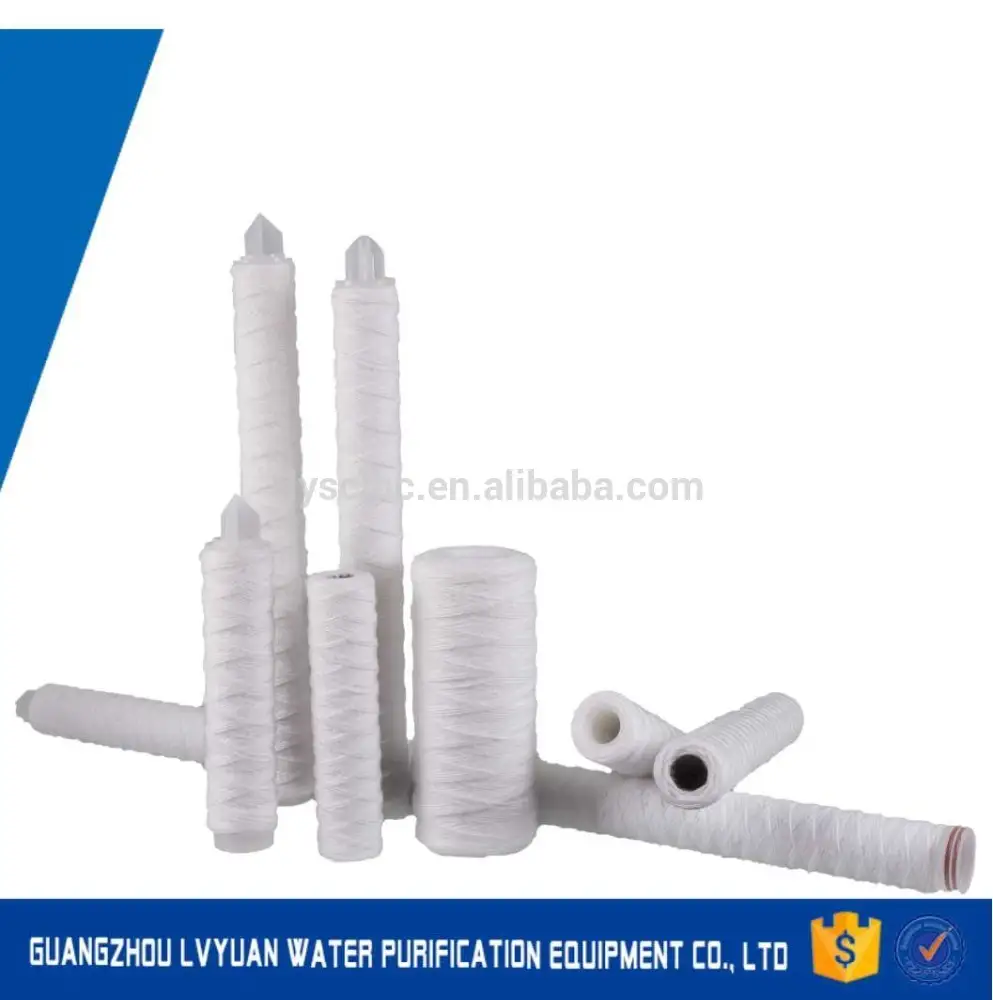

Our String spiral wound filter cartridge is made of the textile fabric string (polypropylene / PP, absorbent cotton, glass fiber) preciously winding onto the multi-hole axles. They can offer true dept filtration for high dirt holding capacity and extremely low media migration. The main advantage of the string wound filter cartridge is its exceptionally high structural strength, therefore, they can withstand higher PSID and severe operating conditions. This kind of cartridge is use for industrial pre-filtering water treatment.

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 14

PP string wound filter cartridge

Cotton string wound filter cartridge

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 16

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 18

5 to 40 inch spiral string wound filter cartridge

Fiberglass string wound filter cartridge

Application

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 20

1. Pre-filter for drinking water treatment
2. Acid Base liquid in Chemical process
3. Food and Beverage industry
4. Semiconductor
5. Pharmaceuticals

Specification

Product	String wound filter cartridge
Material	Polypropylene, absorbent cotton, glass fiber
Precision filtration	1~100 micron
Outer diametr	60~62mm, Jumbo 110~115mm
Inner diameter	28mm or 30mm
Code	DOE, 222+Fin, 222+Flat, 226+Fin, 226+Flat
Seal Material	EPDM, Silicone, Viton
Length	5'', 10'', 20'', 30'', 40'', 50''
Max differential pressure	2 kgf/cm²
Max pressure	4 kgf/cm²
Max operating temperature	PP with PP core:60 °C PP with SS core: 100 Absorbent cotton with SS core:120 Glass fibre with SS core: 180~300
Operating differential pressure	0.1kgf/cm2

Related Products

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 22

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 24

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 26

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 28

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 30

Why Choose us

Guangzhou Lvyuan Water Purification Equipment Co.,Ltd is a comprehensive enterprise. As a Leader Manufacturer in Guangzhou, China, we have many competitive products, including:
1. All kinds of filter Cartridges, pleated, sintered, string wound, melt blown
2. Stainless steel Cartridge filter housings and bag filter housings
3. RO, UF water purifier and equipment
4. Many kinds of Water treatment equipments
5. Many kinds of Water purifiers and equipments, water softners, and more.
We devote to water filtration development for more than 10 years. We can supply advanced technical support and solution for all of our customers during and after warranty period.

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 32

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 34

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 36

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 38

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 40

Packing & Delivery

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 42

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 44

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 46

FAQ

1. Q: Are you factory?

A: Yes, we are the professional manufacturer with continuous and improved R & A production, sales and service supply. We will always provide the best technical service support to our clients both in and after warranty period.
2. Q: How to get a quotation?
A: In order to send you our best price, please kindly inform us detail product parameters and order quantity.
3. Q: Can I get your products with our logo and design?
A: Customized service is available. We can OEM or ODM with your logo.
4. Q: What's the MOQ ?

A: We can offer the quantity you required, as we don't dictate MOQ terms.

Contact

Crazy Hot String water pp yarn wounded filter cartridge with Slim and Jubo size 48

Concentrating on the quality assurance of water filter cartridges turns out to be helpful for the development of Lvyuan . It is available in a wide selection of micron ratings from 1 to 100 μm. From product design to production, Lvyuan strictly controls the quality of water filter cartridges. It is available in a wide selection of micron ratings from 1 to 100 μm.
