Customized Dimension Activated Carbon Block Filter Cartridge for Water Air Purification

Customized Dimension Activated Carbon Block Filter Cartridge for Water Air Purification

Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Overview
Quick Details
Classification:
Chemical Auxiliary Agent
CAS No.:
7440-44-0
Other Names:
coconut shell carbon
MF:
C
EINECS No.:
240-383-3
Purity:
above 90%
Place of Origin:
Guangdong, China
Type:
Adsorbent
Adsorbent Variety:
Activated Carbon
Usage:
Coating Auxiliary Agents, Electronics Chemicals, Leather Auxiliary Agents, Paper Chemicals, Petroleum Additives, Plastic Auxiliary Agents, Rubber Auxiliary Agents, Surfactants, Textile Auxiliary Agents, Water Treatment Chemicals, Air or Water Purification
Brand Name:
Lvyuan / OEM
Model Number:
LY-AC
Product name:
Carbon block filter
Micron Rate:
1, 3, 5, 10, 20, 50, 100um
Material:
activated carbon
Length:
OEM, 5", 10", 20", 30", 40"
Outer diameter:
OEM, 50, 60, 70, 80mm
End cap:
DOE,SOE,222,226,215, M36, M24, M22, M20 thread interface
Certification:
SGS/ISO9001
Dimension:
customized solution
Working pressure:
0.1 to 30Mpa
Supply Ability
Supply Ability:
5000 Piece/Pieces per Day carbon block water filter
Product Description

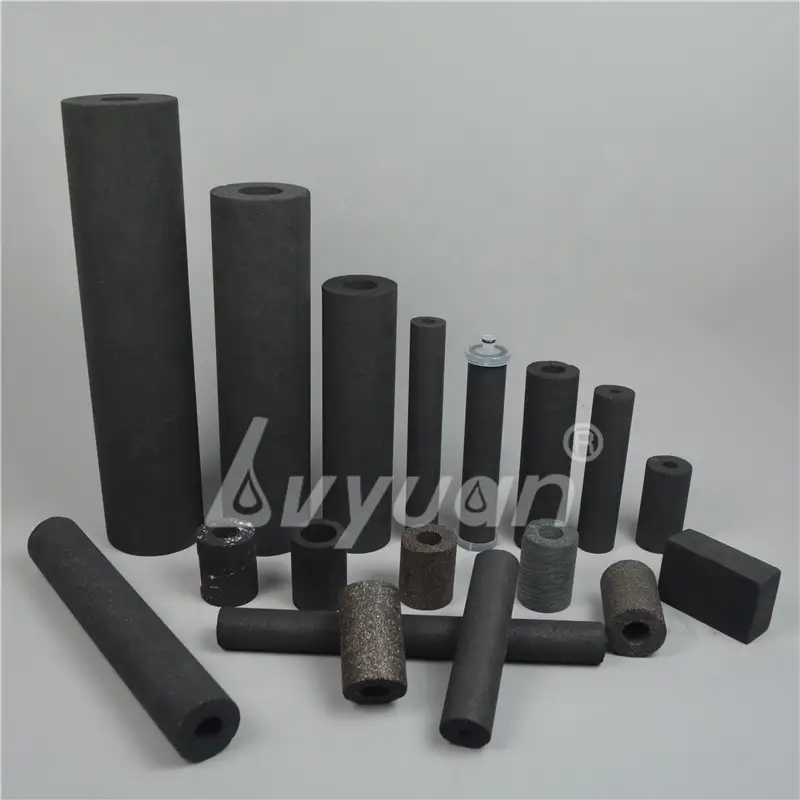

Customized Dimension Activated Carbon Block Filter Cartridge for Water Air Purification

LVYUAN can custom-make industry-standard sized sintered carbon blocks Filter Element to suit the requirements of OEMs worldwide.

We use the world's advanced technology of sintering molding and SGS compliant raw materials and the finest grades of activated carbon to make CTO carbon block filter cartridges. Sintered CTO carbon block filter cartridges have strong adsorption ability and good rigid structure.

Sintered carbon block filter can remove chlrine, bad taste and odor, choramines, fine sediment, organic chemicals with high filtration efficiency. It can deliver superior performance to a variety of water and gas purification applications.

Specification
Name
Sintered / Compressed Activated Carbon Block Filter Cartridge
Filter Media
Activated carbon, (other anti-scale, heavy metal removal material available for option.)
Material
Coconut shell, Coal carbon
Iodine value
600 to 1500 available
Filtration rate
1um, 3um, 5um, 10um, 20um, 30um, 50um, 80um, 100um, 120um.
Dimension
can be custom-made according to customer's requirement
Length
5, 10, 20, 30, 40 inch, OEM
Outer diameter
50, 60, 70, 80mm, OEM
End cap
DOE, M20, M30,M36, M42, 215, 222, 226, OEM
Gasket/Oring material
Silicone, EPDM, NBR, Viton etc
Netting material
Polypropylene
Operating temperature
≤60ºC
Maximum operating pressure
10 bar
Features

1. High flow rate and low drop-out, high filter efficiency and longer service life.
2. Sintered carbon filters have very large filtration area and super strong adsorption.
3. Sintered carbon cartridges have many porous and good consistency of performance.
4. Effectively remove chlorinated compounds, organic matter, bad smell, colors, Vocs and THMS.
5. SGS approved high-quality coconut shell & high iodine value activated carbon materials.

Application

1. Air Purifier/Purification
2. Water Purification
3. Drinking Water
4. Plating Industry
5. Pre RO Water Filtration
6. Industry Water Treatment
7. Food & Beverage Industry
