Lvyuan Filter-Industrial Water Filter Cartridge & Housing Manufacturer Since 2009.

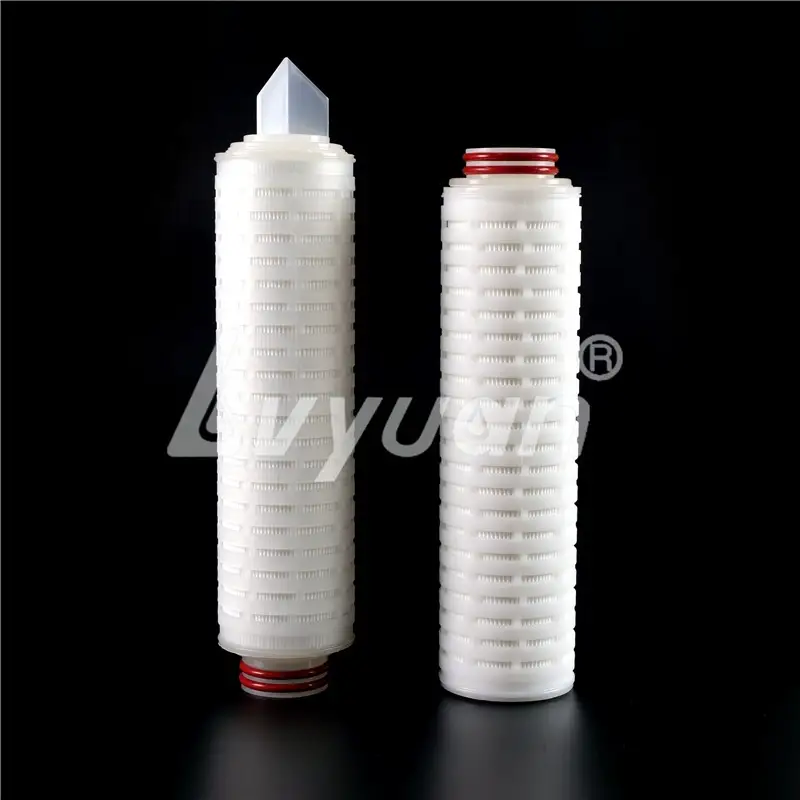

Customized size filter cartridge pleating for Water Sterile Filtration 1
Customized size filter cartridge pleating for Water Sterile Filtration 2
Customized size filter cartridge pleating for Water Sterile Filtration 3
Customized size filter cartridge pleating for Water Sterile Filtration 4
Customized size filter cartridge pleating for Water Sterile Filtration 5
Customized size filter cartridge pleating for Water Sterile Filtration 6
Customized size filter cartridge pleating for Water Sterile Filtration 1
Customized size filter cartridge pleating for Water Sterile Filtration 2
Customized size filter cartridge pleating for Water Sterile Filtration 3
Customized size filter cartridge pleating for Water Sterile Filtration 4
Customized size filter cartridge pleating for Water Sterile Filtration 5
Customized size filter cartridge pleating for Water Sterile Filtration 6

Customized size filter cartridge pleating for Water Sterile Filtration

    oops...!

    no product data.

    Go to homepage
    Overview
    Quick Details
    Applicable Industries:
    Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
    After Warranty Service:
    Online support
    Local Service Location:
    none
    Showroom Location:
    none
    Video outgoing-inspection:
    Provided
    Machinery Test Report:
    Provided
    Marketing Type:
    Ordinary Product
    Warranty of core components:
    1 Year
    Core Components:
    Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC
    Place of Origin:
    Guangdong, China
    Brand Name:
    OEM/Lvyuan
    Material:
    PP/PE
    Weight:
    0.5
    Size:
    Customized
    Power:
    0
    Warranty:
    3 months
    After-sales Service Provided:
    Online support
    Name:
    filter cartridge pleating
    Filter membrane material:
    PP/PVDF/PTFE/PES/Nylon
    Length:
    5 / 10 / 20 / 30 / 40 / 50 / 60 inch
    Conector:
    Fin/222/226/215/DOE/Thread
    Micron:
    0.22/0.5/1/3/5/10/25/50/75/100/150
    Sealing method:
    Hot melting welding
    Diameter:
    70mm/OEM
    Inner Core:
    PP/SS/OEM
    MOQ:
    Currently no limited
    Supply Ability
    Supply Ability:
    5000 Piece/Pieces per Week

    Customized size filter cartridge pleating for Water Sterile Filtration

    Product Description
    Customized size filter cartridge pleating for Water Sterile Filtration 7

    Product Name
    Water treatment plant RO pleated filter 5 microns PP cartridge water filter with 10 20 30 40 inch length
    Filtration media
    PP/PTFE/PES/PVDF/Nylon
    Support material
    Polypropylene
    Core & Structural components
    Polypropylene
    Inner core
    PP/Stainless steel
    Packing method
    Polybag/Vacuum
    Filtration precision
    0.1μm, 0.2μm, 0.45μm,  0.65μm,0.8μm,1μm,2μm,3μm,5μm,10μm,20μm,25μm,30μm,50μm
    Length
    2.5", 5". 10", 20", 30", 40", 50", 60", OEM
    Adaptor
    215/222/226/Fin/Flat/Thread/OEM
    Sealing method
    Hot melting welding
    Sealing gasket & O-ring material
    Silicone rubber; Nitrile butadiene rubber, EPDM, Fluorine rubber.
    Effect filtration area
    ≥0.6m²
    Filter cartridge diameter
    69mm
    Max. working temperature
    PP: 88℃,0.27Mpa; PTFE: 80℃, 0.173Mpa ;PES: 85℃, 0.28Mpa
    PVDF: 80℃, 0.173Mpa;Nylon: 49℃, 0.21Mpa
    Max. positive differential pressure
    0.42Mpa (25℃)
    Max. back pressure differential pressure
    0.28Mpa (25℃)
    Sterilization conditions
    121℃ 30min
    Applications
    Chemical industry; Organic solvents; Various of alcohols; Chemical reagents filtration; Sterile tank breathing apparatus; Pharmaceutical industry; Food industry; Electronic industry; RO water treatment; Medical liquid filtration;
    Customized size filter cartridge pleating for Water Sterile Filtration 9

    PP melt blown water filter cartridge

    Polypropylene melt blown filter cartridge or PP spun water filter, PP filter, PP filter cartridge is the most widely used filtration consumable products in domestic and industrial water treatment systems.
    PP melt blown filter cartridges (PPF) are made of 100% pure polypropylene fiber, providing broad wide chemical compatibility.
    Melt Blown sediment filter cartridge has strong pollutants holding capacity.

    Polypropylene microporous membrane filter

    PP pleated filter cartridge deliver high efficiency and consistent filtration of fluids in a wide range of critical applications. They are constructed of pleated membrane filter media that provides removal of particles from 0.1 to 60um, the pore size is not affected by the vibration of
    feeding pressure, due to its unique low differential pressure, high flow volume, excellent filtration microns. The high surface area ensures long service life and low initial pressure drops.


    Customized size filter cartridge pleating for Water Sterile Filtration 11
    Detailed Images
    Customized size filter cartridge pleating for Water Sterile Filtration 13
    Groove surface PP sediment filter cartridges.
    Customized size filter cartridge pleating for Water Sterile Filtration 15
    Flat surface PP sediment filter cartridge
    Customized size filter cartridge pleating for Water Sterile Filtration 17
    215 222 226 Flat/Fin end cap PP filter, code 0 3 6 7 8 9 available.
    Customized size filter cartridge pleating for Water Sterile Filtration 19


    DOE opened pleated filter


    Customized size filter cartridge pleating for Water Sterile Filtration 21


    OEM customized size filter

    Customized size filter cartridge pleating for Water Sterile Filtration 23


    Different end caps pleated filter

    Customized size filter cartridge pleating for Water Sterile Filtration 25

    PP melt blown filter cartridge with 1 2 3 layers for option
    Customized size filter cartridge pleating for Water Sterile Filtration 27

    PP shell Polypropylene melt blown filter cartridge


    Customized size filter cartridge pleating for Water Sterile Filtration 29

    Customize PP core or stainless steel shell/core pp filter cartridge

    Customized size filter cartridge pleating for Water Sterile Filtration 31
    Application
    Customized size filter cartridge pleating for Water Sterile Filtration 33

    RO WATER TREATMENT

    Customized size filter cartridge pleating for Water Sterile Filtration 35

    BOTTLED MINERAL WATER

    Customized size filter cartridge pleating for Water Sterile Filtration 37

    CHEMICAL TECHNOLOGY  FILTRATION

    Customized size filter cartridge pleating for Water Sterile Filtration 39

    BEER & BEVERAGE FILTRATION

    Customized size filter cartridge pleating for Water Sterile Filtration 41

    PETROCHMICAL INDUSTRY

    Customized size filter cartridge pleating for Water Sterile Filtration 43

    SEA DESALINATION WATER EQUIPMENT

    Packing & Delivery
    Customized size filter cartridge pleating for Water Sterile Filtration 45
    Customized size filter cartridge pleating for Water Sterile Filtration 47
    Customized size filter cartridge pleating for Water Sterile Filtration 49

    Container for shipment

    Customized size filter cartridge pleating for Water Sterile Filtration 51

    Container for shipment

    Certifications
    Customized size filter cartridge pleating for Water Sterile Filtration 53
    Customized size filter cartridge pleating for Water Sterile Filtration 55
    Customized size filter cartridge pleating for Water Sterile Filtration 57
    Our Company
    Customized size filter cartridge pleating for Water Sterile Filtration 59
    Customized size filter cartridge pleating for Water Sterile Filtration 61


    Let's Make Custom Water Filter Cartridge For You Now.

    .
    The product helps cut labor costs. It greatly reduces the need for more workers, which will help save expenditures for business owners. It offers excellent filtration and good thermal stability. It significantly reduces waste in production because of how accurately this product can operate. This will eventually help reduce production costs. It offers excellent filtration and good thermal stability.
